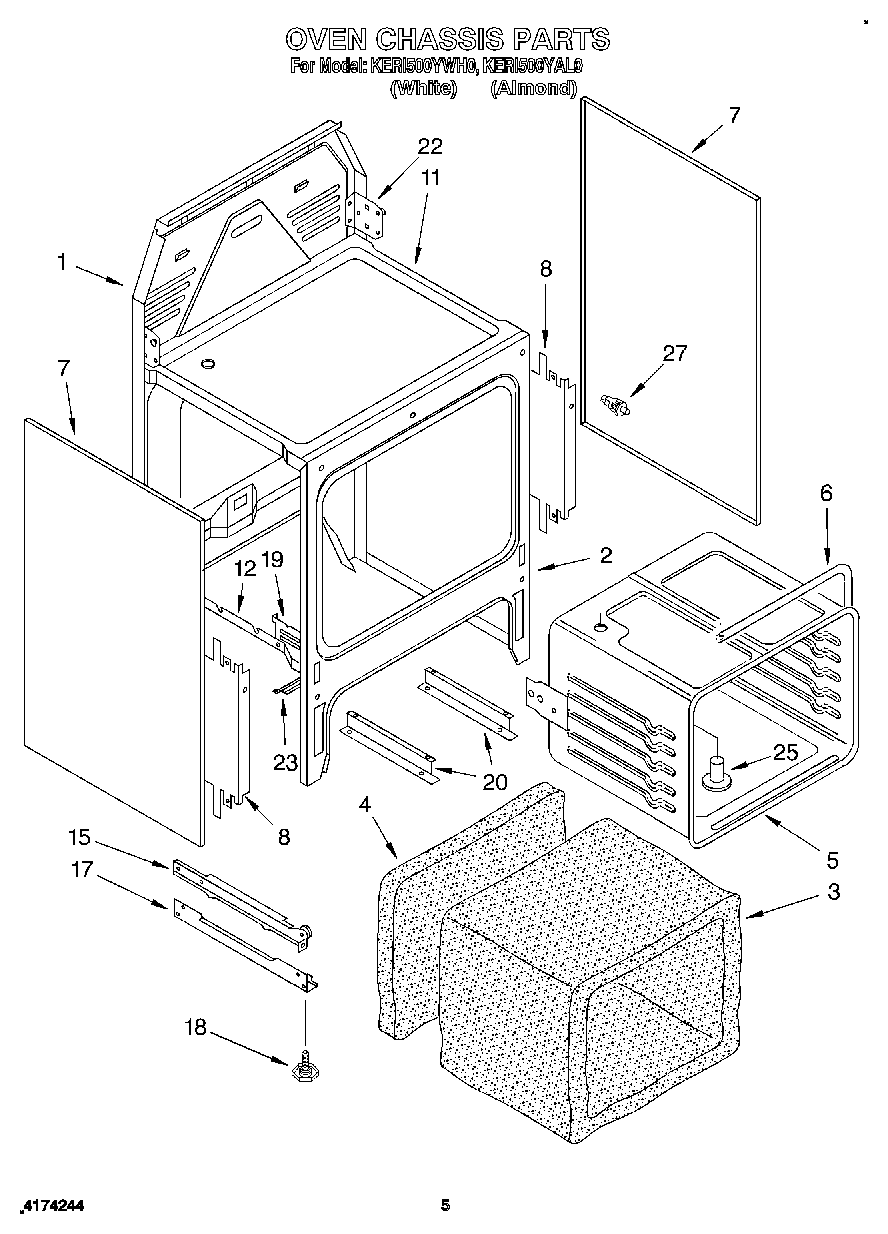

KERI500YAL0 04 – OVEN CHASSIS

Products

PositionProduct
1Main Chassis, Back
1340184 Whirlpool Screw
2Chassis, Front
3Insulation, Wrap
4Insulation, Rear
5Oven Liner
6Gasket Oven
7Oven , Side L or R (White)
7Oven , Side L or R (Almond)
8Shield, Insulation
11Burner Box
11Screw, (2)
12Oven Bottom
15Drawer Rail, Left
15Rail, Drawer (Right)
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Screw (2) 8 x 3/8
19Hinge, Receiver (2)
20Support Rail, Pan
22Hinge, Cktp.-Left
22Hinge, Cktp.-Right
23Bracket, Power Cord
23WP4159387 Whirlpool Compactor Screw
25Vent Tube
278273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
27Switch, Door
27W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
