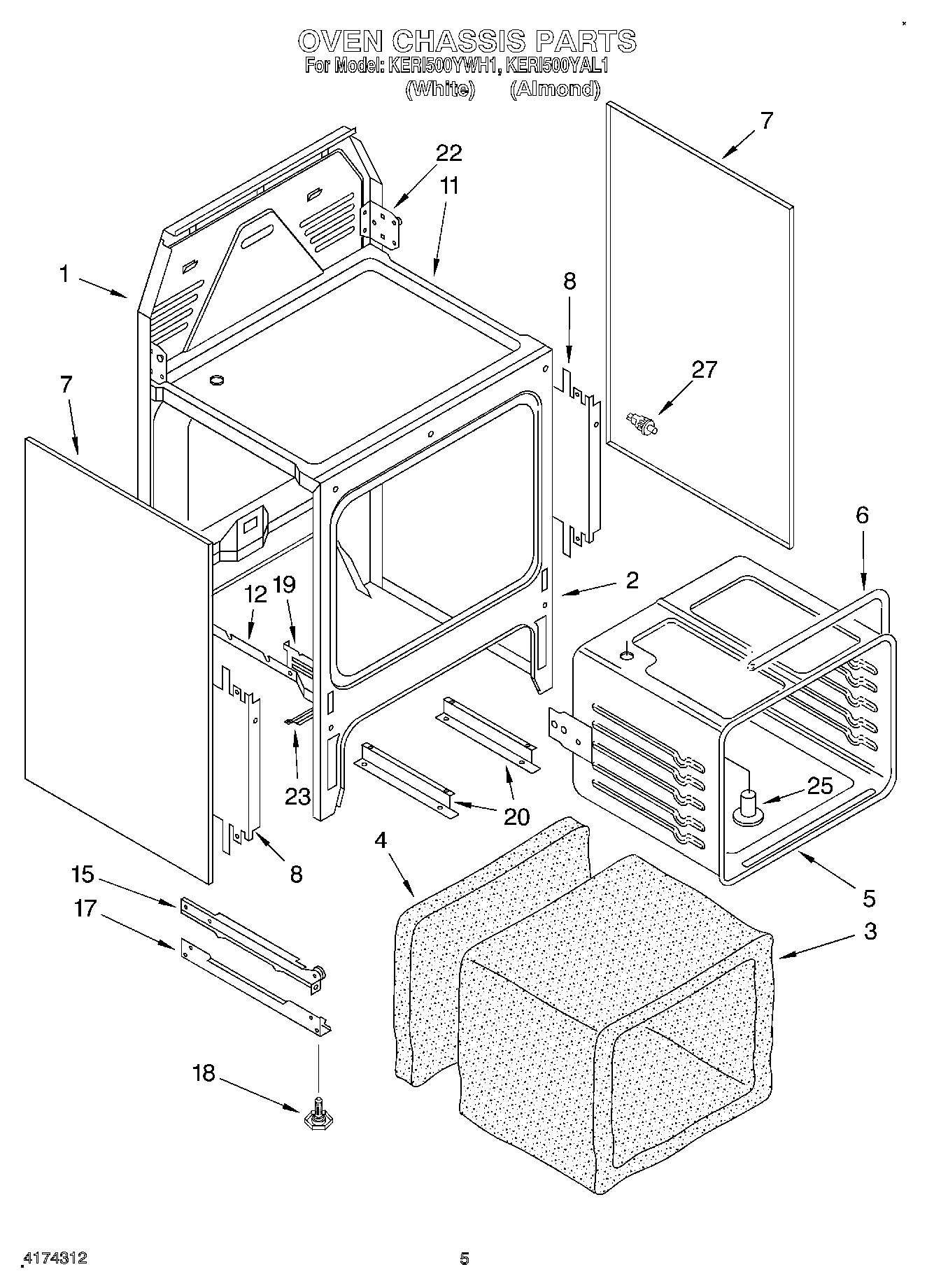

KERI500YAL1 04 – OVEN CHASSIS

Products

Position	Product
1	Main Chassis, Back
1	340184 Whirlpool Screw
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket Oven
7	Oven , Side L or R (White)
7	Oven , Side L or R (Almond)
8	Shield, Insulation
11	Screw, (2)
11	Washer
11	Burner Box
12	Oven Bottom
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Receiver (2)
19	Screw (2) 8 x 3/8
20	Support Rail, Pan
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Bracket, Power Cord
23	WP4159387 Whirlpool Compactor Screw
25	Vent Tube
27	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
27	Switch, Door
27	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
