KERI500YAL2 01 – COOKTOP, LITERATURE

KERI500YAL2 01 – COOKTOP, LITERATURE

Written by

in

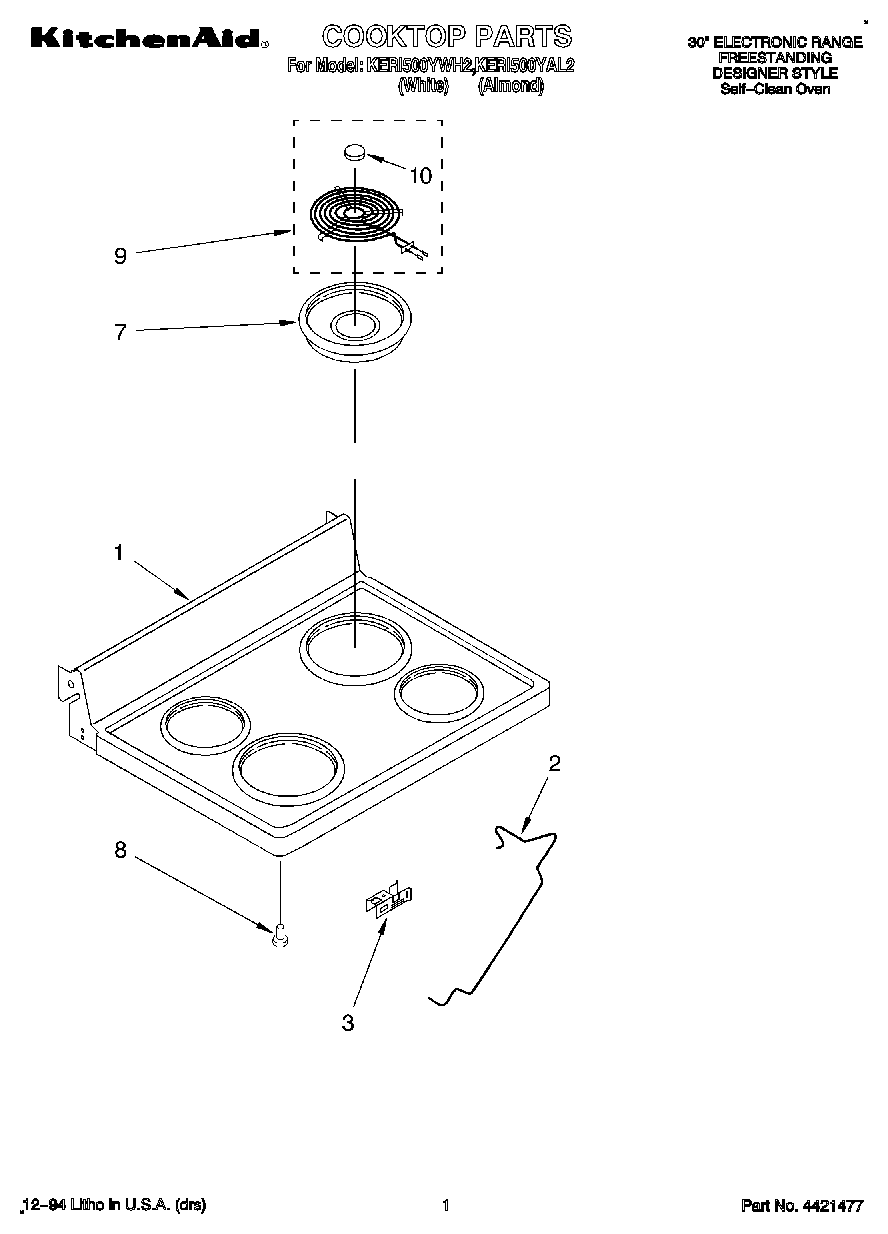

KERI500YAL2 01 – COOKTOP, LITERATURE

Products

PositionProduct
WPL LIT9780932
Wiring Diagram
Instructions, Installation
Guide, Auto Set
Tech Sheet-K/A
WPL LIT9780944
WPL LIT9780689
1Cooktop, Coil (White)
1Cooktop, Coil (Almond)
2Cooktop Rod
3WP313808 Whirlpool Screw
3Clip, Receptacle
7Drip Bowl (8“ Almond Model)
7Drip Bowl (6“ Almond Model)
7Drip Bowl (8“ White Model)
7Drip Bowl (6“ White Model)
8238614 Whirlpool Bumper Hinge
9WPW10259865 Whirlpool Range 8" Surface Element
9WPW10259868 Whirlpool Surface Heating Element
10Medallion, (4)
