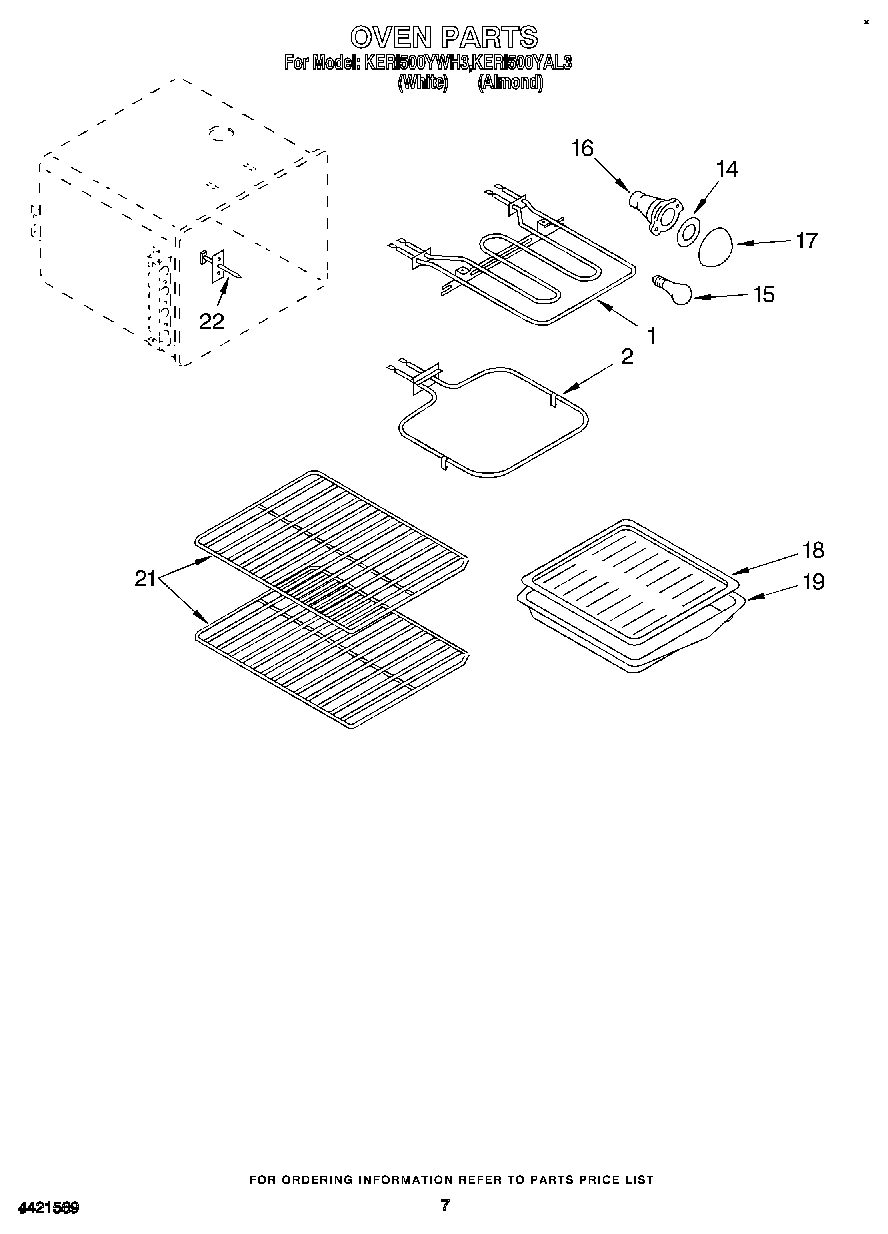

KERI500YAL3 05 – OVEN

Written by

Products

Position	Product
1	Element, Broil
2	ELMNT-BAKE
14	WP3184533 Whirlpool Range Light Lens Gasket
15	RANGE ONLY 40W 120V APPL BULB
16	W11594027 Whirlpool Range Oven Light Socket
17	WP9781049 Whirlpool Light Lens
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
21	Rack, Standard
22	Sensor, Heat
22	Screw
