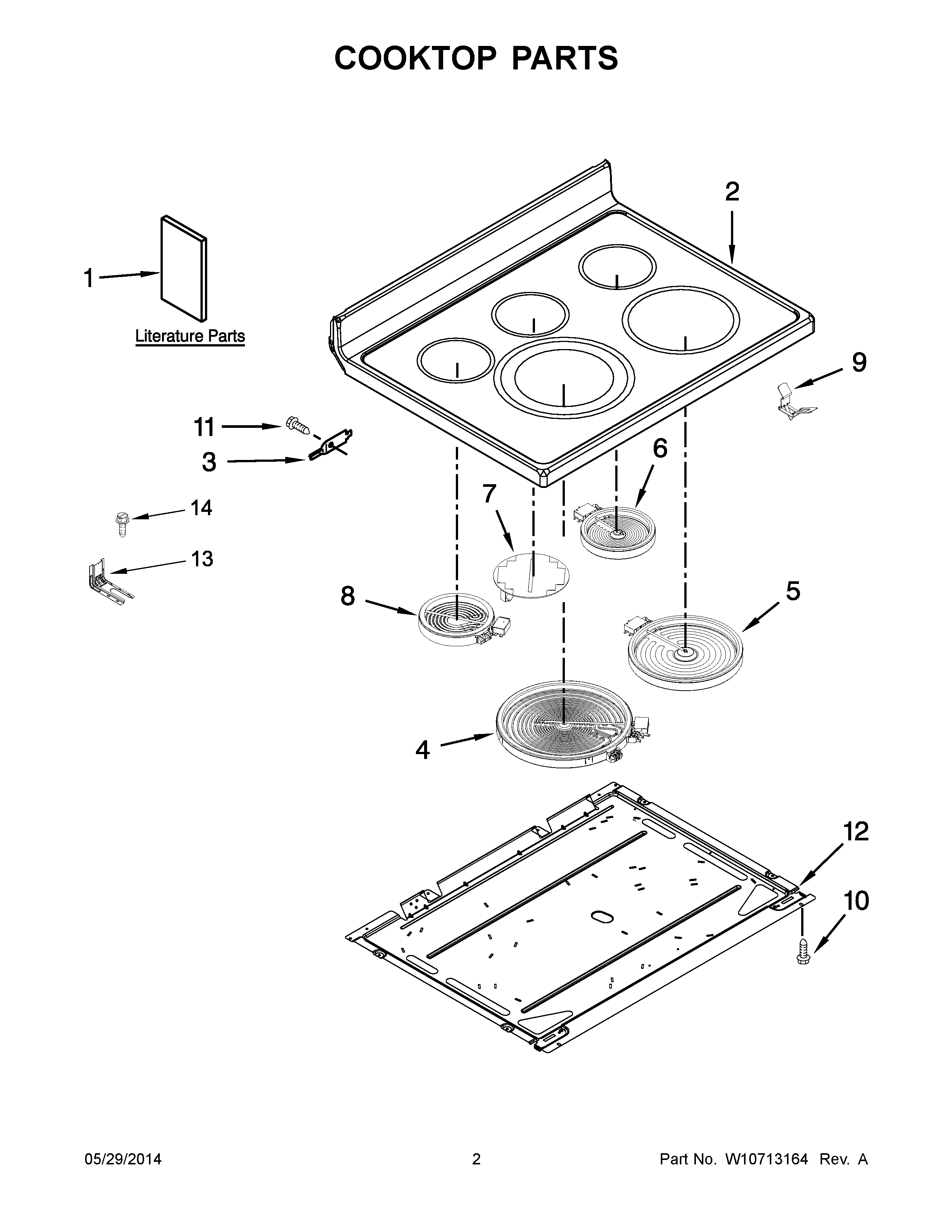

KERS202BSS1 02 – COOKTOP PARTS

KERS202BSS1 02 – COOKTOP PARTS

Written by

in

KERS202BSS1 02 – COOKTOP PARTS

Products

PositionProduct
NIW10629296 Whirlpool Wire Harness
NIW11212183 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
NIW11134550 Whirlpool Wire Harness
NIW10349716 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
1MANUAL, OWNERS
1QUICK START GUIDE
2COOKTOP (BLACK)
3WP3195060 Whirlpool Cooktop Pin
4W10823727 Whirlpool Stove Right Front Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7W11047668 Whirlpool Surface Element
8WPW10342780 Whirlpool Surface Element
9WPW10225448 Whirlpool Spring Assembly
10SCREW
113196172 Whirlpool Oven Screw
12PAN
13W11447673 Whirlpool Range Tip Anchor
14SCREW, ANTI-TIP KIT
