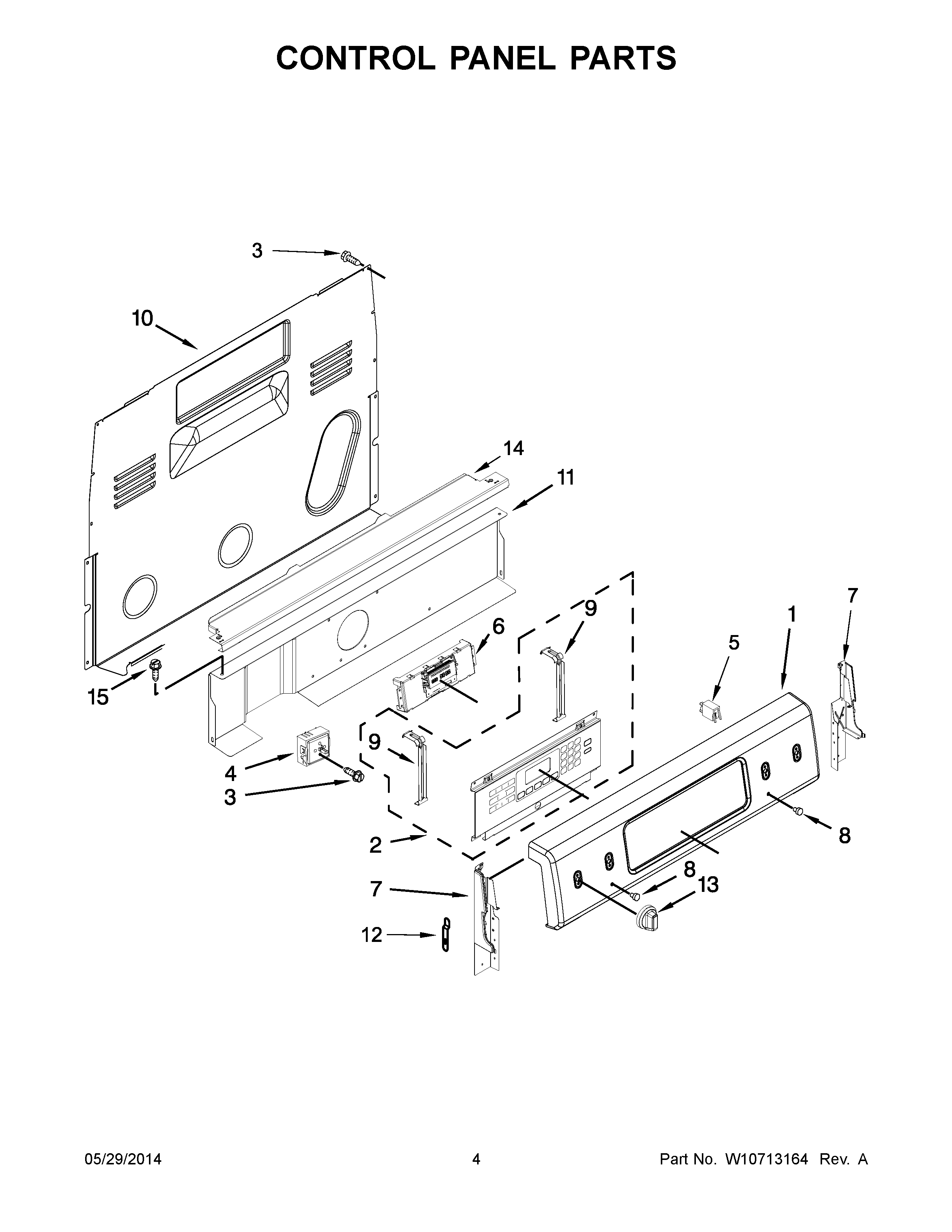

KERS202BSS1 03 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	PANEL, BACKGUARD (STAINLESS)
2	ASSEMBLY, ACTIVE OVERLAY
3	SCREW
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WPW10411934 Whirlpool Infinite Switch
4	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	WPW10340694-includeCORE Whirlpool WPW10340694 Dishwasher Electronic Control Board + Core
7	W11219664 Whirlpool Endcap Panel
7	W11219665 Whirlpool Panel Endcap
8	WP3196068 Whirlpool Light Lens
9	BRACKET, CONTROL
10	WP8272473 Whirlpool Rear Cover
11	W10134247 Whirlpool Heat Shield
12	3196200 Whirlpool Clip
13	W10854052 Whirlpool Knob
14	W10525121 Whirlpool Control Bracket
