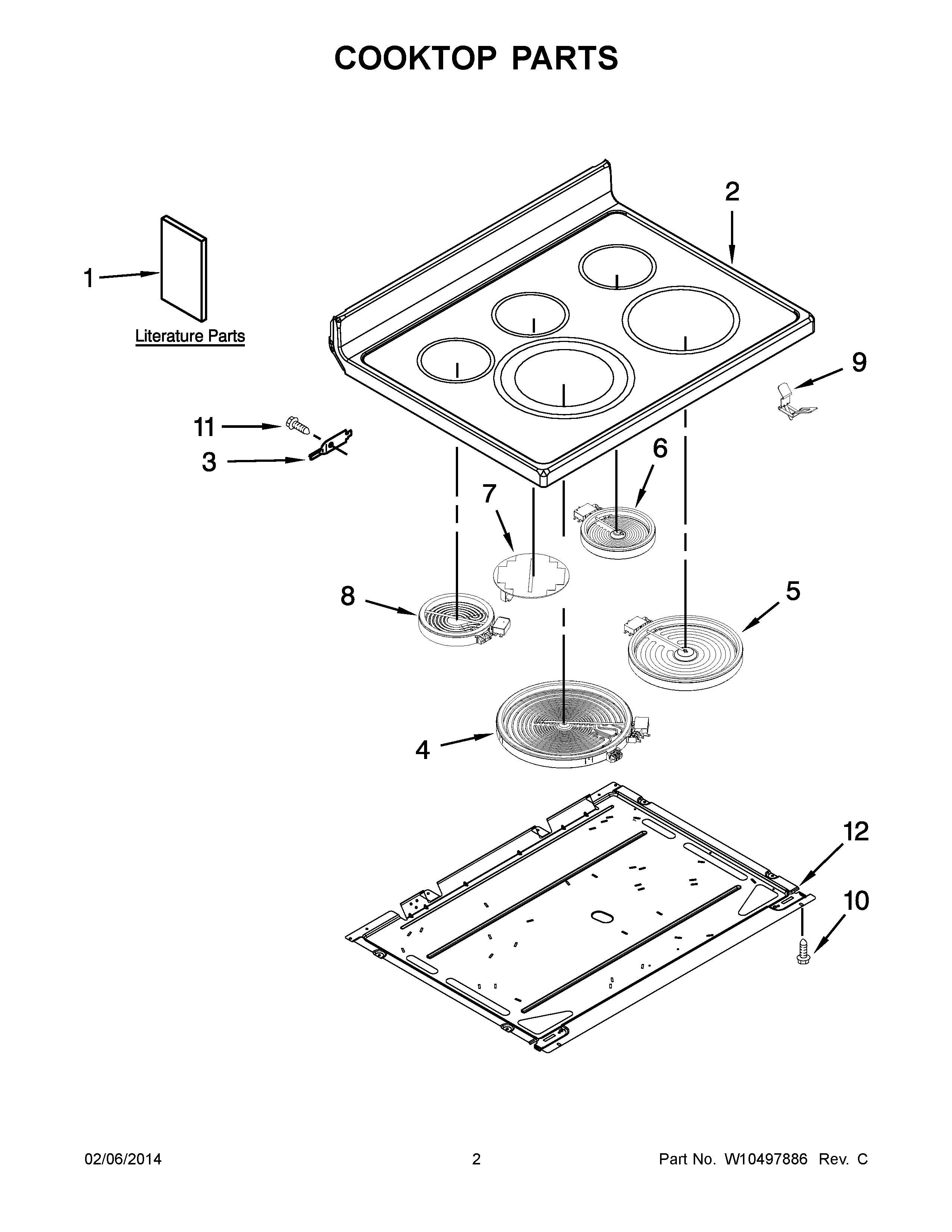

KERS202BWH0 02 – COOKTOP PARTS

KERS202BWH0 02 – COOKTOP PARTS

Written by

in

KERS202BWH0 02 – COOKTOP PARTS

Products

PositionProduct
1MANUAL, OWNERS
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
1QUICK START GUIDE
1SAFER COOKING TIPS (ENGLISH
2COOKTOP (BLACK)
2W10524411 Whirlpool Cooktop
3WP3195060 Whirlpool Cooktop Pin
4W10823727 Whirlpool Stove Right Front Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7W11047668 Whirlpool Surface Element
8WPW10342780 Whirlpool Surface Element
9WPW10225448 Whirlpool Spring Assembly
10SCREW
113196172 Whirlpool Oven Screw
12PAN
