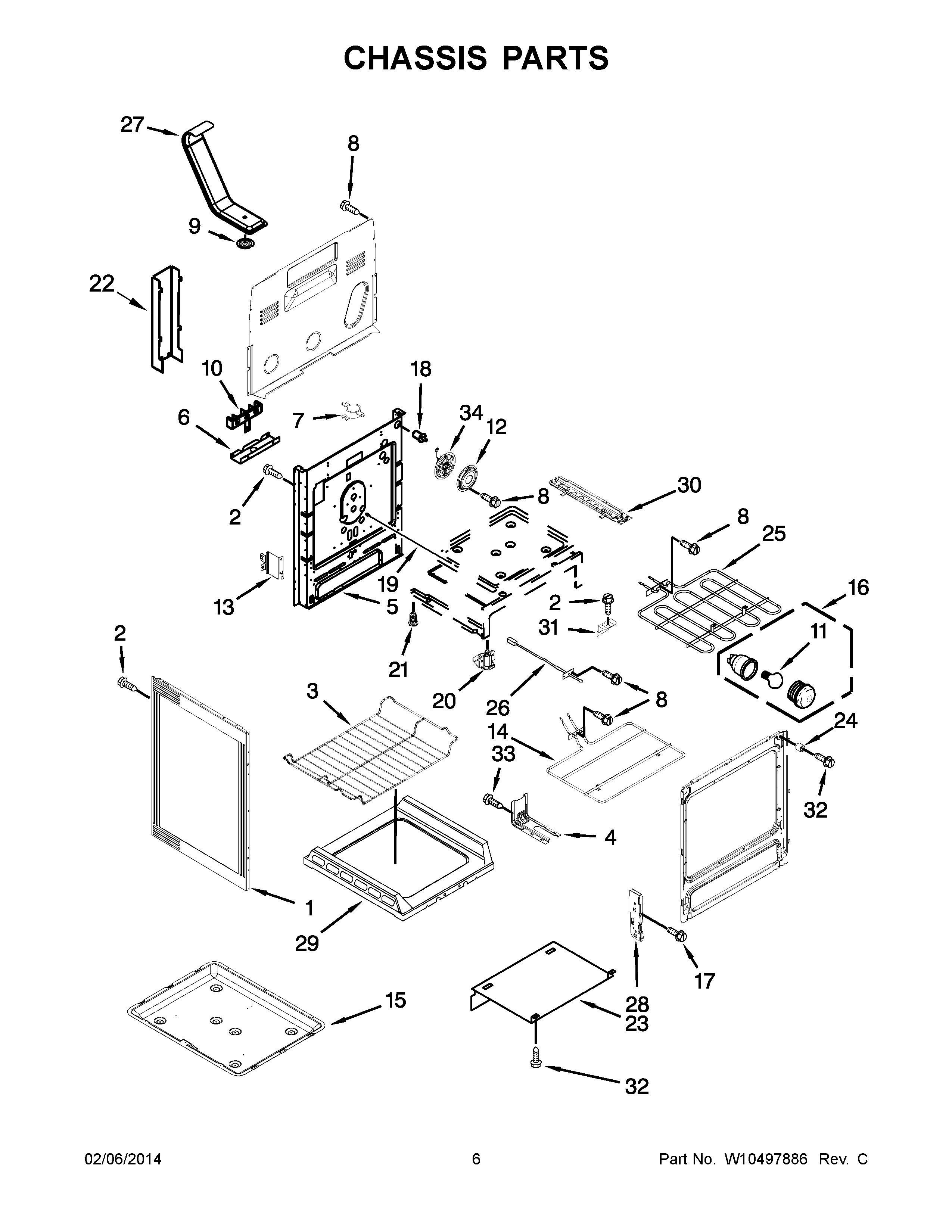

KERS202BWH0 04 – CHASSIS PARTS

Products

Position	Product
NI	WPW10225524 Whirlpool Insulation
NI	WPW10281322 Whirlpool Connector
NI	INSULATION, STRAP
NI	WPW10194393 Whirlpool Insulation
NI	WPW10225523 Whirlpool Insulation
1	W11730303 Whirlpool Side Panel
1	WPW10575396 Whirlpool Side Panel
2	3196172 Whirlpool Oven Screw
3	WPW10289145 Whirlpool Oven Rack
4	W11447673 Whirlpool Range Tip Anchor
5	BACK, MAIN
6	W11728255 Whirlpool Service Bracket
7	WP3196548 Whirlpool Thermal Fuse
8	SCREW
9	9761301 Whirlpool Oven Screen
10	WPW10245259 Whirlpool Terminal Block
11	RANGE ONLY 40W 120V APPL BULB
12	WPW10346154 Whirlpool Cover Assembly
13	W10273002 Whirlpool Support Bracket
14	W10779716 Whirlpool Oven Bake Element
15	W11379357 Whirlpool Overflow Pan
16	W10777162 Whirlpool Screw
17	WP9757262 Whirlpool Light Switch
18	W11370463 Whirlpool Door Rod Assembly
19	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
20	WPW10058460 Whirlpool Appliance Levelling Leg
21	WPW10326122 Whirlpool Black Cover
22	W10726740 Whirlpool Heat Shield
23	W10877054 Whirlpool Spacer Assembly
24	W11321472 Whirlpool Broil Element
25	WPW10181986 Whirlpool Oven Sensor
26	WPW10134285 Whirlpool Vent Tube
27	W10647259 Whirlpool Hinge Receiver
28	W10789865 Whirlpool Oven Bottom
29	WPW10306546 Whirlpool Base Rail
31	W10035900 Whirlpool Support Bracket
32	W11169708 Whirlpool Screw
33	SCREW, ANTI-TIP KIT
34	WPW10389555 Whirlpool Convection Fan
