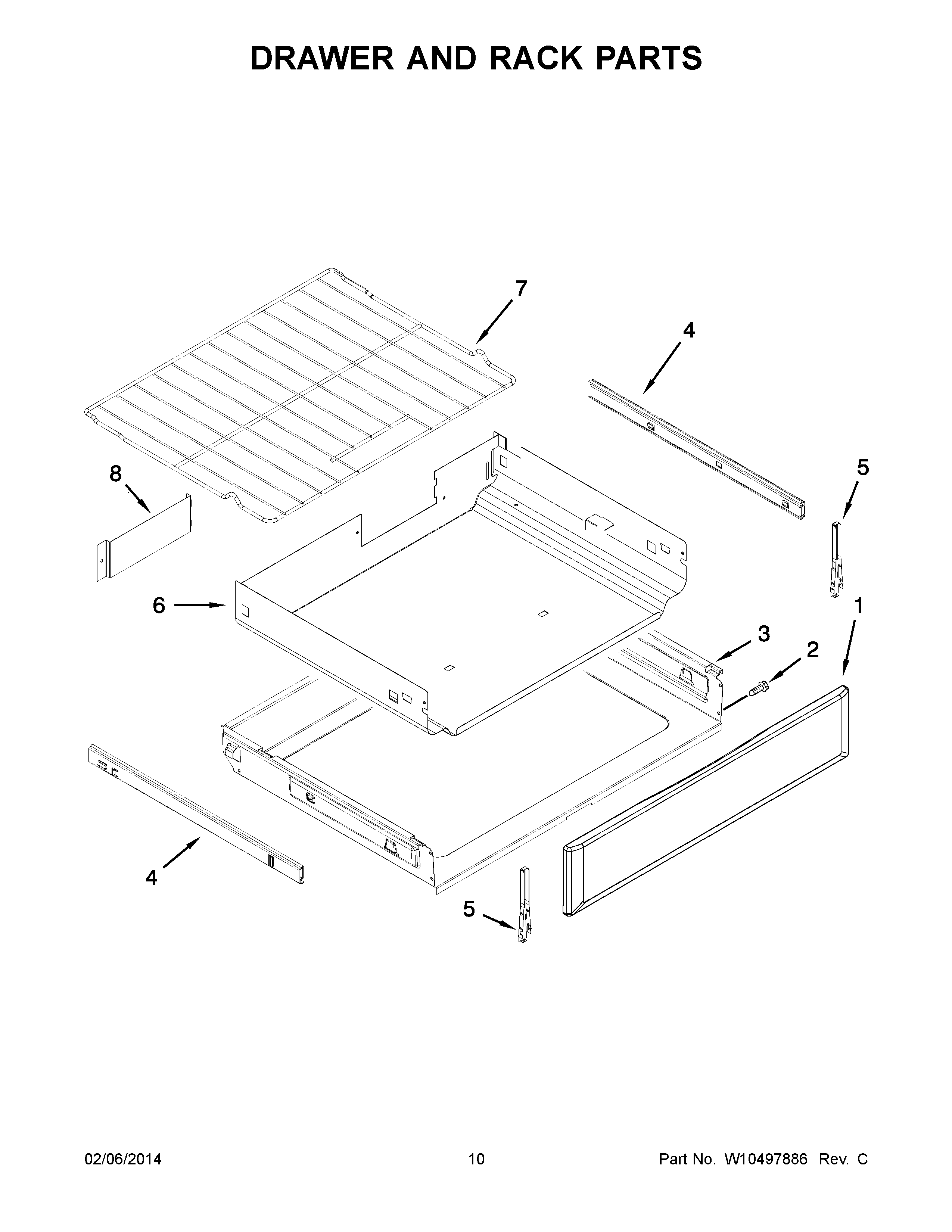

KERS202BWH0 06 – DRAWER AND RACK PARTS

Products

PositionProduct
1W11297555 Whirlpool Drawer Panel
1W11297552 Whirlpool Drawer Panel
1W11280103 Whirlpool Drawer Panel
2WP3196557 Whirlpool Screw
3W10813962 Whirlpool Utility Drawer
4WPW10441804 Whirlpool Drawer Slide
4WPW10441805 Whirlpool Slide Drawer
5WPW10318027 Whirlpool Mounting Bracket
6W10634260 Whirlpool Utility Drawer
7W10460125 Whirlpool Oven Rack
8W10325438 Whirlpool Cover Panel
