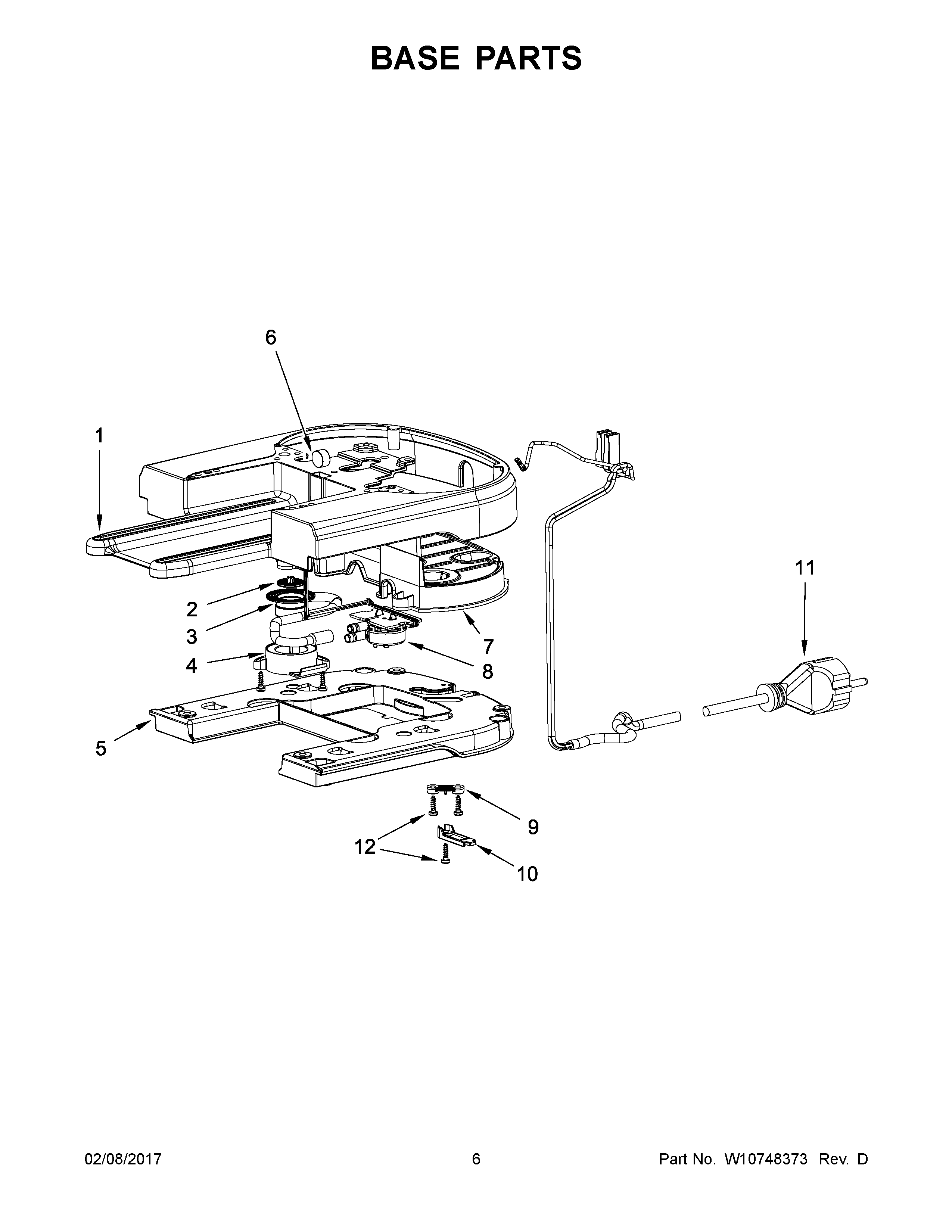

KES0503ER0 04 – BASE PARTSadmin2025-04-26T11:34:53+00:00KES0503ER0 04 – BASE PARTS
Products
| Position | Product |
|---|
| 1 | BASE (ALMOND CREME) |
| 1G | BASE (SLATE) |
| 1F | BASE (SUGAR PEARL) |
| 1E | BASE (ONYX BLACK) |
| 1D | BASE (MEDALLION SILVER) |
| 1C | BASE (FROSTED PEARL) |
| 1B | BASE (EMPIRE RED) |
| 1A | BASE (CANDY APPLE) |
| 2 | FILTER |
| 3 | W10725207 Whirlpool Connector |
| 4 | HOLDER, LP VALVE |
| 5 | BASE, BOTTOM (WITH RUBBER BASE) |
| 6 | MAGNET, MU |
| 7 | SUPPORT, BASE TANK |
| 8 | METER, FLOW ASSEMBLY |
| 9 | CLIP, CABLE (110V) |
| 9A | CLIP, CABLE (220V) |
| 10 | CABLE, LOCKING |
| 11D | CORD, POWER (SWITZERLAND) |
| 11C | CORD, POWER (AUSTRALIA) |
| 11B | CORD, POWER (EUROPE) |
| 11A | CORD, POWER (UNITED KINGDOM) |
| 11 | CORD, POWER (UNITED STATES) |
| 12 | SCREW |
