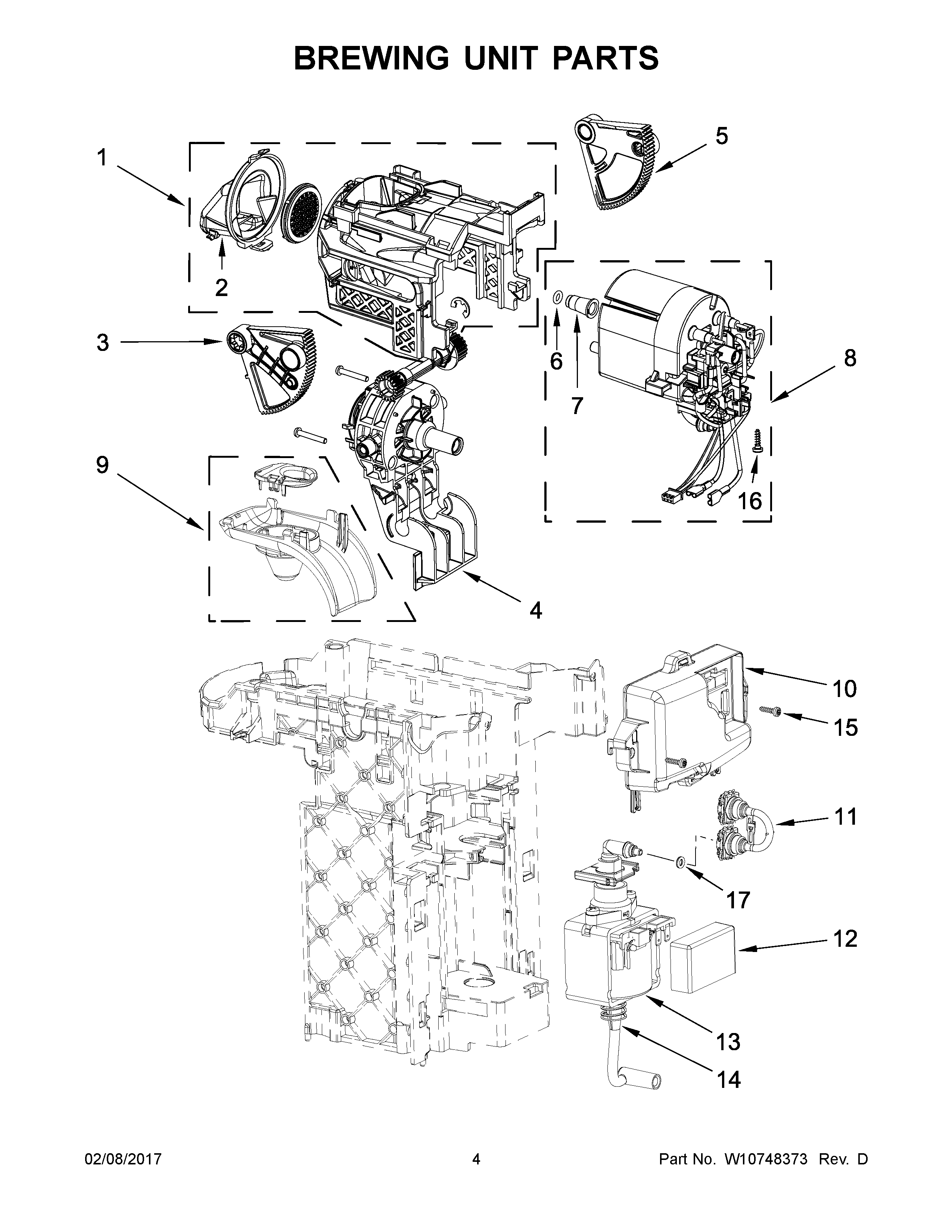

KES0503FP0 03 – BREWING UNIT PARTSadmin2025-04-26T11:34:44+00:00KES0503FP0 03 – BREWING UNIT PARTS
Products
| Position | Product |
|---|
| 1 | HOUSING, BREWING UNIT |
| 2 | COVER, STEAM |
| 3 | LEVER, GEAR (RIGHT) |
| 4 | CAGE, CAPSULE |
| 4A | CAGE, CAPSULE (SWITZERLAND) |
| 5 | W10724743 Whirlpool Lever |
| 6 | O-RING |
| 7 | SLEEVE, TB (MOTOR) |
| 8A | TB MOTOR ASSEMBLY (EUROPE/UNITED KINGDOM/AUSTRALIA/SWITZERLAND) |
| 8 | TB MOTOR ASSEMBLY (UNITED STATES) |
| 9 | W10725142 Whirlpool Stop |
| 10 | CONTROL, ELECTRONIC (UNITED STATES) |
| 10A | WPW10724748 Whirlpool Electronic Control |
| 11 | VALVE, HIGH PRESSURE ASSEMBLY |
| 12 | PUMP, ISOLATION |
| 13 | PUMP ASSEMBLY (UNITED STATES) |
| 13A | PUMP ASSEMBLY (EUROPE/UNITED KINGDOM/AUSTRALIA/SWITZERLAND) |
| 14 | PUMP, LOW PRESSURE TUBE |
| 15 | SCREW |
| 16 | SCREW |
| 17 | O-RING |
