KES0503SR0 04 – BASE PARTS

KES0503SR0 04 – BASE PARTS

Written by

in

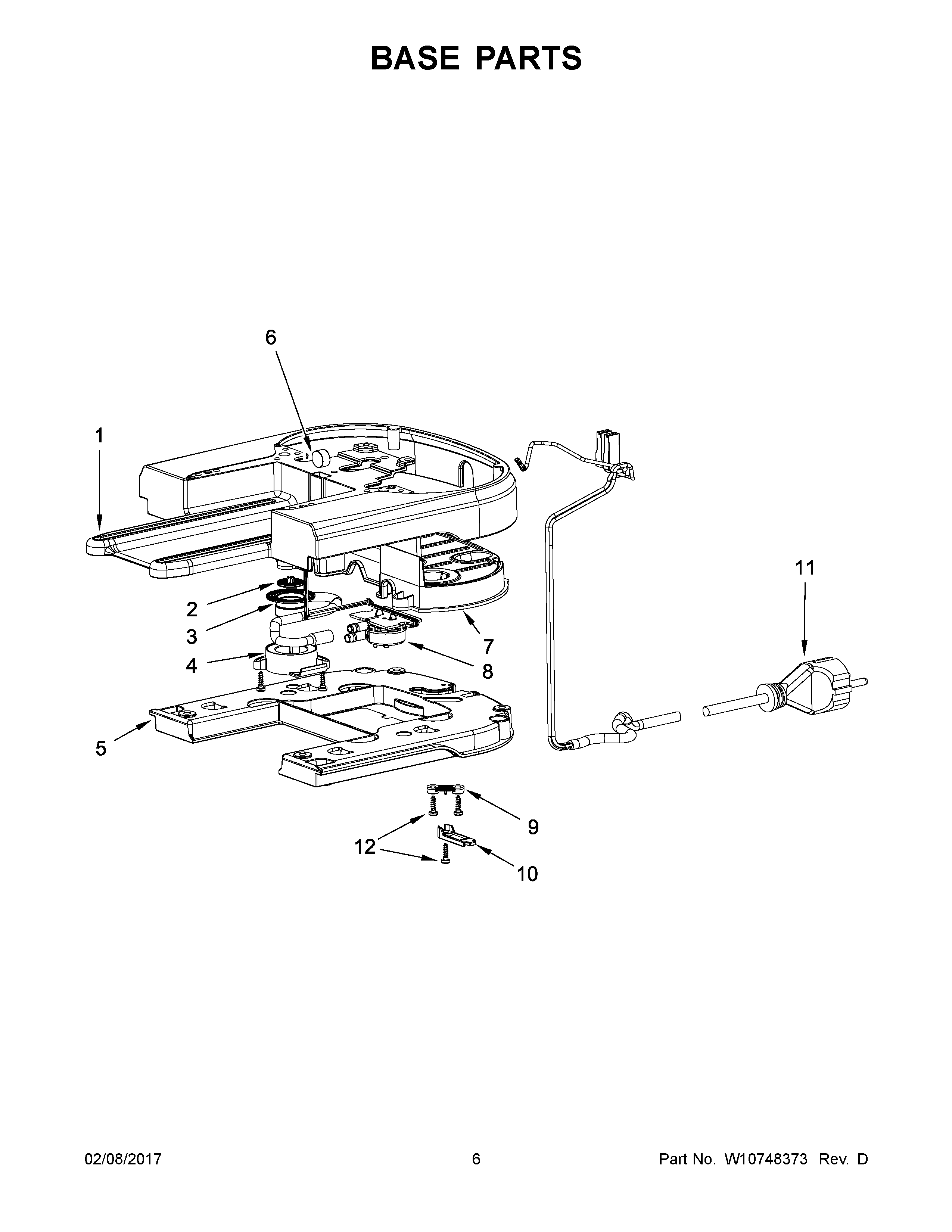

KES0503SR0 04 – BASE PARTS

Products

PositionProduct
1BASE (ALMOND CREME)
1GBASE (SLATE)
1FBASE (SUGAR PEARL)
1EBASE (ONYX BLACK)
1DBASE (MEDALLION SILVER)
1CBASE (FROSTED PEARL)
1BBASE (EMPIRE RED)
1ABASE (CANDY APPLE)
2FILTER
3W10725207 Whirlpool Connector
4HOLDER, LP VALVE
5BASE, BOTTOM (WITH RUBBER BASE)
6MAGNET, MU
7SUPPORT, BASE TANK
8METER, FLOW ASSEMBLY
9CLIP, CABLE (110V)
9ACLIP, CABLE (220V)
10CABLE, LOCKING
11DCORD, POWER (SWITZERLAND)
11CCORD, POWER (AUSTRALIA)
11BCORD, POWER (EUROPE)
11ACORD, POWER (UNITED KINGDOM)
11CORD, POWER (UNITED STATES)
12SCREW
