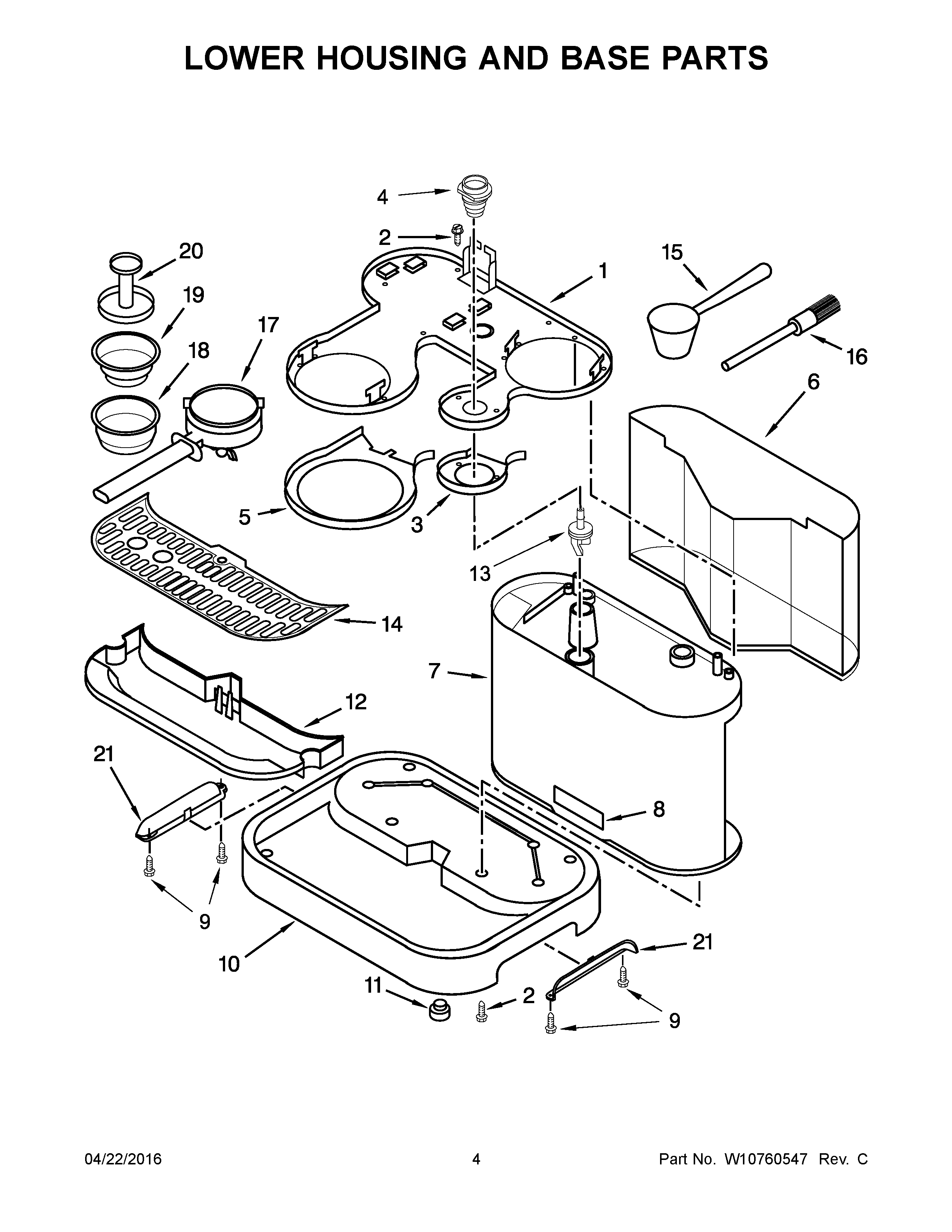

KES2102CA0 03 – LOWER HOUSING AND BASE PARTS

Products

PositionProduct
1W10756871 Whirlpool Plate
2SCREW
3TRIM, STEAM POD
4PLUG, STEAM GROUP
5TRIM, COFFEE
6W10756840 Whirlpool Tank
7EBODY, CABINET (ALMOND CREAM)
7DBODY, CABINET (CANDY APPLE)
7CBODY, CABINET (EMPIRE RED)
7BBODY, CABINET (FROSTED PEARL)
7ABODY, CABINET (MEDALLION SILVER)
7BODY, CABINET (ONYX BLACK)
8NAMEPLATE (US/AUSTRALIAN)
8ANAMEPLATE (EUROPEAN)
9SCREW
10EBASE ASSEMBLY (ALMOND CREAM)
10DBASE ASSEMBLY (CANDY APPLE)
10CBASE ASSEMBLY (EMPIRE RED)
10BBASE ASSEMBLY (FROSTED PEARL)
10ABASE ASSEMBLY (MEDALLION SILVER)
10BASE ASSEMBLY (ONYX BLACK)
11FOOT
12DRIP TRAY
13W10756802 Whirlpool Plug
14W10756835 Whirlpool Grid Assembly
15W10756688 Whirlpool Scoop
16BRUSH, CLEANING
17HOLDER, FILTER
18W10756698 Whirlpool Filter
19FILTER, 1-CUP
20W10756693 Whirlpool Tamper
21HANDLE, BASE
