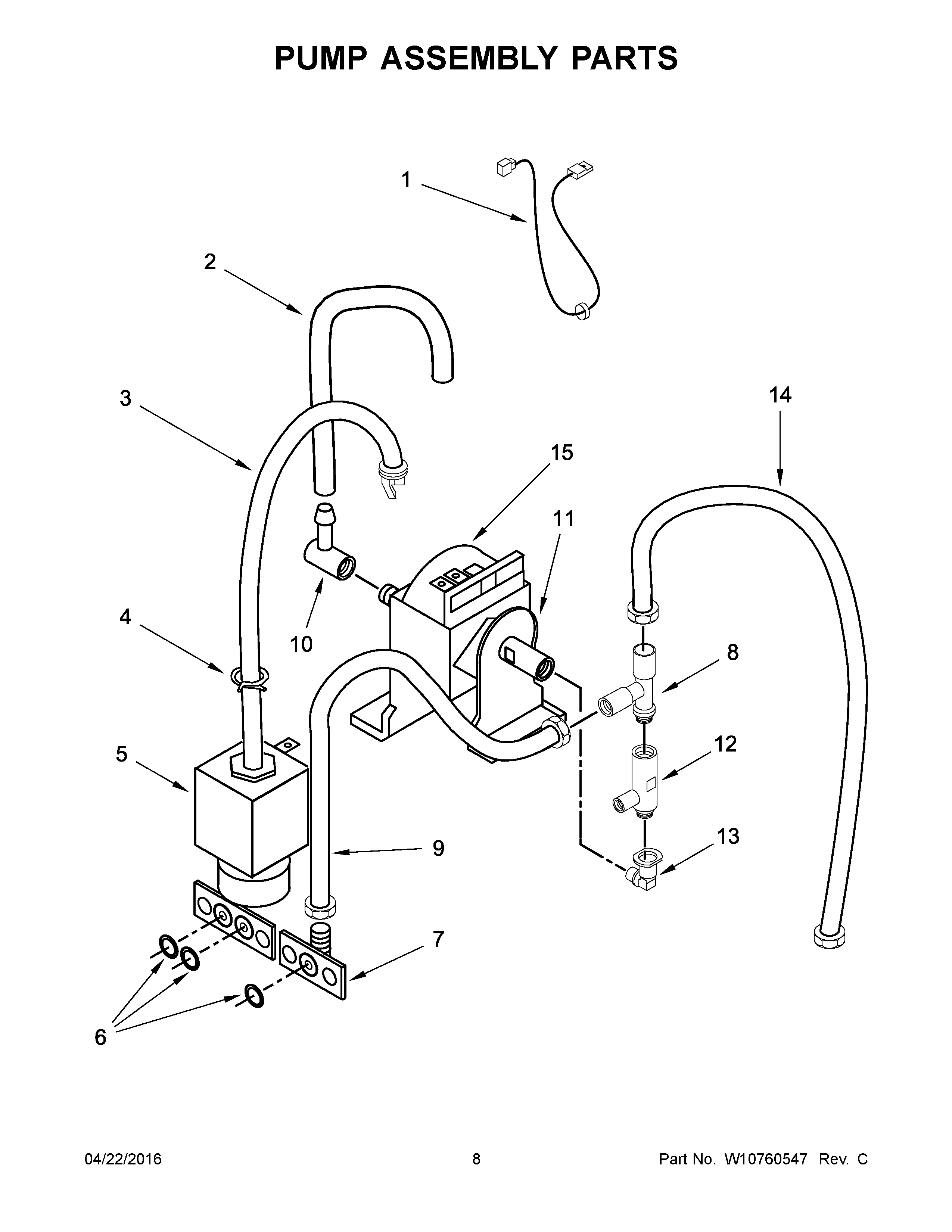

KES2102CA0 05 – PUMP ASSEMBLY PARTS

Products

PositionProduct
1FITTING, PUMP THERMOSTAT
2PIPE, SUCTION
3PIPE SL
4CLAMP, HOSE
5VALVE, 3 WAY SOLENOID (US)
5AVALVE, 3 WAY SOLENOID (EUROPEAN/AUSTRALIAN)
6W11033777 Whirlpool Gasket Assembly
7FITTING, INPUT
8PLUG, DOUBLE NICKEL
9PIPE ASSEMBLY
10CONNECTOR, SUCTION PUMP
11SUPPORT, PUMP
12VALVE, S3
13FITTING, 90 DEGREE
14PIPE ASSEMBLY, S3 VALVE TO STEAMER
15PUMP ASSEMBLY (US)
15APUMP ASSEMBLY (EUROPEAN/AUSTRALIAN)
