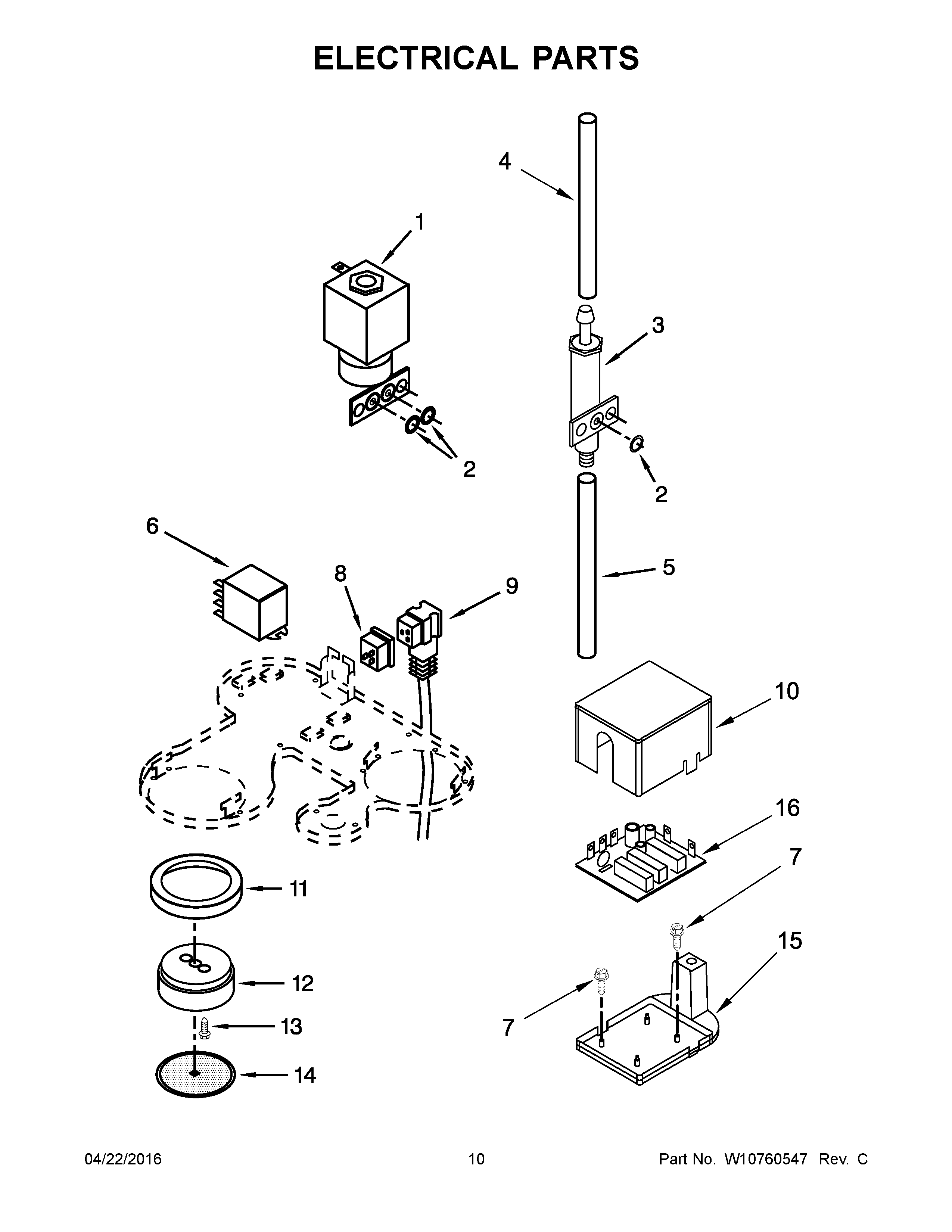

KES2102ER0 06 – ELECTRICAL PARTSadmin2025-04-26T11:37:26+00:00KES2102ER0 06 – ELECTRICAL PARTS
Products
| Position | Product |
|---|
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | JUG, MILK |
| 1A | VALVE, 2 WAY SOLENOID (EUROPEAN/AUSTRALIAN) |
| 1 | VALVE, 2 WAY SOLENOID (US) |
| 2 | W11033777 Whirlpool Gasket Assembly |
| 3 | VALVE, OVERPRESSURE STEAM |
| 4 | PIPE ASSEMBLY, STEAM OVERPRESSURE TO S3 VALVE |
| 5 | PIPE ASSEMBLY |
| 6A | RELAY (EUROPEAN/AUSTRALIAN) |
| 6 | W10756805 Whirlpool Relay Module |
| 7 | SCREW |
| 8 | PLUG, SELF LOCKING |
| 9C | CORD, POWER (BRITAIN) |
| 9B | CORD, POWER (AUSTRALIAN) |
| 9A | CORD, POWER (EUROPEAN) |
| 9 | CORD, POWER (US) |
| 10 | HOUSING, PCBA |
| 11 | W11087413 Whirlpool Gasket |
| 12 | HOLDER, SHOWER DISC |
| 13 | SCREW |
| 14 | DISC, SHOWER |
| 15 | BASE, PCBA |
| 16 | PCBA |
