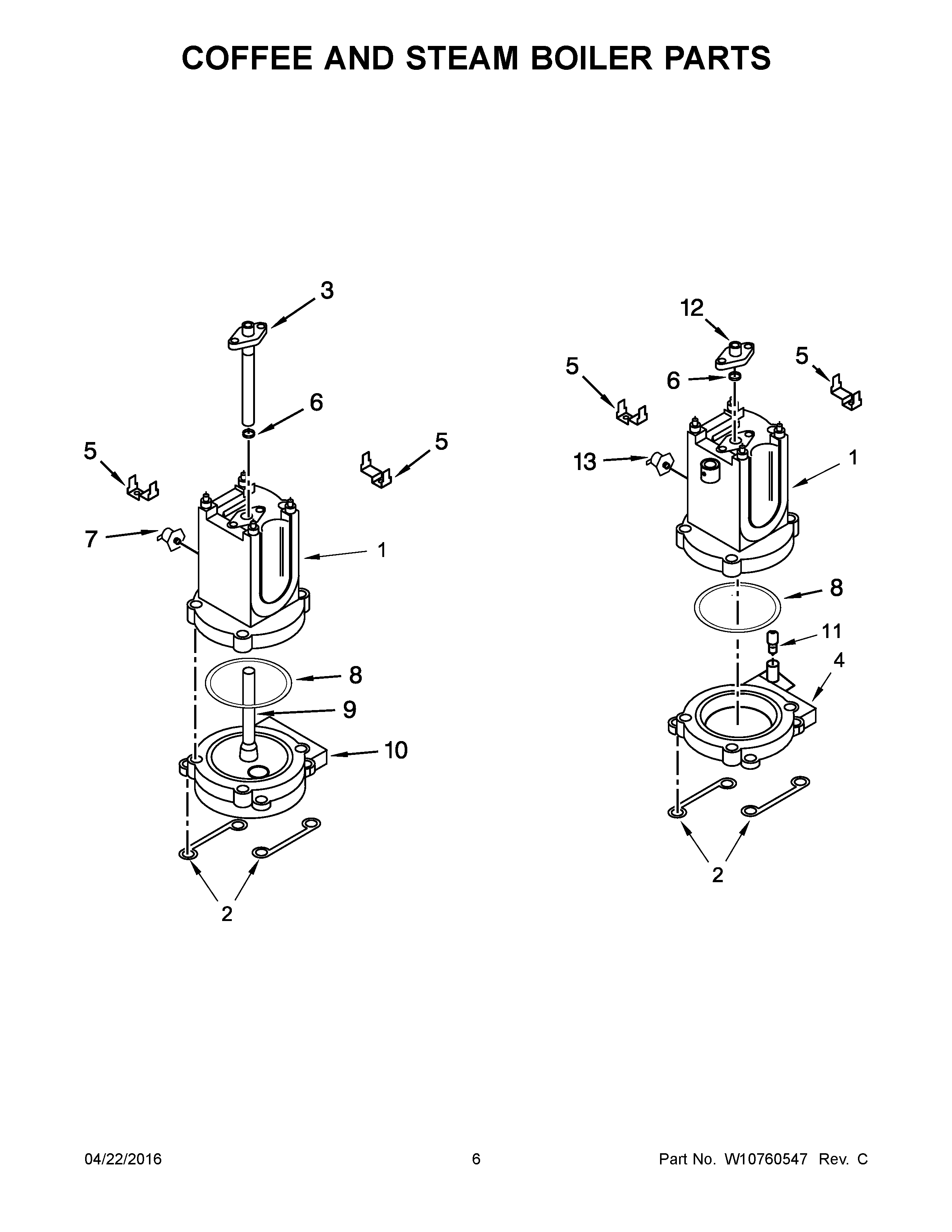

KES2102MS0 04 – COFFEE AND STEAM BOILER PARTS

Products

PositionProduct
1BOILER ASSEMBLY, COFFEE/STEAM
2W10756673 Whirlpool Gasket
3SUPPORT, GAUGE SENSOR (COFFEE)
4FLANGE, STEAM BOILER
5CLAMP, THERMO FUSE
6GASKET
7THERMOSTAT, COFFEE
8W10908061 Whirlpool Gasket
9PIPE, COPPER (COFFEE)
10FLANGE, COFFEE BOILER
11FITTING, STEAM BOILER FLANGE
12W10756842 Whirlpool Body
13THERMOSTAT, STEAM
