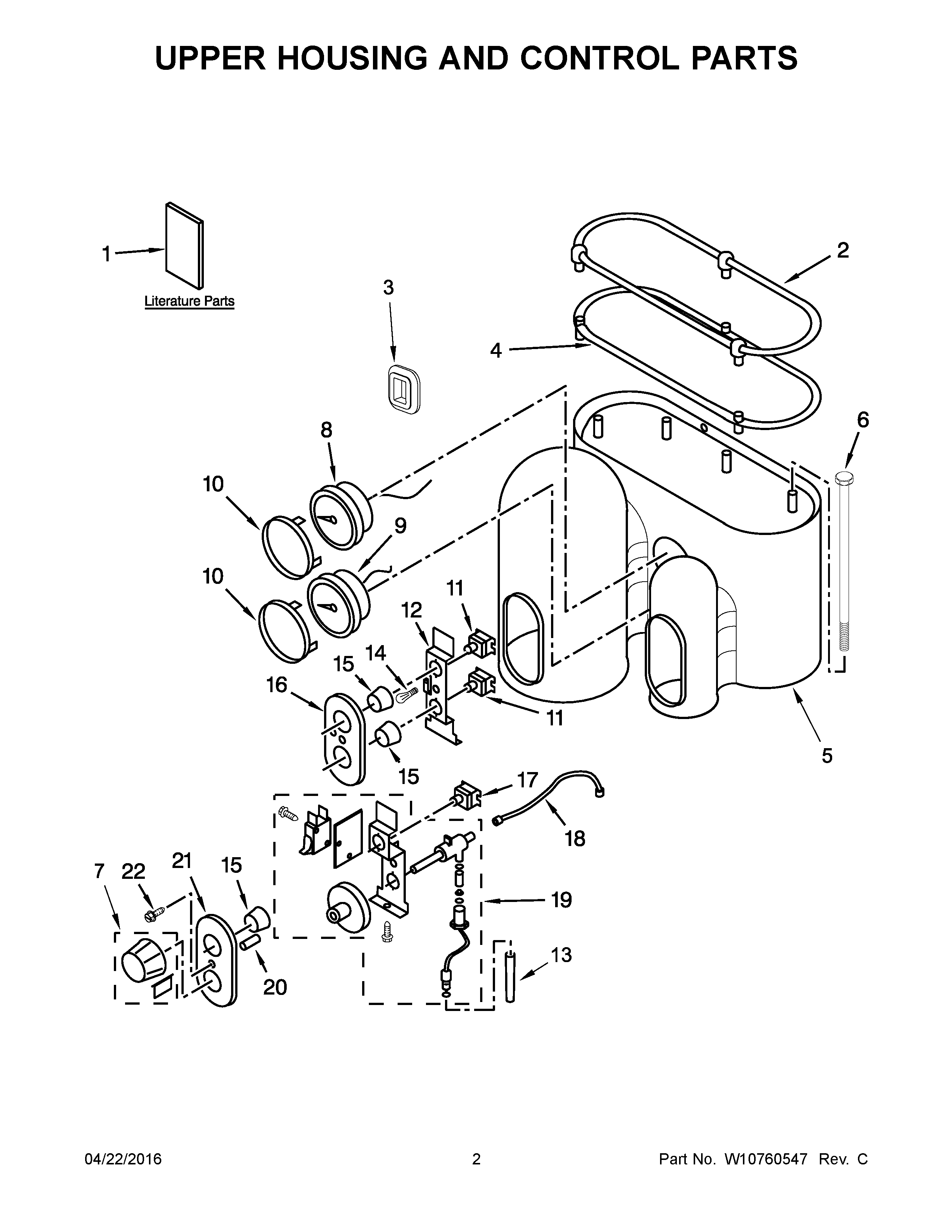

KES2102OB0 02 – UPPER HOUSING AND CONTROL PARTS

Products

PositionProduct
1USE & CARE GUIDE (US)
1AUSE & CARE GUIDE (AUSTRALIAN)
2W10756872 Whirlpool Guard
3PROTECTOR, SOCKET
4W10756833 Whirlpool Lid Assembly
5CABINET – UPPER (ONYX BLACK)
5ACABINET – UPPER (MEDALLION SILVER)
5BCABINET – UPPER (FROSTED PEARL)
5CCABINET – UPPER (EMPIRE RED)
5DCABINET – UPPER (CANDY APPLE)
5ECABINET – UPPER (ALMOND CREAM)
6ROD, CONNECTING
7W10756844 Whirlpool Knob Assembly
8W10756862 Whirlpool Gauge
8AGAUGE, COFFEE (EUROPEAN/AUSTRALIAN)
9W10756863 Whirlpool Gauge
9AGAUGE, STEAM (EUROPEAN/AUSTRALIAN)
10W10756856 Whirlpool Trim Ring
11SWITCH, ON/OFF (MAIN)
11ASWITCH, ON/OFF (COFFEE)
12BRACKET, SWITCH
13TIP, FROTHING
14LIGHT & WIRE ASSEMBLY (US)
14AW10756873 Whirlpool Light Assembly
15W11246691 Whirlpool Button
16BEZEL, COFFEE (US)
16ABEZEL, COFFEE (EUROPEAN/AUSTRALIAN)
17W11161896 Whirlpool Switch Assembly
18PIPE ASSEMBLY, STEAM GROUP TO STEAM BODY PIPE
19STEAM GROUP ASSEMBLY
20SPACER, KNOB
21BEZEL, STEAM (US)
21ABEZEL, STEAM (EUROPEAN/AUSTRALIAN)
22SCREW
