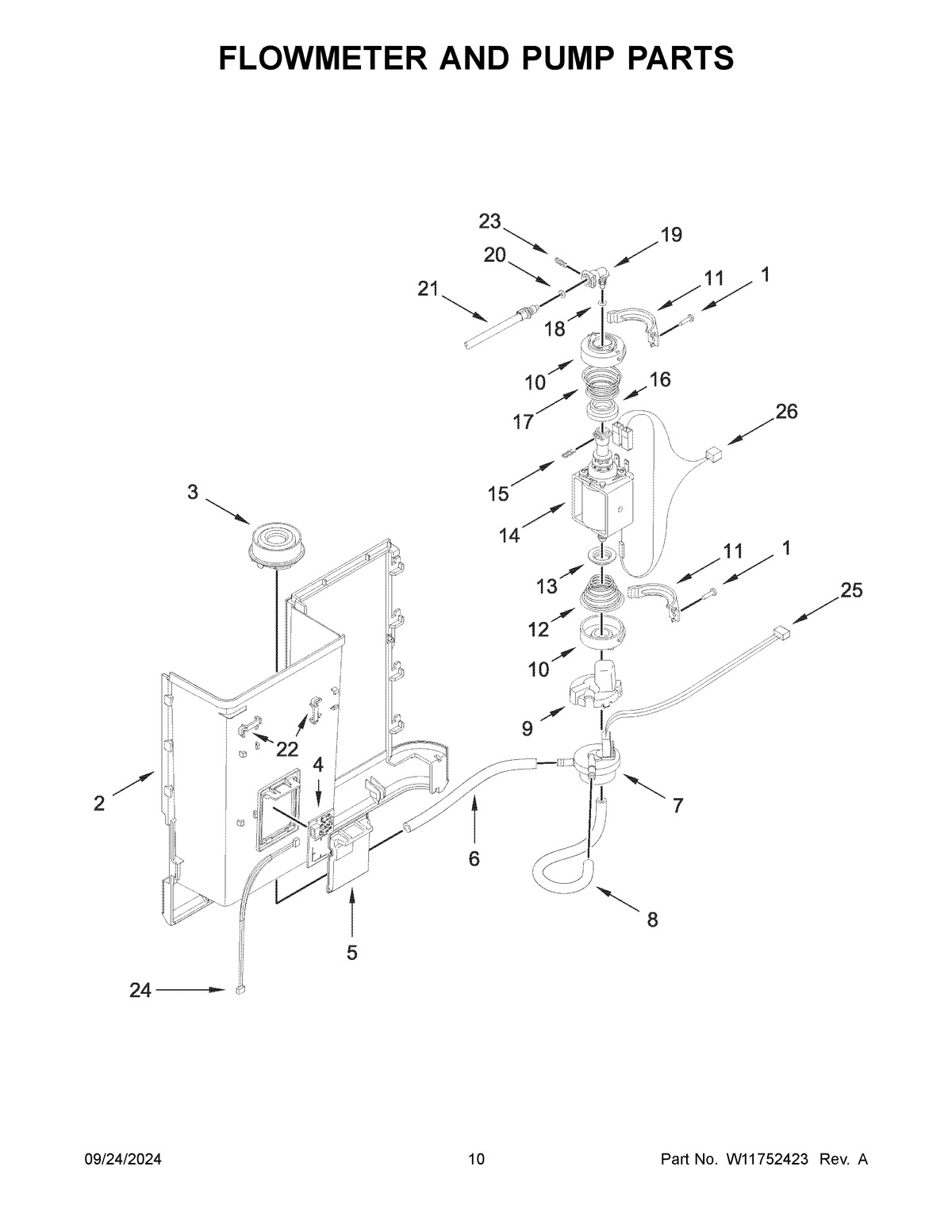

KES8556SX0 06 – FLOWMETER AND PUMP PARTSadmin2025-04-26T11:36:35+00:00KES8556SX0 06 – FLOWMETER AND PUMP PARTS
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | SIDE, PANEL (LEFT - CAST IRON BLACK) |
| 2A | SIDE, PANEL (LEFT - PORCELAIN WHITE) |
| 2B | SIDE, PANEL (LEFT - STAINLESS STEEL FINISH) |
| 3 | HOLDER, WATER TANK |
| 4 | CONTROL, WATER LEVEL SENSOR |
| 5 | COVER, WATER LEVEL SENSOR |
| 6 | HOSE, FLOWMETER TO WATER TANK |
| 7 | FLOWMETER |
| 8 | HOSE, FLOWMETER |
| 9 | COVER, FLOMETER |
| 10 | DAMPER, PUMP |
| 11 | SUPPORT, PUMP |
| 12 | SPRING, PUMP (LOWER) |
| 13 | HOLDER, PUMP (LOWER) |
| 14 | PUMP |
| 15 | CLIP |
| 16 | HOLDER, PUMP (UPPER) |
| 17 | SPRING, PUMP (UPPER) |
| 18 | O-RING |
| 19 | CONNECTOR, WATER |
| 20 | O-RING |
| 21 | HOSE, PUMP TO HEATER |
| 22 | CABLE HOLDER |
| 23 | CLIP |
| 24 | JUMPER, WATER HARNESS |
| 25 | JUMPER, FLOWMETER |
| 26 | JUMPER, PUMP TO PCBA |
