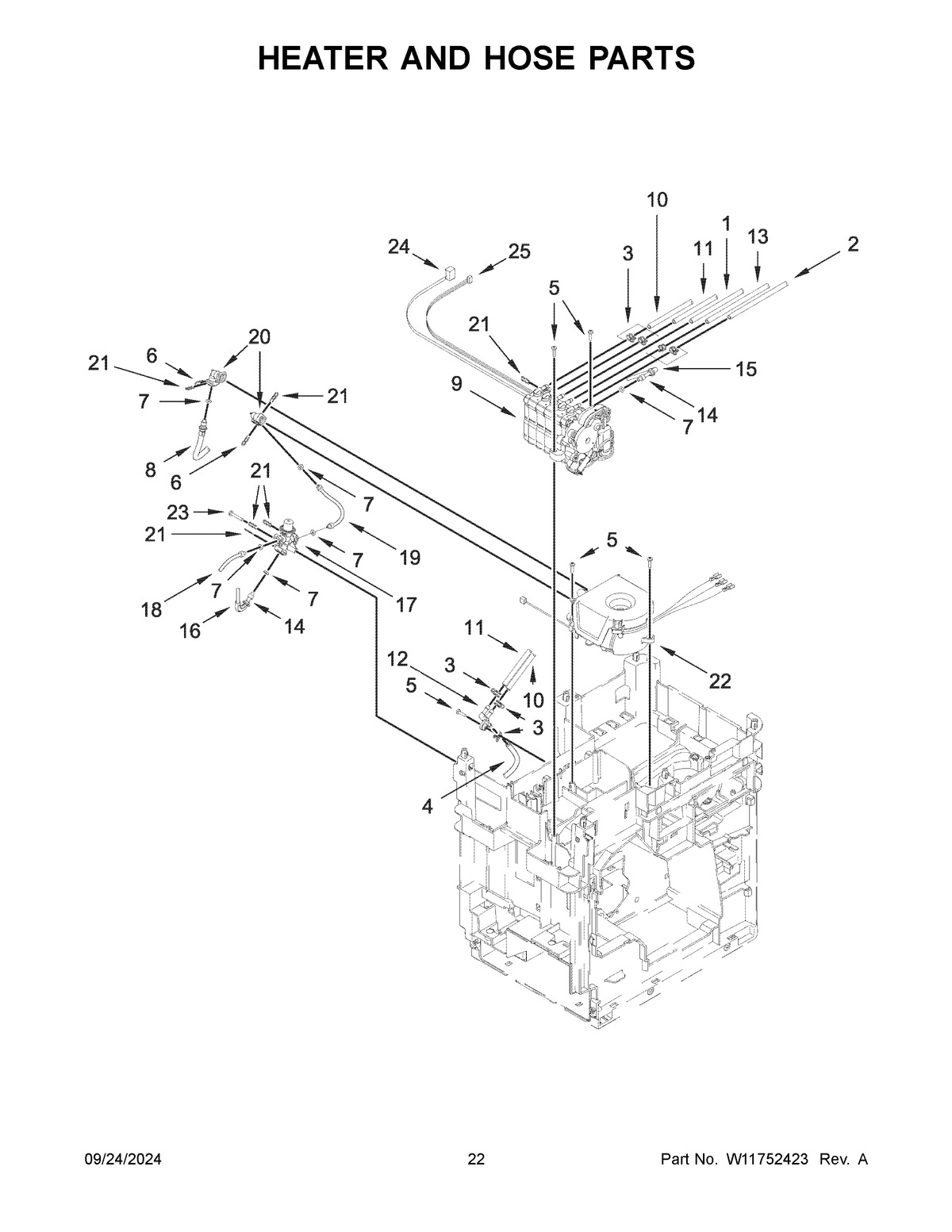

KES8556SX0 12 – HEATER AND HOSE PARTSadmin2025-04-26T11:35:57+00:00KES8556SX0 12 – HEATER AND HOSE PARTS
Products
| Position | Product |
|---|
| 1 | HOSE, BREW HEAD TO SOLENOID VALVE |
| 2 | HOSE, BREW HEAD TO SOLENOID VALVE (RED) |
| 3 | CLAMP |
| 4 | HOSE, BREW HEAD TO F-VALVE |
| 5 | SCREW |
| 6 | CLIP |
| 7 | O-RING |
| 8 | HOSE, PUMP TO HEATER |
| 9 | SOLENOID VALVE |
| 10 | HOSE, F-VALVE TO SOLEVNOID VALVE (OPAQUE) |
| 11 | HOSE, F-VALVE TO SOLENOID VALVE (GREEN) |
| 12 | CONNECTOR, WATER |
| 13 | HOSE, SOLENOID VALVE TO CENTER INSERT |
| 14 | HOSE, 3-WAY VALVE TO SOLENOID VALVE |
| 15 | HOSE, U-BEND 90 |
| 16 | HOSE, U-BEND 120 |
| 17 | VALVE, 3-WAY |
| 18 | HOSE, 3-WAY VALVE TO CENTER INSERT |
| 19 | HOSE, 3-WAY VALVE TO HEATER |
| 20 | CONNECTOR, WATER |
| 21 | CLIP |
| 22 | HEATER |
| 23 | SCREW |
| 24 | JUMPER, SOLENOID TO PCBA |
| 25 | JUMPER, SOLENOID SWITCHES TO PCBA |
