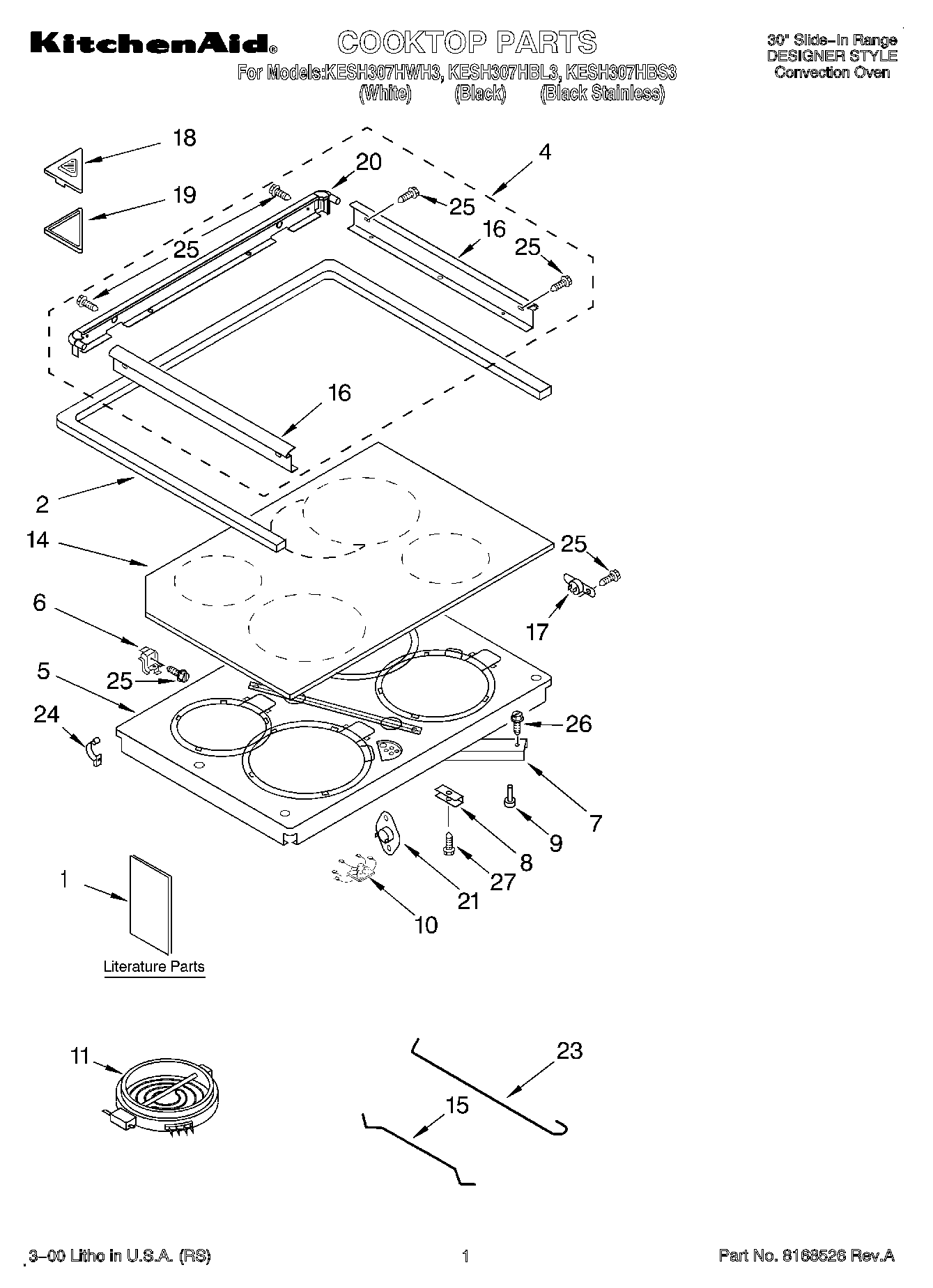

KESH307HBL3 01 – COOKTOP, LITERATUREadmin2025-04-26T09:46:07+00:00KESH307HBL3 01 – COOKTOP, LITERATURE
Products
| Position | Product |
|---|
| 1 | Safer Cooking Tips |
| 1 | Literature Parts (Use & Care Guide) |
| 1 | WPL LIT9752043 |
| 1 | WPL LIT9753028 |
| 1 | WPL LIT9753027 |
| 1 | WPL LIT9752775 |
| 1 | Literature Parts (Smart & Easy Guide) |
| 1 | Literature Parts (Cookbook (T/C Oven)) |
| 2 | Gasket, Cooktop |
| 4 | Frame, Cooktop (White) |
| 4 | Frame, Cooktop (Black) |
| 5 | Support, Element |
| 6 | Washer, Pivot |
| 6 | Bracket, Pivot |
| 7 | Brace, Support |
| 8 | Support Clips (4) |
| 9 | 238614 Whirlpool Bumper Hinge |
| 10 | Hot Light |
| 11 | W10823697 Whirlpool Surface Element |
| 11 | W10823692 Whirlpool Dual Radiant Element |
| 11 | W10823699 Whirlpool Right Front Surface Element |
| 11 | Element, Surface (1800W - RF) |
| 14 | Cooktop, Ceran (Black) |
| 14 | Cooktop, Ceran (White) |
| 15 | Rod, Small Ceran Element |
| 16 | Trim, Side Frame (White) |
| 16 | Trim, Side Frame (Black) |
| 17 | Thermostat SPST (205) |
| 18 | Cover, Vent |
| 19 | Gasket, Vent Cover |
| 20 | Trim, Rear Frame (Incls. End Caps) (Black) |
| 20 | Trim, Rear (Includes End Caps) (White) |
| 21 | WP9759944 Whirlpool Thermostat |
| 23 | Rod, Large Ceran Element |
| 24 | 8528351 Whirlpool Clip |
| 25 | WP4159387 Whirlpool Compactor Screw |
| 26 | Screw (4) 10 x 1/2 |
| 27 | Screw, 10-16 x 1 |
| 27 | Gasket, Console |
