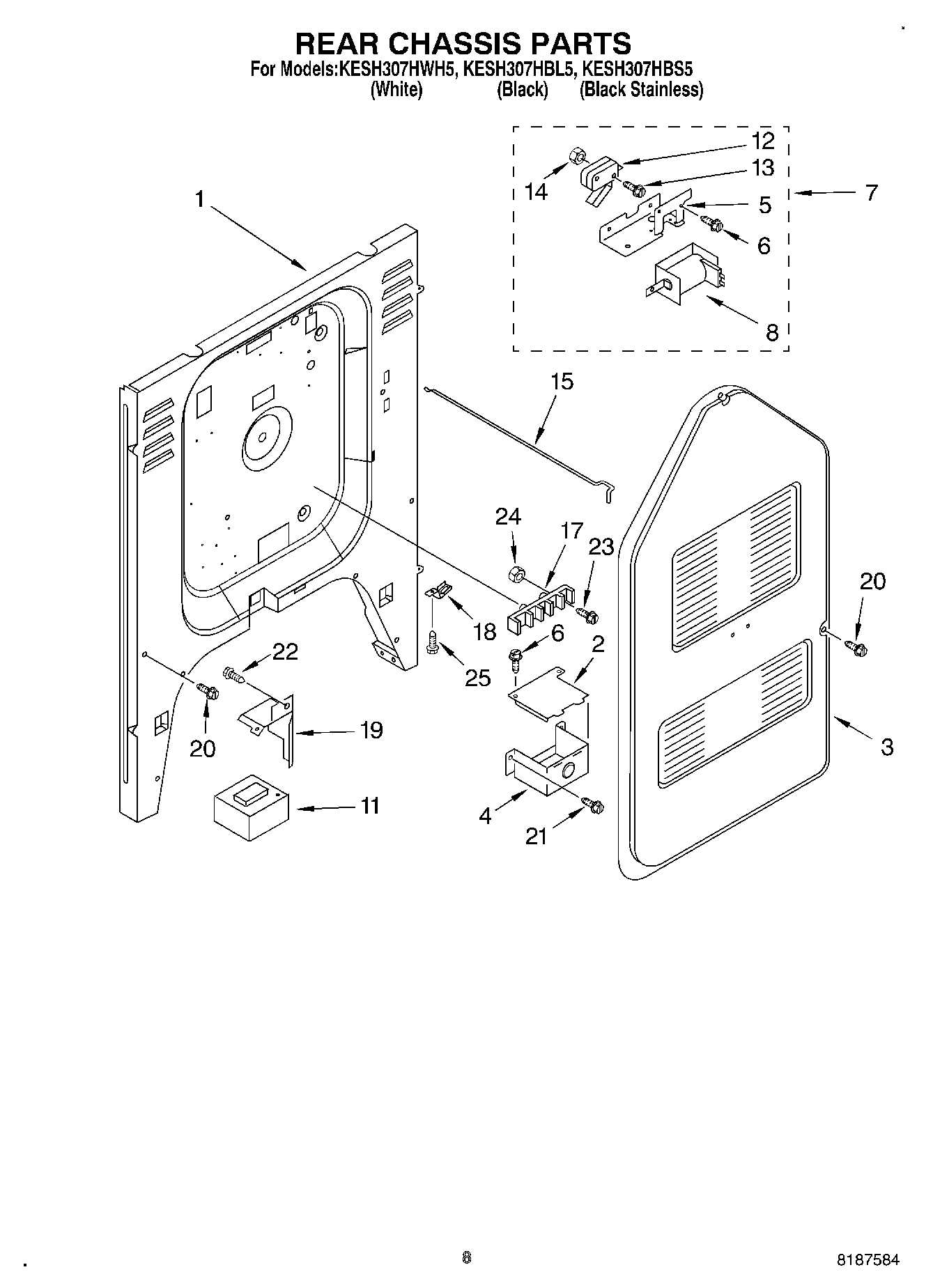

KESH307HBL5 06 – REAR CHASSIS

Products

Position	Product
1	Back panel, Chassis
2	Cover, Terminal Box
3	Panel, Rear Cover
4	WPL 9752344
5	Bracket, Lock
6	WP4159387 Whirlpool Compactor Screw
7	Oven Lock Assembly
8	Solenoid
11	Block, Balance
12	Switch, Interlock
13	Screw, (2)
14	Nut (2)
15	Rod, Lock
17	WP8203546 Whirlpool Terminal Block
18	Ground Strap
18	Clip, Ground Wire
19	WPL 9751798
20	Screw (4) 10 x 3/8
21	Screw (4) 10 x 1/2
22	340184 Whirlpool Screw
23	Screw, (2) 10-16 x 1
24	WP112432 Whirlpool Nut Assembly
25	SCREW
