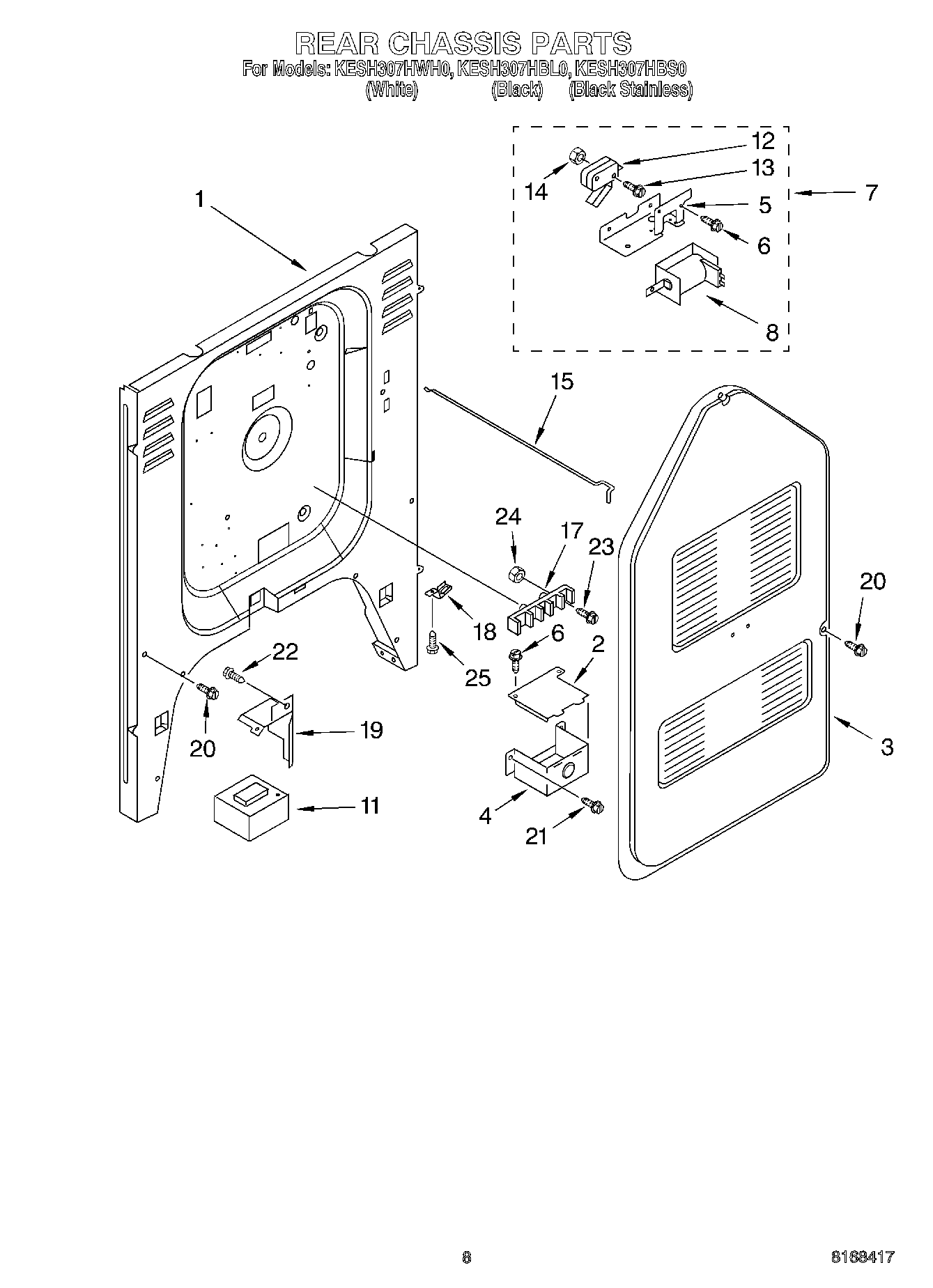

KESH307HBS0 06 – REAR CHASSISadmin2025-04-26T09:47:12+00:00KESH307HBS0 06 – REAR CHASSIS
Products
| Position | Product |
|---|
| 1 | Back panel, Chassis |
| 2 | Cover, Terminal Box |
| 3 | Panel, Rear Cover |
| 4 | WPL 9752344 |
| 5 | Bracket, Lock |
| 6 | WP4159387 Whirlpool Compactor Screw |
| 7 | Oven Lock Assembly |
| 8 | Solenoid |
| 11 | Block, Balance |
| 12 | Switch, Interlock |
| 13 | Screw, (2) |
| 14 | Nut (2) |
| 15 | Rod, Lock |
| 17 | WP8203546 Whirlpool Terminal Block |
| 18 | Ground Strap |
| 18 | Clip, Ground Wire |
| 19 | WPL 9751798 |
| 20 | Screw (4) 10 x 3/8 |
| 21 | Screw (4) 10 x 1/2 |
| 22 | 340184 Whirlpool Screw |
| 23 | Screw, (2) 10-16 x 1 |
| 24 | WP112432 Whirlpool Nut Assembly |
| 25 | SCREW |
