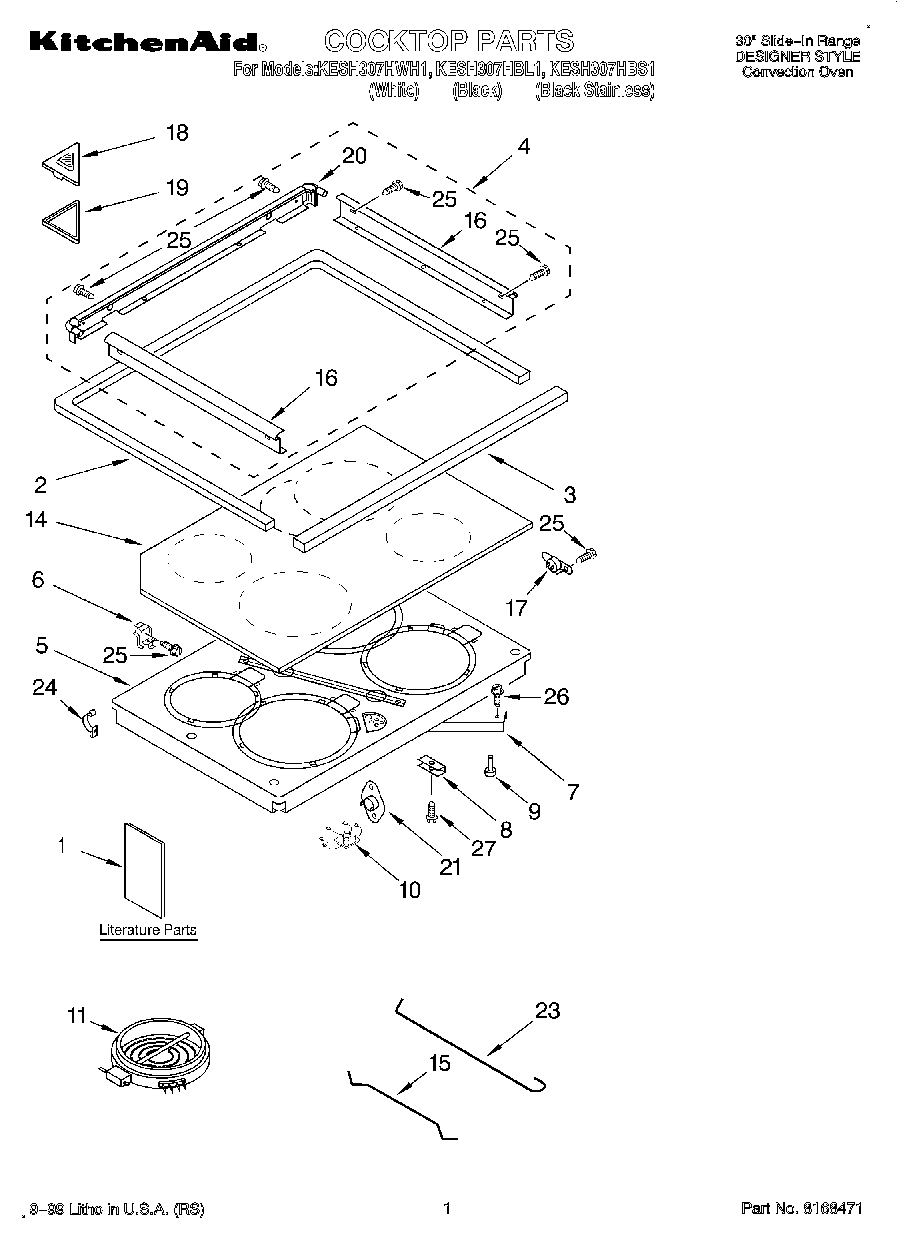

KESH307HBS1 01 – COOKTOP, LITERATURE

KESH307HBS1 01 – COOKTOP, LITERATURE

Written by

in

KESH307HBS1 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1WPL LIT9752043
1WPL LIT9753028
1WPL LIT9753027
1WPL LIT9752775
1Literature Parts (Smart & Easy Guide)
1Literature Parts (Cookbook (T/C Oven))
2WP9780939 Whirlpool Cooktop Gasket
3Gasket, Console
4Frame, Cooktop (White)
4Frame, Cooktop (Black)
5Support, Element
6Washer, Pivot
6Bracket, Pivot
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823697 Whirlpool Surface Element
11Element, Surface (1800W – RF)
11W10823699 Whirlpool Right Front Surface Element
11W10823692 Whirlpool Dual Radiant Element
14Cooktop, Ceran (White)
14Cooktop, Ceran (Black)
15Rod, Small Ceran Element
16Trim, Side Frame (White)
16Trim, Side Frame (Black)
17Thermostat SPST (205)
18Cover, Vent
19Gasket, Vent Cover
20Trim, Rear Frame (Incls. End Caps) (Black)
20Trim, Rear (Includes End Caps) (White)
21WP9759944 Whirlpool Thermostat
23Rod, Large Ceran Element
248528351 Whirlpool Clip
25WP4159387 Whirlpool Compactor Screw
26Screw (4) 10 x 1/2
27Screw, 10-16 x 1
