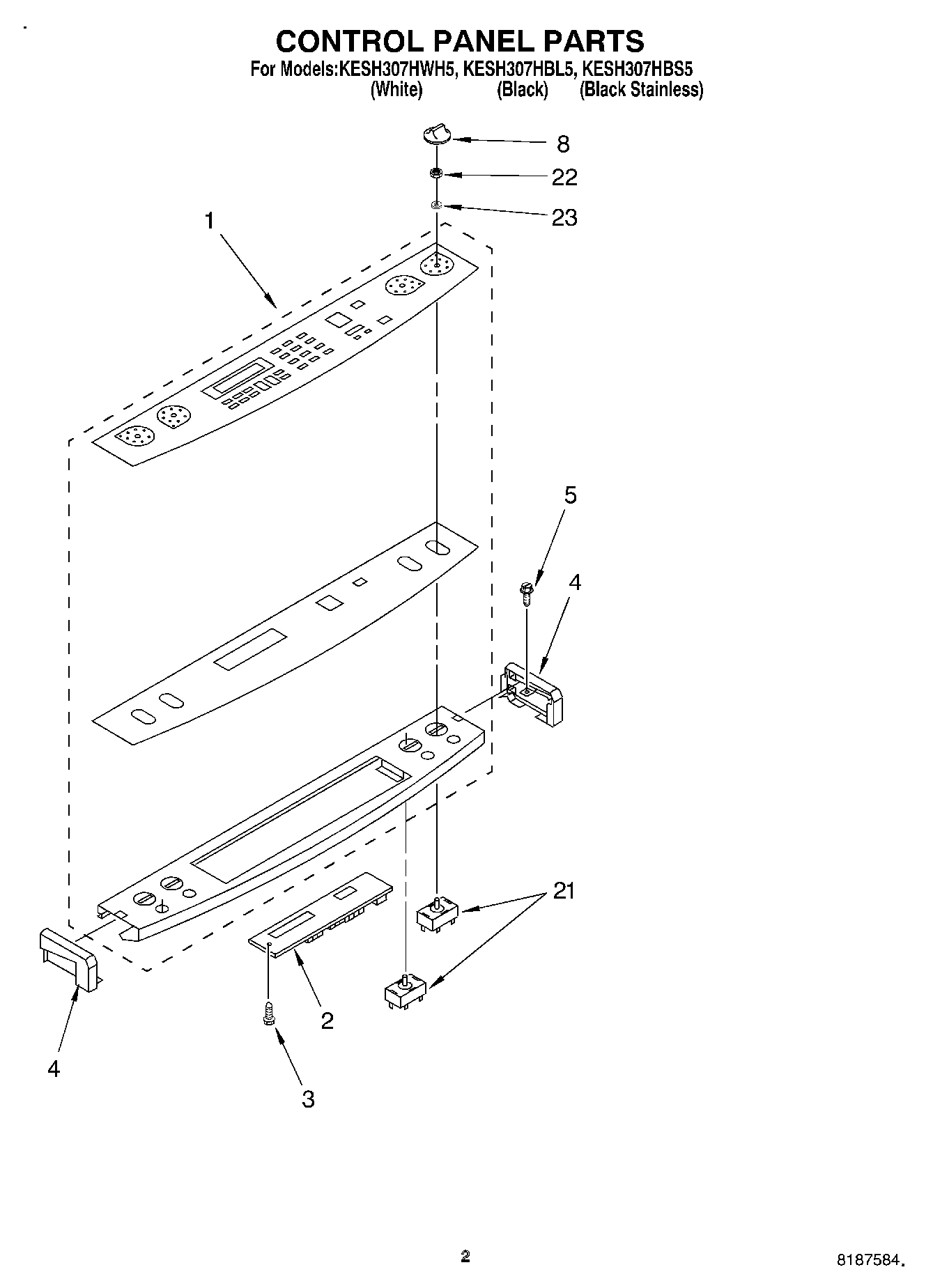

KESH307HBS5 02 – CONTROL PANEL

KESH307HBS5 02 – CONTROL PANEL

Written by

in

KESH307HBS5 02 – CONTROL PANEL

Products

PositionProduct
1Console, Glass (White)
1Console, Glass (Black)
2Timer, Electronic
3Screw
4End Cap (Right Hand) (White)
4End Cap Right Hand (Black)
4(End Cap Left Hand) (White)
4(End Cap Left Hand) (Black)
5WP4159387 Whirlpool Compactor Screw
8WP9750372FF Whirlpool Knob
8WP9750372FW Whirlpool Knob Assembly
21Switch, Infinite (1700W, RF)
21WP9755175 Whirlpool Infinite Switch
21Switch, Infinite (2100-2600W, LF)
21Switch, Infinite (1250-1500W, LR)
22Nut, Mounting (Single Element)
22Nut, Mounting (Dual Element)
23Seal, Switch (4)
