KESH307HBS6 02 – CONTROL PANEL

KESH307HBS6 02 – CONTROL PANEL

Written by

in

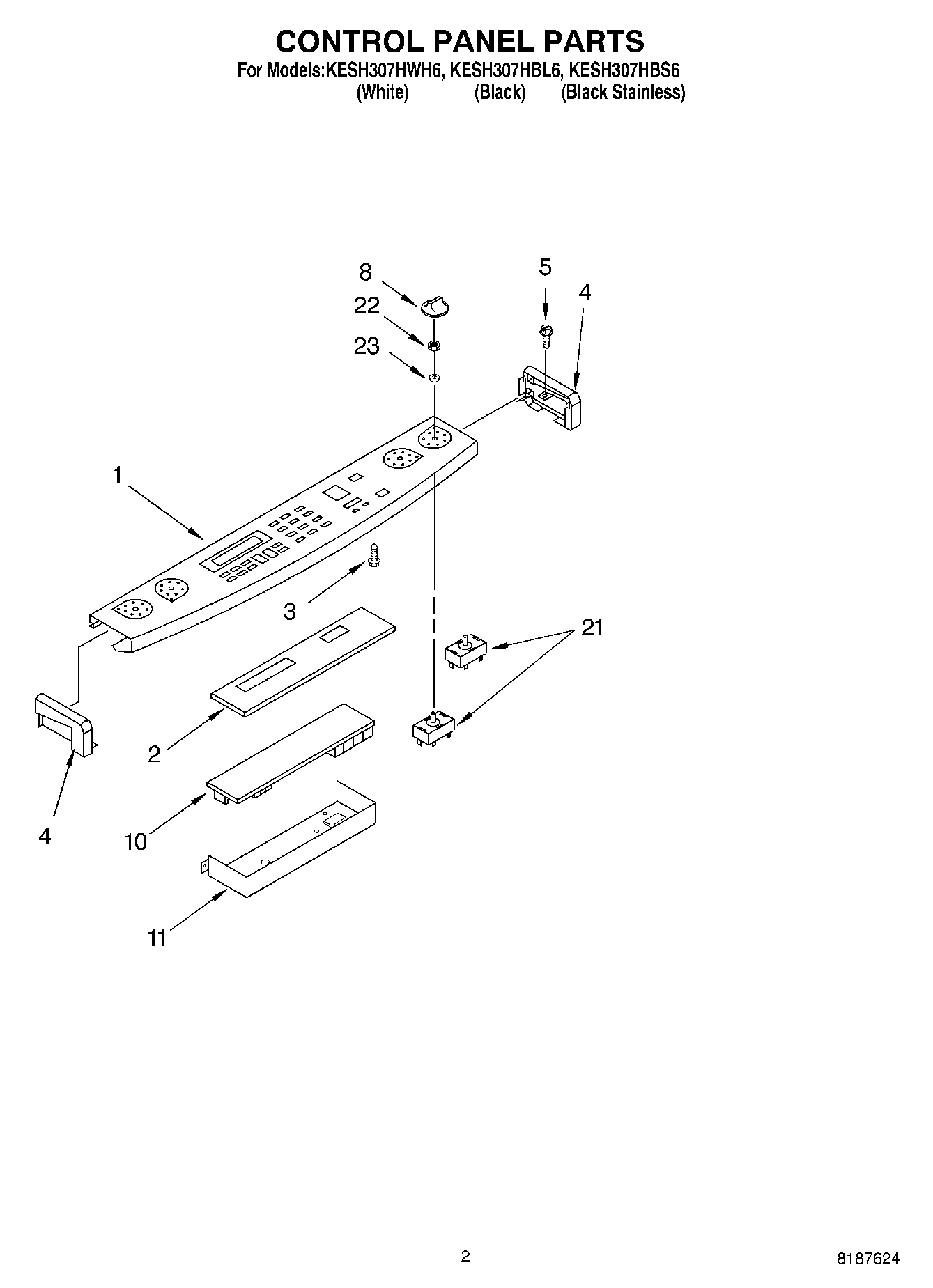

KESH307HBS6 02 – CONTROL PANEL

Products

PositionProduct
1Console, Glass (White)
1Console, Glass (Black Stainless)
2Display Board Assembly
3Screw
4End Cap (Right Hand) (White)
4End Cap Right Hand (Black)
4(End Cap Left Hand) (White)
4(End Cap Left Hand) (Black)
5WP4159387 Whirlpool Compactor Screw
8WP9750372FW Whirlpool Knob Assembly
8WP9750372FF Whirlpool Knob
10Microcptr
11Shield, Control Panel
21Switch, Infinite (1250-1500W, LR)
21Switch, Infinite (2100-2600W, LF)
21Switch, Infinite (1700W, RF)
21WP9755175 Whirlpool Infinite Switch
22Nut, Mounting (Single Element)
23Seal, Switch (4)
