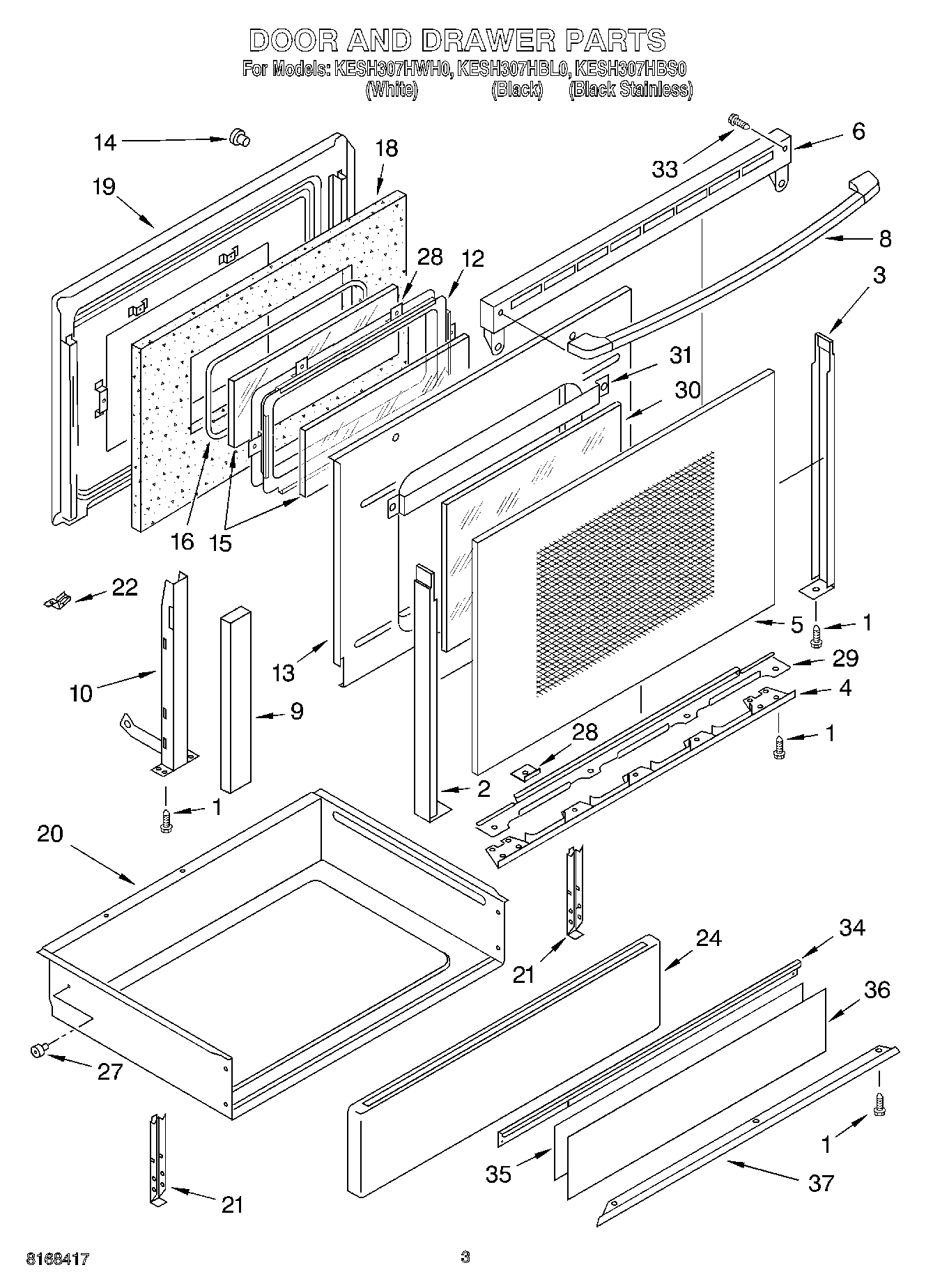

KESH307HWH0 03 – DOOR AND DRAWER

Products

Position	Product
1	WP4159387 Whirlpool Compactor Screw
2	Trim, Door-Left (White)
2	Trim, Door-Left (Black)
3	Trim, Door-Right (Black)
3	Trim, Door-Right (White)
4	Trim, Door Bottom (White)
4	Trim, Door Bottom (Black)
5	Glass, Door Front (White)
5	Glass, Door (Black)
5	Glass, Door (Black)
6	Vent, Door (Black)
6	Vent, Door (White)
6	Vent, Door (Gasket, Vent)
6	Vent, Door (Seal, Door Vent Side)
8	Handle, Door (White)
8	Handle, Door (Black)
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
12	Frame, Window
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	WP9781593 Whirlpool Door Glass
16	WP9755177 Whirlpool Wind Gasket
18	Insulation
19	Liner, Door
20	Drawer & Roller
20	Drawer & Roller
21	Bracket, Drawer
22	Retainer, Glass
24	Front, Drawer (White)
24	Front, Drawer (Black)
24	Front, Drawer (Black Stainless)
24	WP90296 Whirlpool Clip
27	814229 Whirlpool Primary Roller
28	Spacer, Door (8)
29	Deflector, Steam
30	Baffle, Glass
31	Channel, Heat
33	WPW10001180 Whirlpool Refrigerator Screw
34	WPL 9750614PB
35	WPL 9753329
36	WPL 9753293
37	WPL 9750613PB
