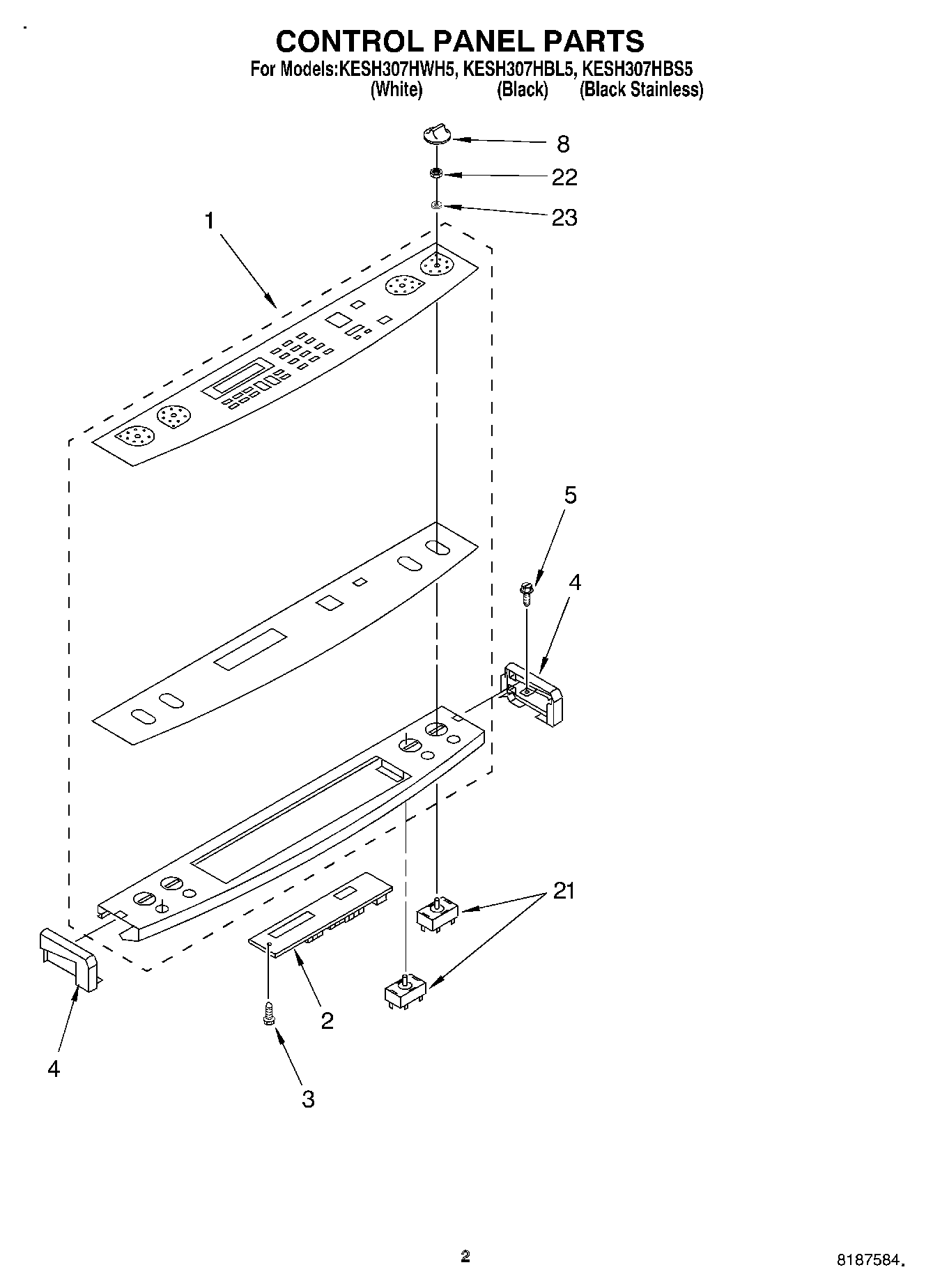

KESH307HWH5 02 – CONTROL PANEL

Products

Position	Product
1	Console, Glass (White)
1	Console, Glass (Black)
2	Timer, Electronic
3	Screw
4	End Cap (Right Hand) (White)
4	End Cap Right Hand (Black)
4	(End Cap Left Hand) (White)
4	(End Cap Left Hand) (Black)
5	WP4159387 Whirlpool Compactor Screw
8	WP9750372FF Whirlpool Knob
8	WP9750372FW Whirlpool Knob Assembly
21	Switch, Infinite (1700W, RF)
21	WP9755175 Whirlpool Infinite Switch
21	Switch, Infinite (2100-2600W, LF)
21	Switch, Infinite (1250-1500W, LR)
22	Nut, Mounting (Single Element)
22	Nut, Mounting (Dual Element)
23	Seal, Switch (4)
