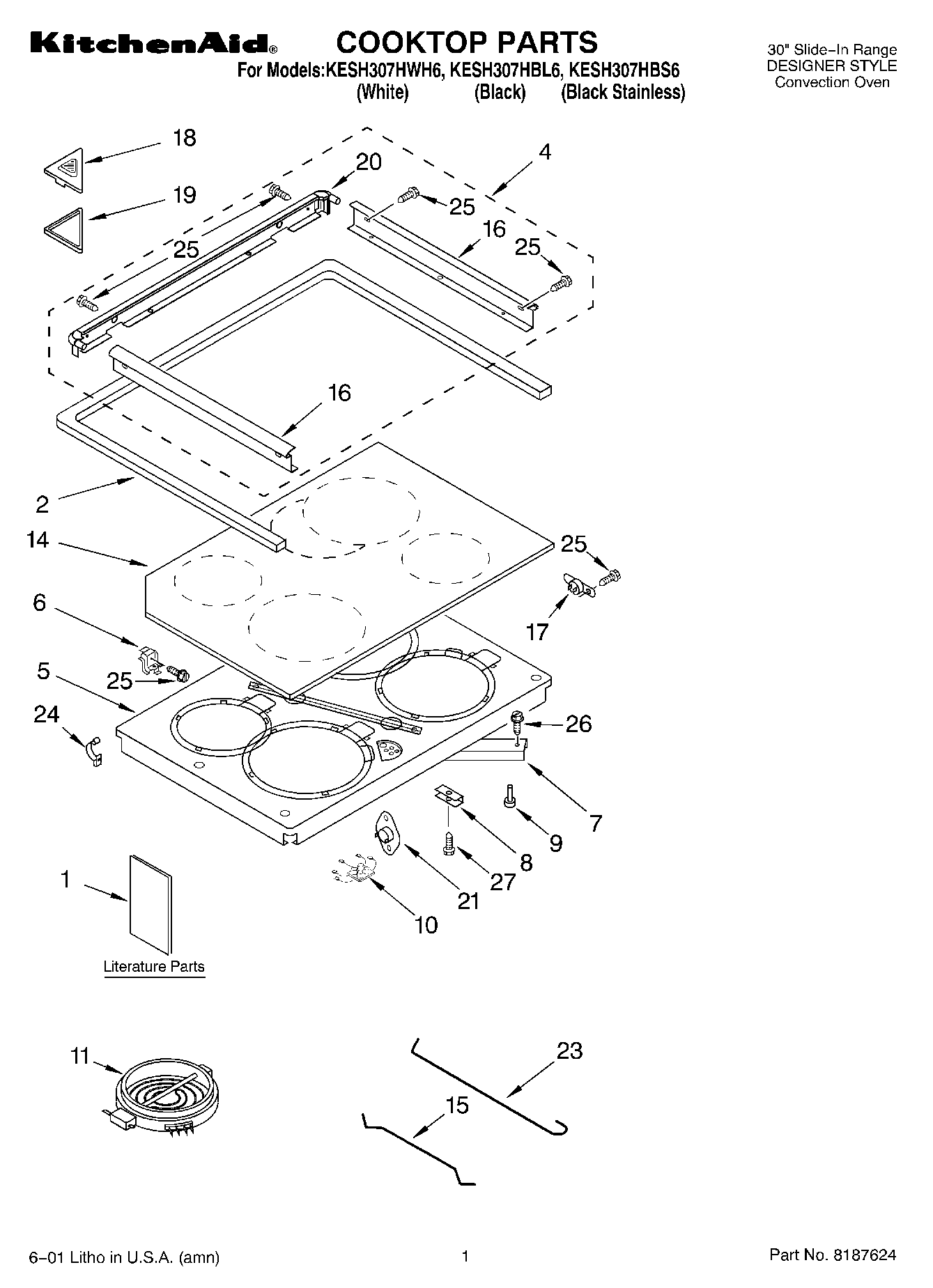

KESH307HWH6 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Smart & Easy Guide)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide)
1	WPL LIT9752775
1	Literature Parts (Installation Instructions)
2	Gasket, Cooktop
4	Frame, Cooktop (Black)
4	Frame, Cooktop (White)
5	Support, Element
6	Bracket, Pivot
6	Washer, Pivot
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823692 Whirlpool Dual Radiant Element
11	W10823699 Whirlpool Right Front Surface Element
11	Element, Surface (1800W – RF)
11	W10823697 Whirlpool Surface Element
14	Cooktop, Ceran (Black)
14	Cooktop, Ceran (White)
15	Rod, Small Ceran Element
16	Trim, Side Frame (Black)
16	Trim, Side Frame (White)
17	Thermostat SPST (205)
18	Cover, Vent
19	Gasket, Vent Cover
20	Trim, Rear (Includes End Caps) (White)
20	Trim, Rear Frame (Incls. End Caps) (Black)
21	WP9759944 Whirlpool Thermostat
23	Rod, Large Ceran Element
24	8528351 Whirlpool Clip
25	WP4159387 Whirlpool Compactor Screw
26	Screw (4) 10 x 1/2
27	Screw, 10-16 x 1
