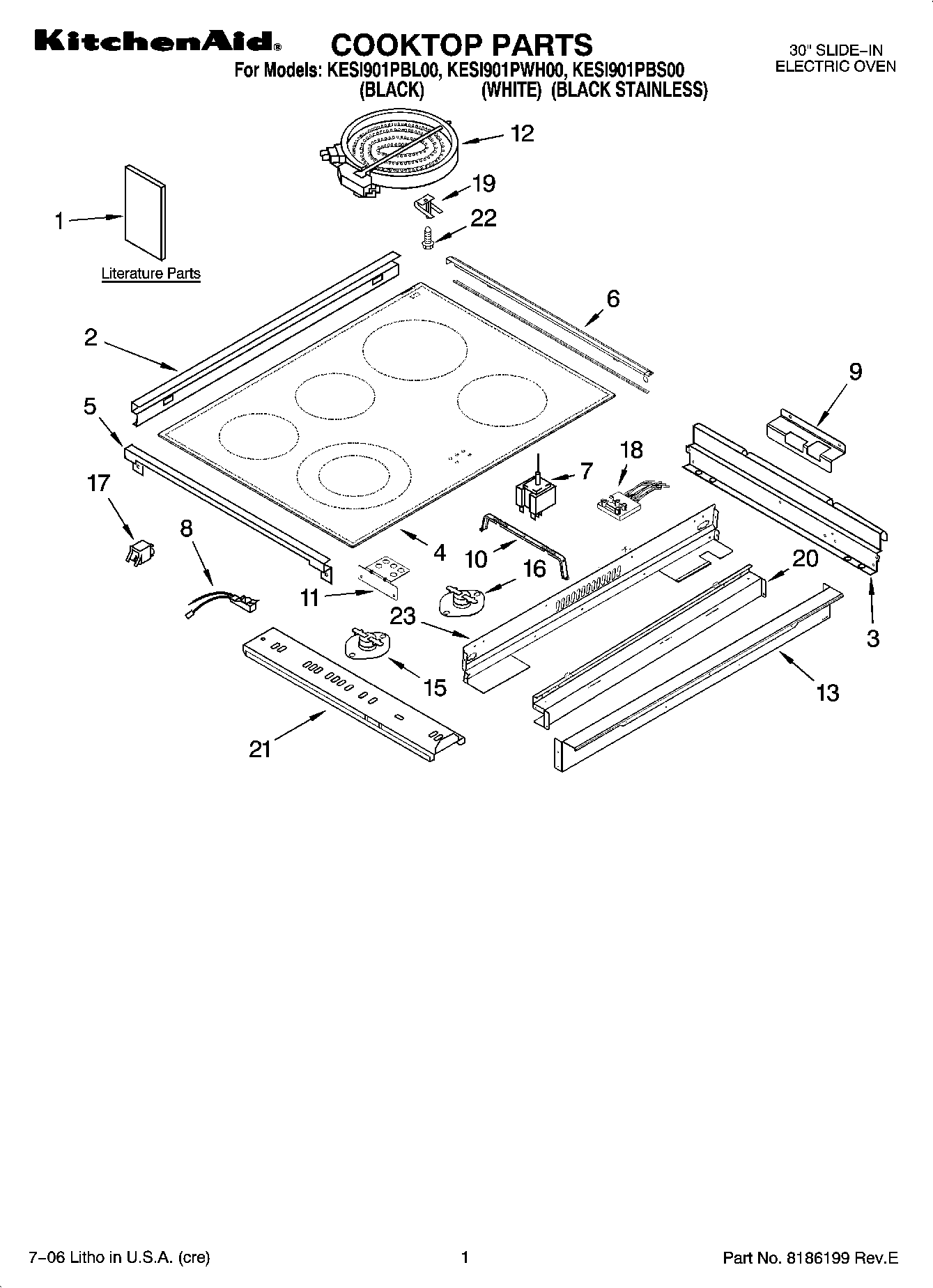

KESI901PBL00 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	Tech Sheet
1	Anti-Tip Instruct.
1	Safe Cooking Tips
1	Installation Instructions
2	Trim, Cooktop Rear (White)
2	Trim, Cooktop Rear (Black)
2	Trim, Cooktop Rear (S.Steel)
3	Bracket, Mounting
4	Cooktop (White)
4	Cooktop (Black)
4	Gasket
4	Cooktop (Black Stainless)
5	Clip, Ceran (2)
6	Trim-CkTop, SI (Black LH)
6	Trim-CkTop, SI (Black RH)
6	Trim-CkTop, SI (S.Steel RH)
6	Trim-CkTop, SI (White RH)
6	Trim-CkTop, SI (White LH)
6	Trim-CkTop, SI (S.Steel LH)
7	WP9750639 Whirlpool Infinite Switch
7	WP9750641 Whirlpool Infinite Switch
7	Switch, Infinite (Dual)
7	WP9750638 Whirlpool Infinite Switch
8	Light, Indicator
9	Support (L.Hand)
9	Support (R.Hand)
10	WP9756821 Whirlpool Support
10	WP4449809 Whirlpool Screw
11	Bracket
12	WP8523700 Whirlpool Surface Element
12	W10823697 Whirlpool Surface Element
12	W10823698 Whirlpool Surface Element Right Rear
12	W10823692 Whirlpool Dual Radiant Element
12	W10823699 Whirlpool Right Front Surface Element
13	Bracket, Front Support
15	Thermostat SPST (205)
16	WP9759944 Whirlpool Thermostat
17	W10491985 Whirlpool Screw
17	WP8523265 Whirlpool Indicator Light
18	Light, Hot Surface
19	Spring, Locator
20	Bracket, Rear Sprt
21	Rail, Element (2)
23	Cover
23	Screw (4)
