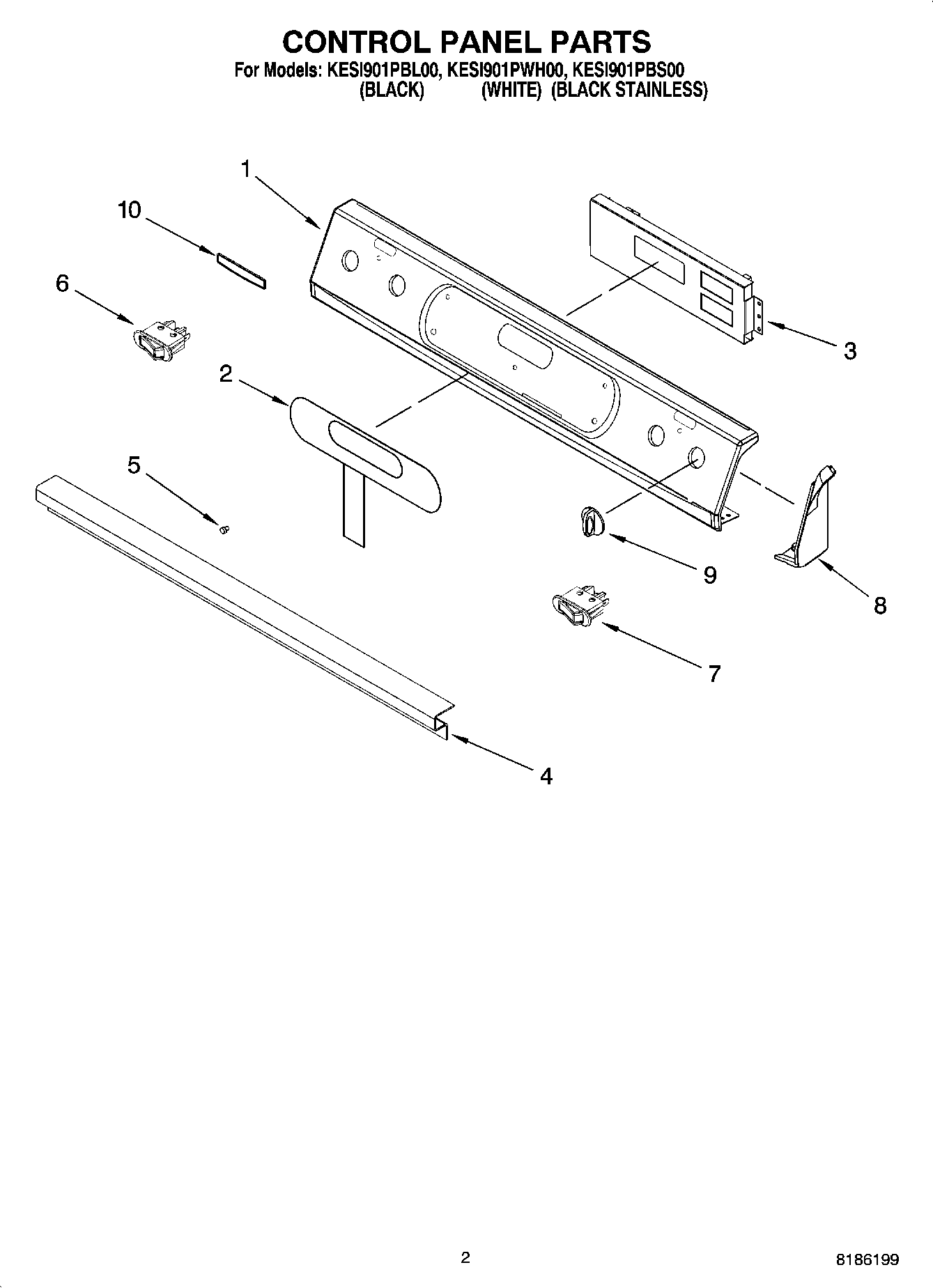

KESI901PBL00 02 – CONTROL PANEL PARTS

KESI901PBL00 02 – CONTROL PANEL PARTS

Written by

in

KESI901PBL00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (White)
1Control Panel (S.Steel)
1Control Panel (Black)
2Membrane Switch (White)
2WP3400832 Whirlpool Screw
2Membrane Switch (Black)
3Control, Migration
3Screw
4Screw (4)
4Bracket, Console
5WP3196068 Whirlpool Light Lens
6WPW10163902 Whirlpool Switch
6Switch, Warming (Cashmere Metalic)
6Switch, Warming (White)
7Switch, Simmer (White)
7WPW10163899 Whirlpool Switch
8Endcap (Black LH)
8Endcap (S.Steel LH)
8Endcap (White LH)
8Endcap (Black RH)
8Endcap (S.Steel RH)
8Endcap (White RH)
83196172 Whirlpool Oven Screw
9Knob (Black)
10Palnut
10Nameplate (Biscuit)
10Nameplate (Black)
10Nameplate (White)
