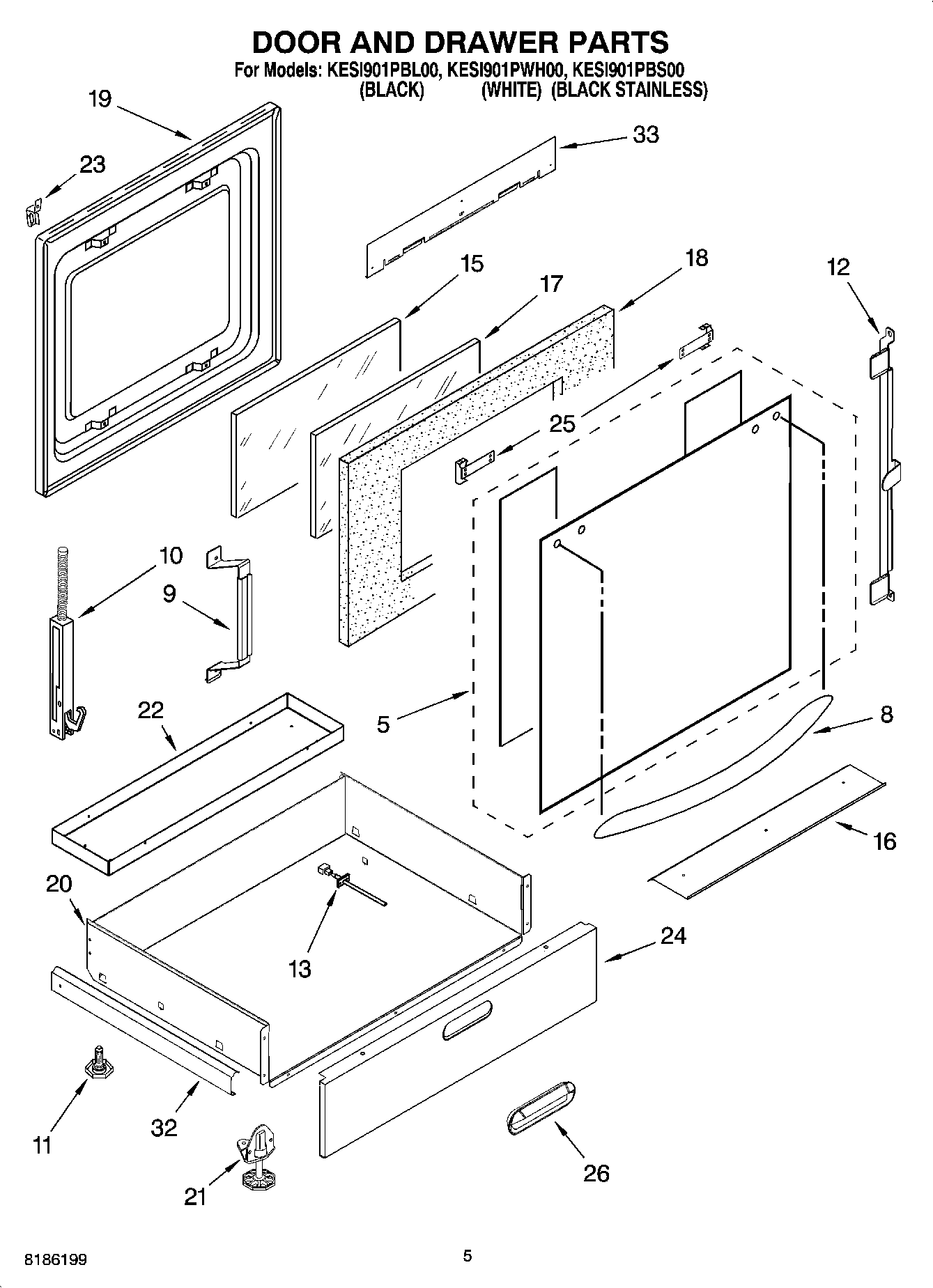

KESI901PBL00 04 – DOOR AND DRAWER PARTS
Written by
in
KESI901PBL00 04 – DOOR AND DRAWER PARTS
Products
Position
Product
5
Glass, Door Front (White)
5
Glass, Door Front (S.Steel)
5
Glass, Door Front (Black)
8
Handle, Door (Black)
8
Handle, Door (White)
9
Bracket, Central
10
HINGE-DOOR LH/SS DOOR SPRING
10
WP9760579 Whirlpool Right Door Hinge
11
WPW10058460 Whirlpool Appliance Levelling Leg
12
WP9759229 Whirlpool Mounting Bracket
13
WP8274149 Whirlpool Sensor Assembly
13
WP3196557 Whirlpool Screw
15
WP9757706 Whirlpool Door Inner Glass
16
4457114 Whirlpool Oven Heat Shield
17
WP4449263 Whirlpool Inner Door Glass
18
WP4451722 Whirlpool Door Insulation Assembly
19
WP9759413 Whirlpool Door Liner
20
Drawer Assy
21
WP3196037 Whirlpool Leveling Foot
21
WP4449743 Whirlpool Screw
22
Panel, Drawer
23
Retainer, Door
24
Front, Drawer (White)
24
Front, Drawer (S.Steel)
24
Front, Drawer (Black)
25
WP8533988 Whirlpool Screw Fastener
25
Bracket, Handle (L.Hand)
25
Bracket, Handle (R.Hand)
26
Handle, Drawer (White)
26
Handle, Drawer (S.Steel)
26
Handle, Drawer (Black)
32
Guide, Roller
33
Shield, Heat Top
←
