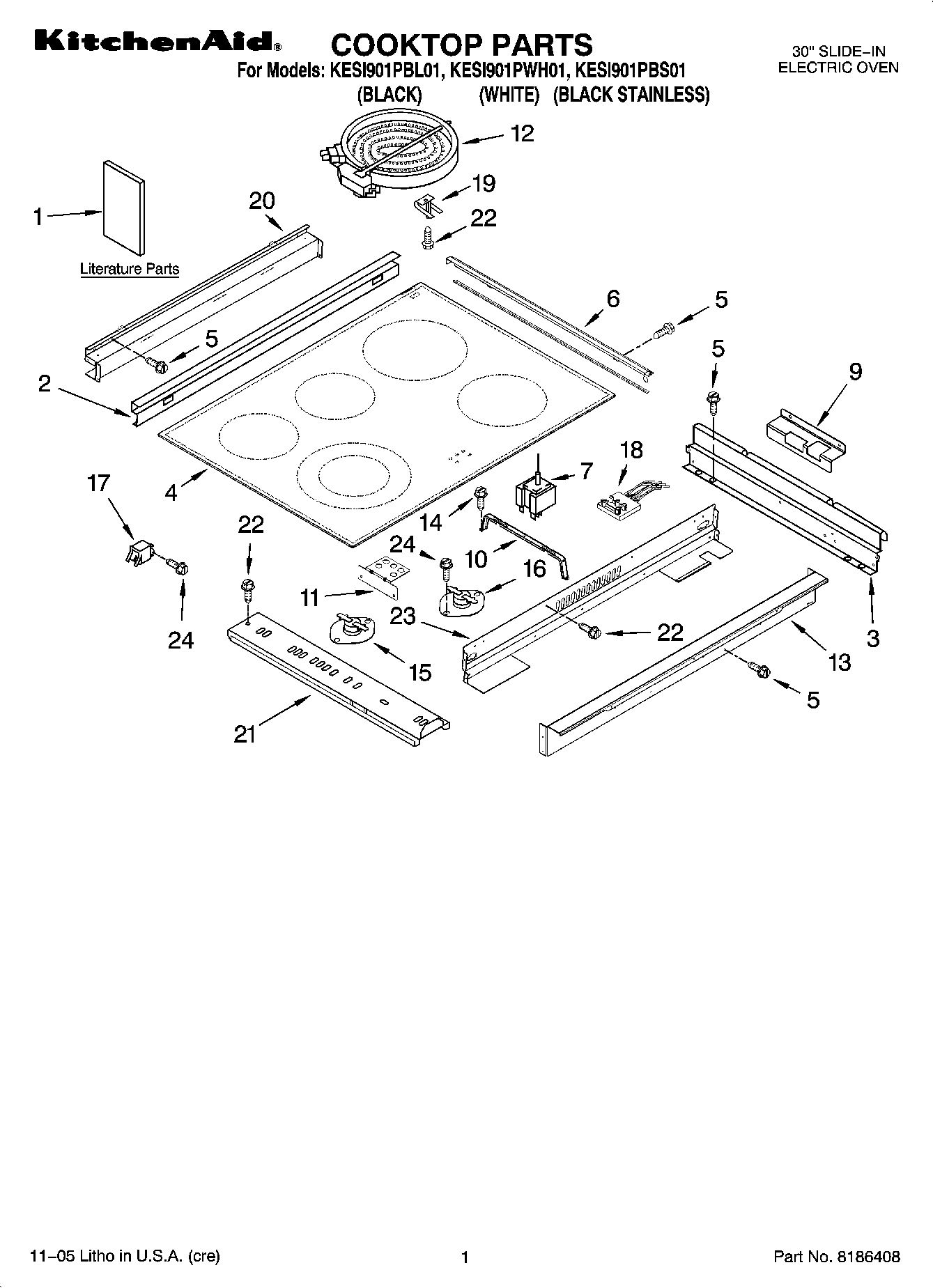

KESI901PBL01 01 – COOKTOP PARTSadmin2025-04-26T09:46:09+00:00KESI901PBL01 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Safe Cooking Tips (French) |
| 1 | Tech Sheet |
| 1 | Guide, Easy Set |
| 1 | Use & Care Guide |
| 1 | Installation Instructions |
| 1 | Anti-Tip Instruct. |
| 1 | Safe Cooking Tips |
| 2 | Trim. Cooktop Rear (S.Steel) |
| 2 | Trim, Cooktop Rear (Black) |
| 2 | Trim, Cooktop Rear (White) |
| 3 | Bracket, Mounting |
| 4 | Cooktop (Black Stainless) |
| 4 | Cooktop (Black) |
| 4 | Gasket |
| 4 | Cooktop (White) |
| 5 | Screw (4) |
| 6 | Trim-CkTop, SI (Black RH) |
| 6 | Trim-CkTop, SI (S.Steel RH) |
| 6 | Trim-CkTop, SI (Black LH) |
| 6 | Trim-CkTop, SI (S.Steel LH) |
| 6 | Trim-CkTop, SI (White LH) |
| 6 | Trim-CkTop, SI (White RH) |
| 7 | Switch, Infinite (Dual) |
| 7 | WP9750638 Whirlpool Infinite Switch |
| 7 | WP9750639 Whirlpool Infinite Switch |
| 7 | WP9750641 Whirlpool Infinite Switch |
| 9 | Support (L.Hand) |
| 9 | Support (R.Hand) |
| 10 | WP9756821 Whirlpool Support |
| 11 | BRACKET |
| 12 | W10823697 Whirlpool Surface Element |
| 12 | WP8523700 Whirlpool Surface Element |
| 12 | W10823699 Whirlpool Right Front Surface Element |
| 12 | W10823698 Whirlpool Surface Element Right Rear |
| 12 | W10823692 Whirlpool Dual Radiant Element |
| 13 | Bracket, Front Support |
| 14 | WP4449809 Whirlpool Screw |
| 15 | Thermostat SPST (205) |
| 16 | WP9759944 Whirlpool Thermostat |
| 17 | WP8523265 Whirlpool Indicator Light |
| 18 | Light, Hot Surface |
| 19 | 9759094 Whirlpool Spring |
| 20 | Bracket, Rear Sprt |
| 21 | Rail, Element (Side (1)) |
| 21 | Rail, Element (2) (Center (1)) |
| 21 | Rail, Element (2) (Side (3)) |
| 22 | WP3196557 Whirlpool Screw |
| 23 | Cover, Cktp Rear |
| 24 | W10491985 Whirlpool Screw |
