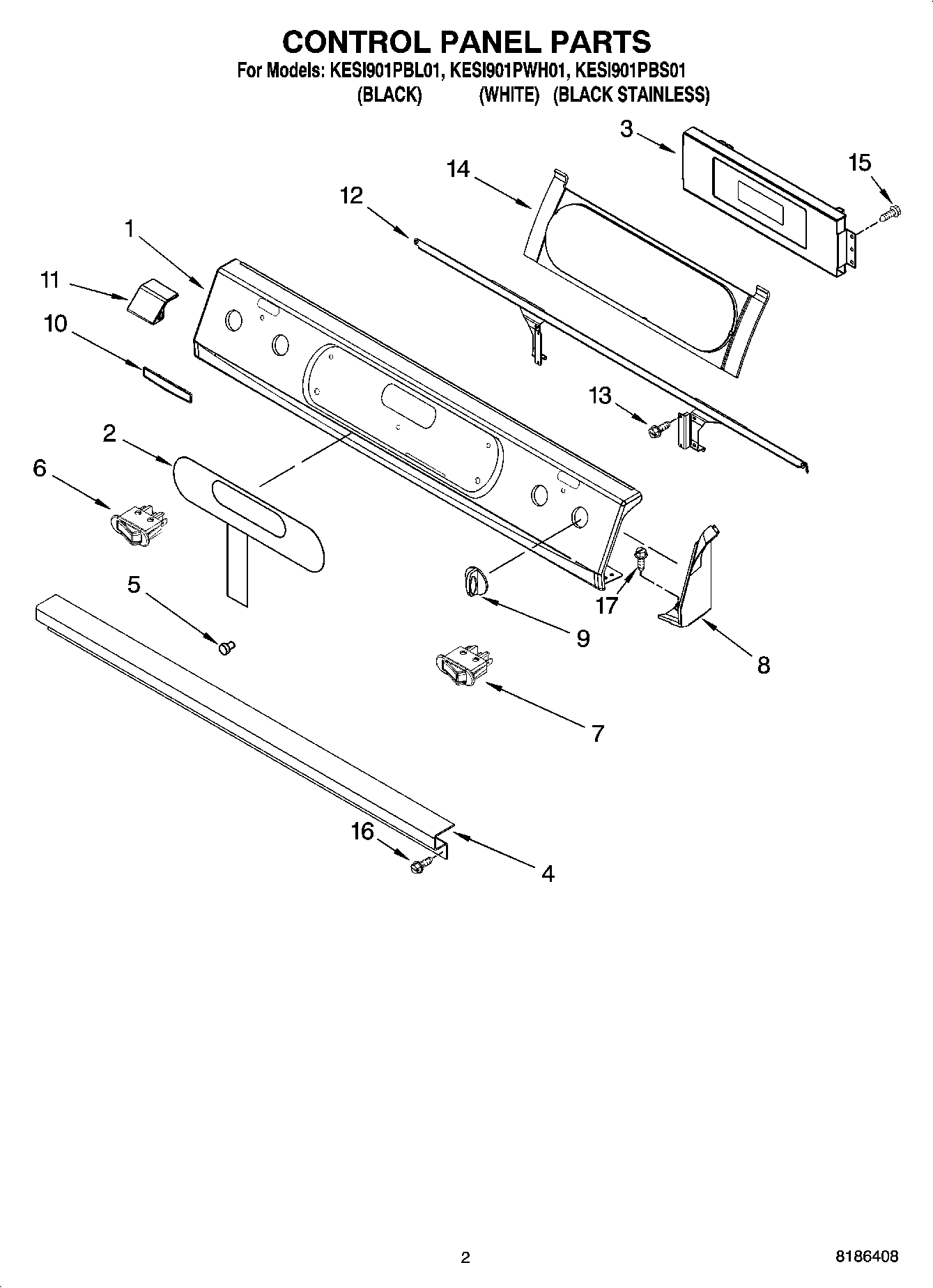

KESI901PBL01 02 – CONTROL PANEL PARTS

KESI901PBL01 02 – CONTROL PANEL PARTS

Written by

in

KESI901PBL01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (Black)
1Control Panel (S.Steel)
1Control Panel (White)
2Membrane Switch (White)
2Membrane Switch (Black)
3Control, Migration
4Bracket, Console
5WP3196068 Whirlpool Light Lens
6Switch, Warming (White)
6Switch, Warming (Cashmere Metalic)
6WPW10163902 Whirlpool Switch
7WPW10163899 Whirlpool Switch
7Switch, Simmer (White)
8Endcap (Black RH)
8Endcap (White RH)
8Endcap (Black LH)
8Endcap (Cashmere Metal LH)
8Endcap (White LH)
8Endcap (Cashmere Metal RH)
9Knob (Black)
10Nameplate (White)
10Nameplate (Biscuit)
10Nameplate (Black)
11Insert, Console (L.Hand)
11Insert, Console (R.Hand)
12Bracket, User Interface
13WP486579 Whirlpool Air Conditioner Screw
14Insert, Membrane
15Screw
16WP3196557 Whirlpool Screw
173196172 Whirlpool Oven Screw
