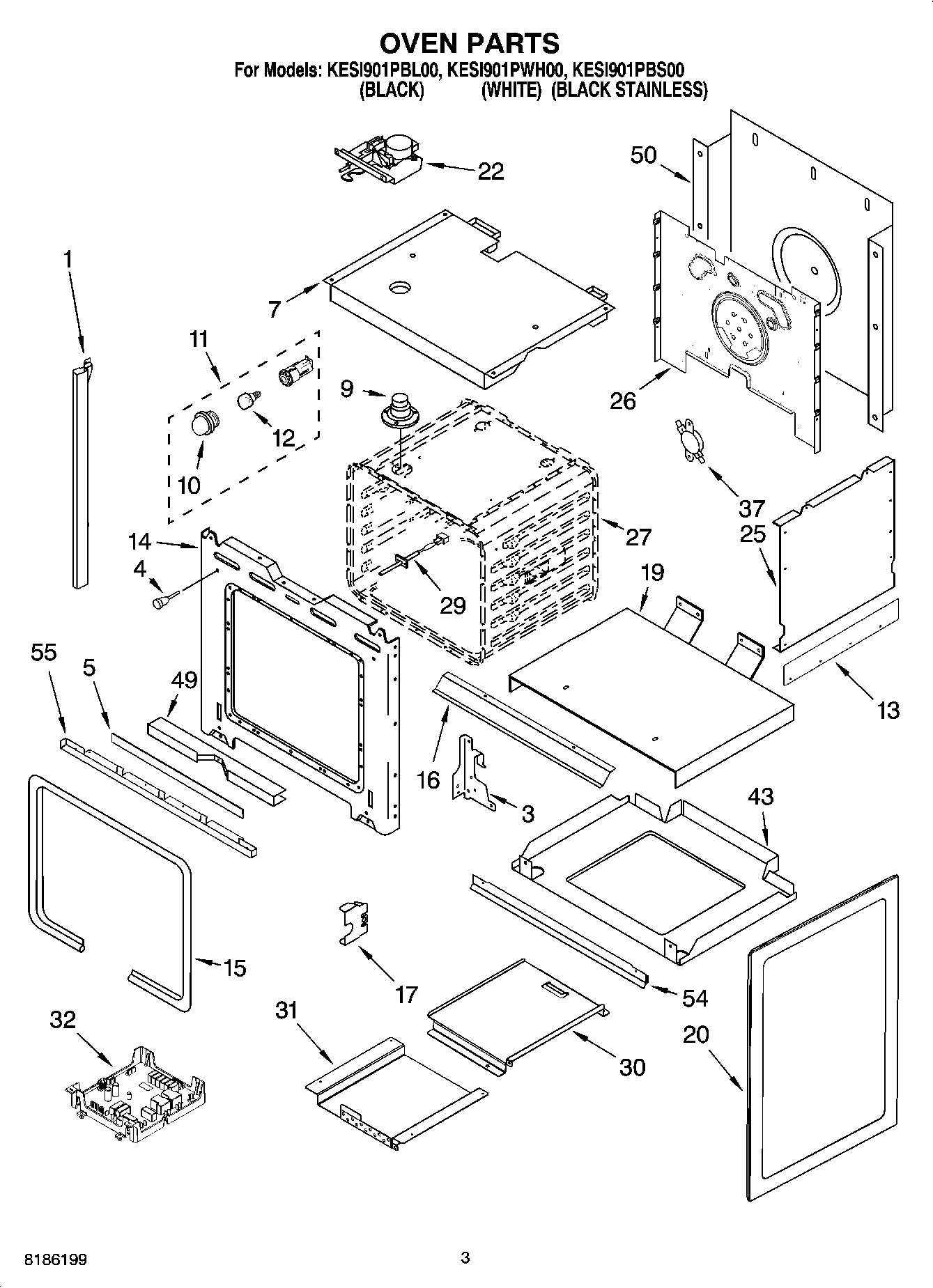

KESI901PBS00 03 – OVEN PARTS

Products

Position	Product
1	WP3400832 Whirlpool Screw
1	Trim, Side (Left Hand) (S.Steel)
1	Trim, Side (Right Hand) (Black)
1	Trim, Side (Right Hand) (S.Steel)
1	Trim, Side (Right Hand) (White)
1	Trim, Side (Left Hand) (Black)
1	Trim, Side (Left Hand) (White)
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	Insulation, Bottom Vent
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Shield, Heat
13	WP4449743 Whirlpool Screw
14	Screw
14	WP4450118 Whirlpool Nut
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
16	Deflector, Vent Bottom
17	4452152 Whirlpool Oven Mounting Bracket
19	Support, Insulation
20	Body, Side (White)
20	Body, Side (Black)
22	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Bracket, GOC
31	W10083460 Whirlpool Slide Assembly
32	Central, Appliance
37	Screw (4)
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4449809 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
54	Ve
54	Vent, Bottom Upper (Black)
54	Vent, Bottom Upper (S. Steel)
55	FOLLOWING PARTS NOT ILLUSTRATED INSU
55	WPL 9756470
55	WPL 9756817
55	WPL 9756485WH
55	WPL 9756485SS
55	WPL 9756485BL
