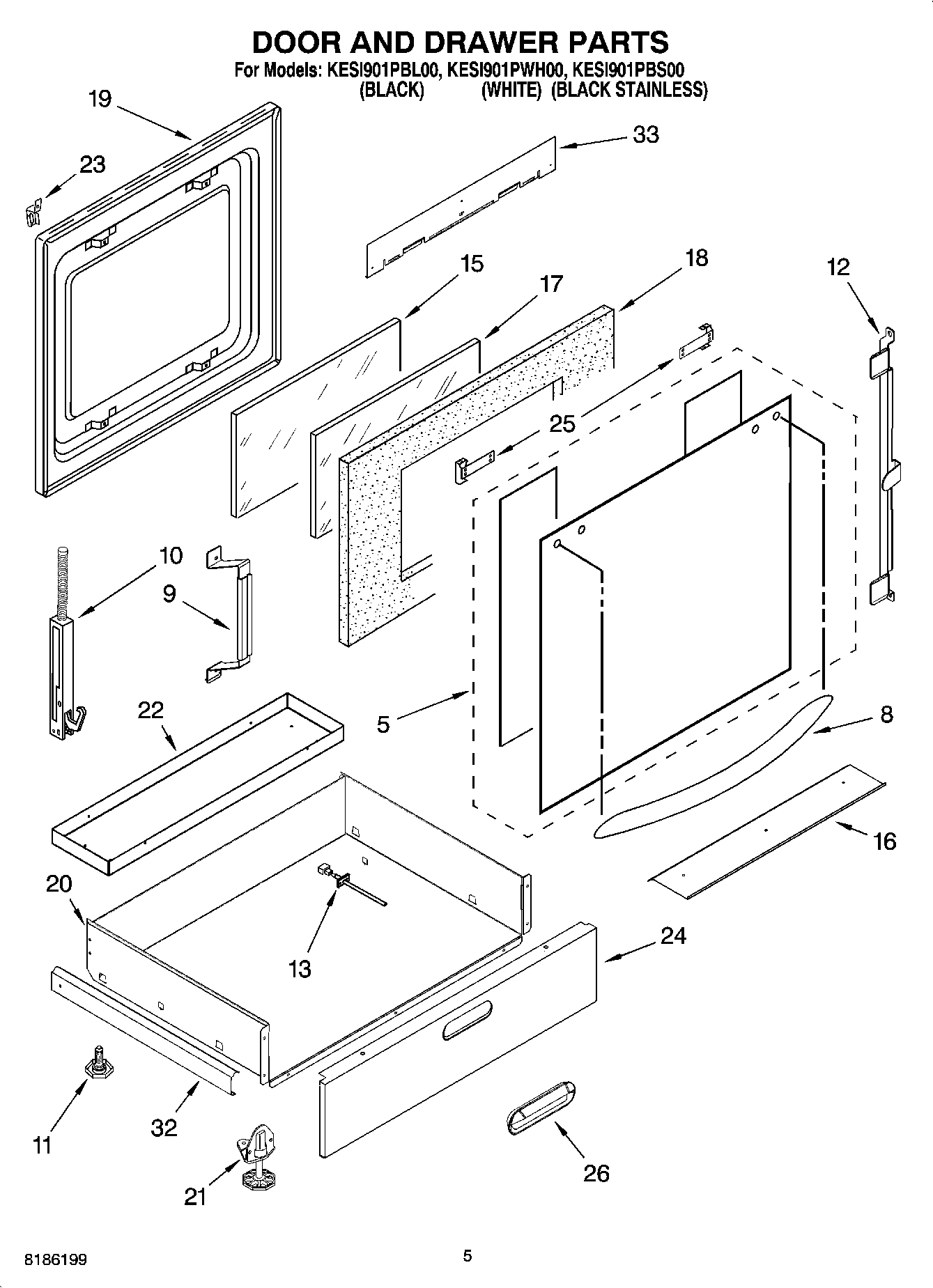

KESI901PBS00 04 – DOOR AND DRAWER PARTSadmin2025-04-26T09:46:34+00:00KESI901PBS00 04 – DOOR AND DRAWER PARTS
Products
| Position | Product |
|---|
| 5 | Glass, Door Front (White) |
| 5 | Glass, Door Front (S.Steel) |
| 5 | Glass, Door Front (Black) |
| 8 | Handle, Door (Black) |
| 8 | Handle, Door (White) |
| 9 | Bracket, Central |
| 10 | HINGE-DOOR LH/SS DOOR SPRING |
| 10 | WP9760579 Whirlpool Right Door Hinge |
| 11 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 12 | WP9759229 Whirlpool Mounting Bracket |
| 13 | WP8274149 Whirlpool Sensor Assembly |
| 13 | WP3196557 Whirlpool Screw |
| 15 | WP9757706 Whirlpool Door Inner Glass |
| 16 | 4457114 Whirlpool Oven Heat Shield |
| 17 | WP4449263 Whirlpool Inner Door Glass |
| 18 | WP4451722 Whirlpool Door Insulation Assembly |
| 19 | WP9759413 Whirlpool Door Liner |
| 20 | Drawer Assy |
| 21 | WP3196037 Whirlpool Leveling Foot |
| 21 | WP4449743 Whirlpool Screw |
| 22 | Panel, Drawer |
| 23 | Retainer, Door |
| 24 | Front, Drawer (White) |
| 24 | Front, Drawer (S.Steel) |
| 24 | Front, Drawer (Black) |
| 25 | WP8533988 Whirlpool Screw Fastener |
| 25 | Bracket, Handle (L.Hand) |
| 25 | Bracket, Handle (R.Hand) |
| 26 | Handle, Drawer (White) |
| 26 | Handle, Drawer (S.Steel) |
| 26 | Handle, Drawer (Black) |
| 32 | Guide, Roller |
| 33 | Shield, Heat Top |
