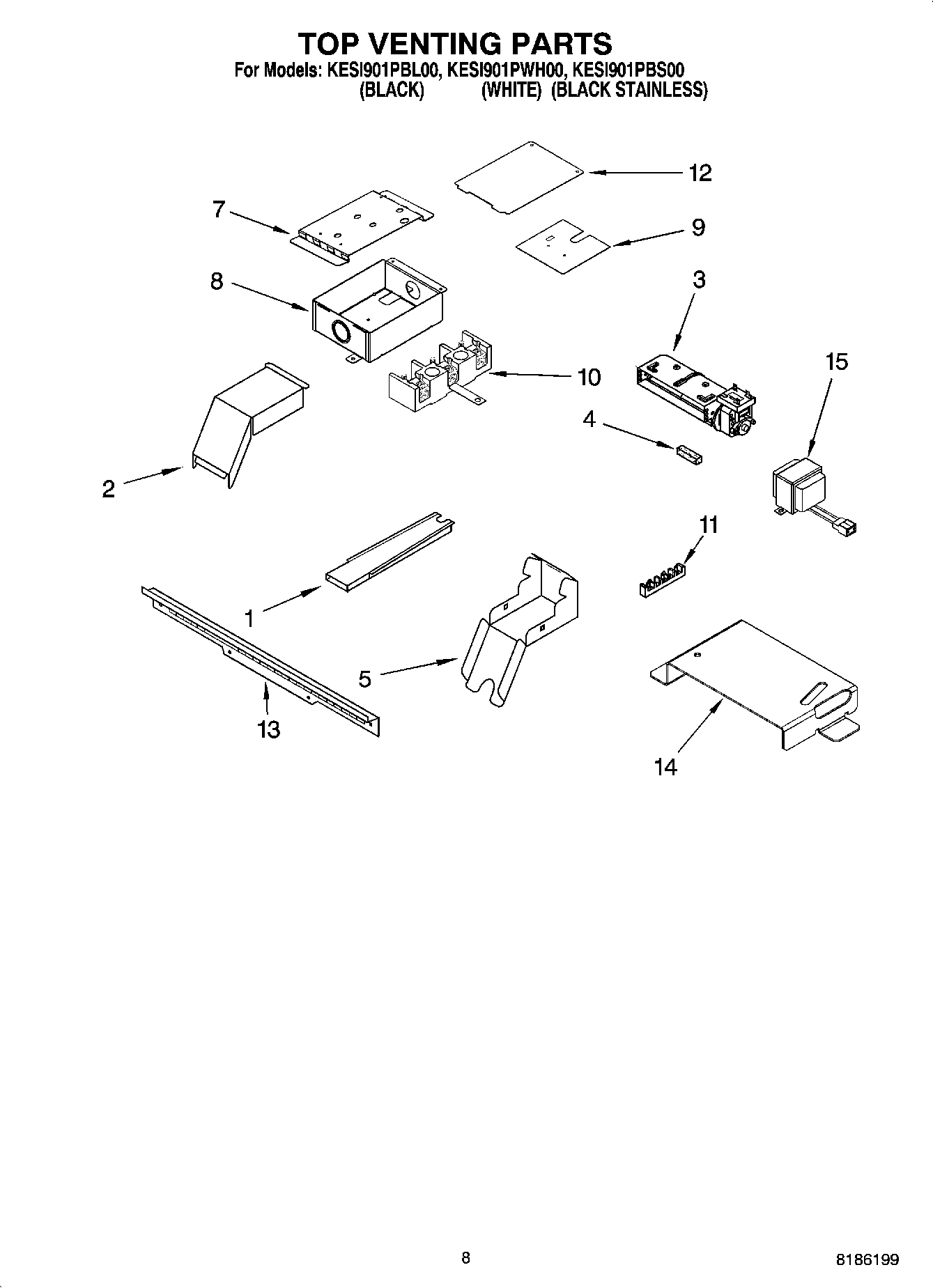

KESI901PBS00 06 – TOP VENTING PARTS, OPTIONAL PARTS

KESI901PBS00 06 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KESI901PBS00 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI86676A4
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL 591014
WPL ARI86675A7
WPL ARI86674A1
WPL 9759823
WPL 9759623
Ha
9757778 Whirlpool Oven Bushing
261900 Whirlpool Microwave Spray
WPL ARI86677A6
242831 Whirlpool Oven Wire
Conduit
Harness, Wire
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
WP3400015 Whirlpool Screw
Wire, 25` Roll (Red 14 Ga.)
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP112432 Whirlpool Nut Assembly
WP482338 Whirlpool Refrigerator Adhesive
814381 Whirlpool Pin
Spacer, Harness
W11447673 Whirlpool Range Tip Anchor
Clip, Ground Wire
WP4448950 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
14451759 Whirlpool Oven Exhaust Vent
1Screw
24455178 Whirlpool Oven Top Elbow
3W10810687 Whirlpool Blower Assembly
3WP4455352 Whirlpool Mounting Bracket
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
7Bracket, Term.Box
8W10115858 Whirlpool Box Terminal
99759721 Whirlpool Oven Insulator
10WP9761958 Whirlpool Range Terminal Block
11Screw
11WP8203546 Whirlpool Terminal Block
12Cover, Term Box
12W10491985 Whirlpool Screw
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14WP9757829 Whirlpool Mounting Bracket
15Transformer
