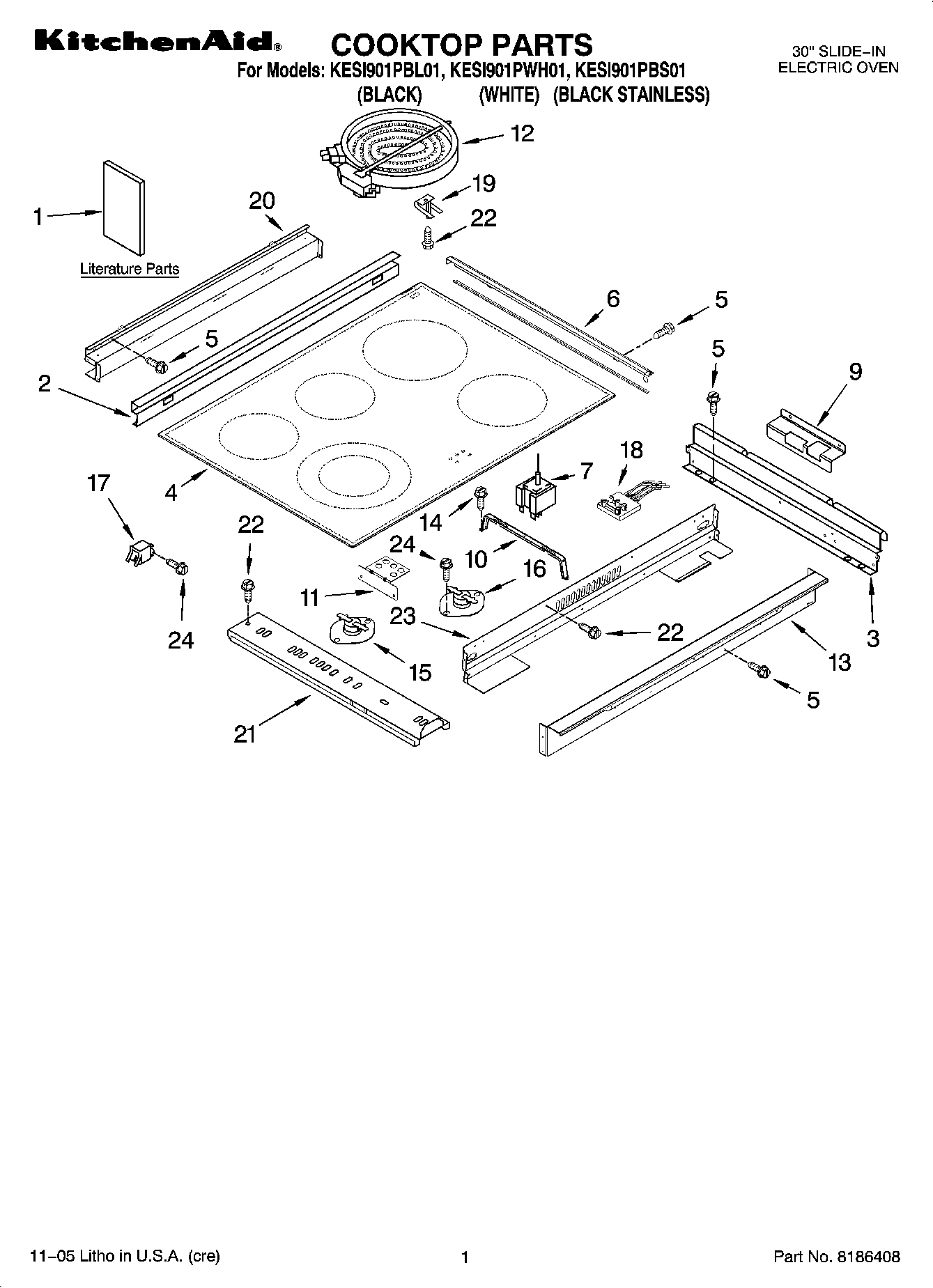

KESI901PBS01 01 – COOKTOP PARTS

KESI901PBS01 01 – COOKTOP PARTS

Written by

in

KESI901PBS01 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Tech Sheet
1Guide, Easy Set
1Use & Care Guide
1Installation Instructions
1Anti-Tip Instruct.
1Safe Cooking Tips
2Trim. Cooktop Rear (S.Steel)
2Trim, Cooktop Rear (Black)
2Trim, Cooktop Rear (White)
3Bracket, Mounting
4Cooktop (Black Stainless)
4Cooktop (Black)
4Gasket
4Cooktop (White)
5Screw (4)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Black LH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (White RH)
7Switch, Infinite (Dual)
7WP9750638 Whirlpool Infinite Switch
7WP9750639 Whirlpool Infinite Switch
7WP9750641 Whirlpool Infinite Switch
9Support (L.Hand)
9Support (R.Hand)
10WP9756821 Whirlpool Support
11BRACKET
12W10823697 Whirlpool Surface Element
12WP8523700 Whirlpool Surface Element
12W10823699 Whirlpool Right Front Surface Element
12W10823698 Whirlpool Surface Element Right Rear
12W10823692 Whirlpool Dual Radiant Element
13Bracket, Front Support
14WP4449809 Whirlpool Screw
15Thermostat SPST (205)
16WP9759944 Whirlpool Thermostat
17WP8523265 Whirlpool Indicator Light
18Light, Hot Surface
199759094 Whirlpool Spring
20Bracket, Rear Sprt
21Rail, Element (Side (1))
21Rail, Element (2) (Center (1))
21Rail, Element (2) (Side (3))
22WP3196557 Whirlpool Screw
23Cover, Cktp Rear
24W10491985 Whirlpool Screw
