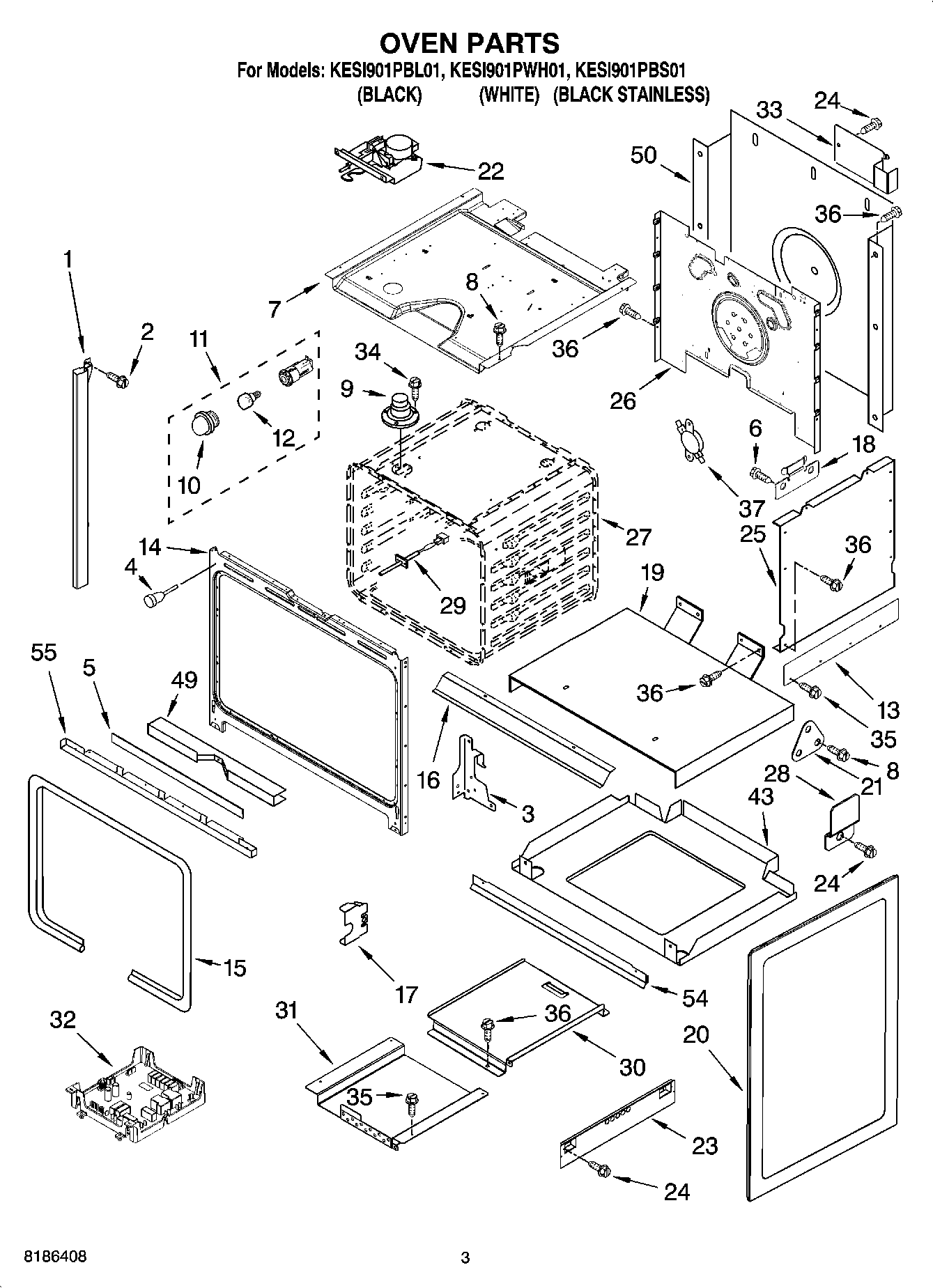

KESI901PBS01 03 – OVEN PARTS

Products

Position	Product
1	Trim, Side (Left Hand) (White)
1	Trim, Side (Left Hand) (Black)
1	Trim, Side (Right Hand) (White)
1	Trim, Side (Right Hand) (S.Steel)
1	Trim, Side (Right Hand) (Black)
1	Trim, Side (Left Hand) (S.Steel)
2	WP3400832 Whirlpool Screw
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	Insulation, Bottom Vent
6	W10491985 Whirlpool Screw
7	Top Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Shield, Heat
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
16	Deflector, Vent Bottom
17	4452152 Whirlpool Oven Mounting Bracket
18	WP9757685 Whirlpool Guide Panel
19	Support, Insulation
20	Body, Side (White)
20	Body, Side (Black)
21	BRACKET,SIDE PANEL
22	WP9760889 Whirlpool Door Latch
23	Brace, Side Panel
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	Clip, Side Panel
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Bracket, GOC
31	W10083460 Whirlpool Slide Assembly
32	Central, Appliance
33	Cover, Rear Standoff
34	SCREW
35	WP3196557 Whirlpool Screw
36	WP4449809 Whirlpool Screw
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
54	Vent, Bottom Upper (S. Steel)
54	Vent, Bottom Upper (Black)
54	Ve
55	WPL 9756817
55	WPL 9756485WH
55	WPL 9756485SS
55	WPL 9756485BL
55	WPL 9756470
55	WPL ARI86679A3
