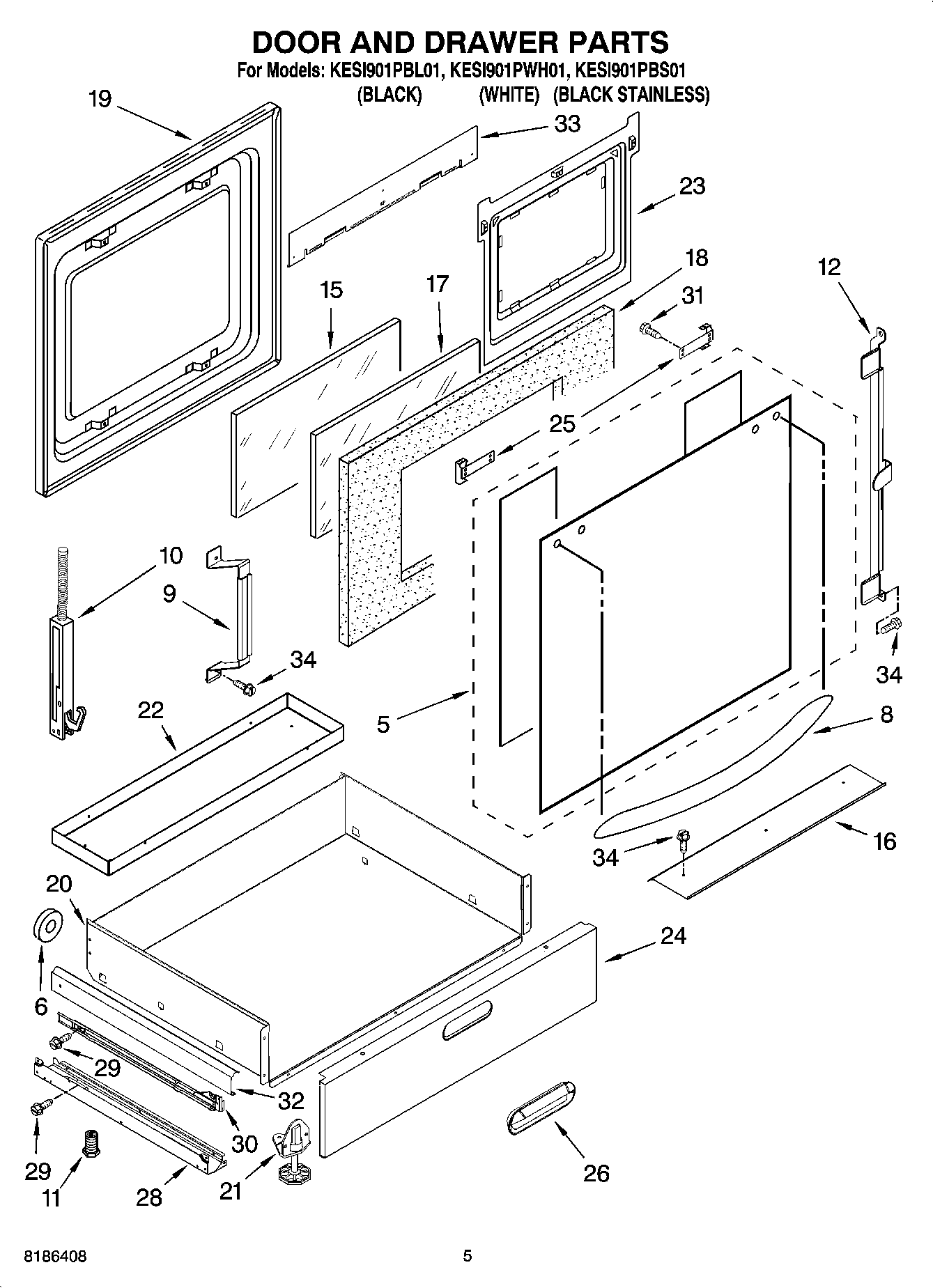

KESI901PBS01 04 – DOOR AND DRAWER PARTS

Products

Position	Product
5	Glass, Door Front (Brushed Stainless)
5	Glass, Door Front (Black)
5	Glass, Door Front (White)
6	814229 Whirlpool Primary Roller
8	Handle, Door (Black)
8	Handle, Door (White)
9	Bracket, Central
10	WP9760579 Whirlpool Right Door Hinge
10	HINGE-DOOR LH/SS DOOR SPRING
11	WPW10058460 Whirlpool Appliance Levelling Leg
12	WP9759229 Whirlpool Mounting Bracket
15	WP9757706 Whirlpool Door Inner Glass
16	4457114 Whirlpool Oven Heat Shield
17	WP4449263 Whirlpool Inner Door Glass
18	WP4451722 Whirlpool Door Insulation Assembly
19	WP9759413 Whirlpool Door Liner
20	Drawer
21	WP3196037 Whirlpool Leveling Foot
22	Panel, Drawer
23	WP4457132 Whirlpool Retainer
24	Front, Drawer (Black)
24	Front, Drawer (S.Steel)
24	Front, Drawer (White)
25	Bracket, Handle (R.Hand)
25	Bracket, Handle (L.Hand)
26	Handle, Drawer (White)
26	Handle, Drawer (S.Steel)
26	Handle, Drawer (Black)
28	Side, Base (L.Side)
28	Side, Base (R.Side)
29	WP3196557 Whirlpool Screw
30	Track, Drawer (R.Side)
30	Track, Drawer (L.Side)
31	WP8533988 Whirlpool Screw Fastener
32	Guide, Roller
33	Shield, Heat Top
34	WP4449809 Whirlpool Screw
