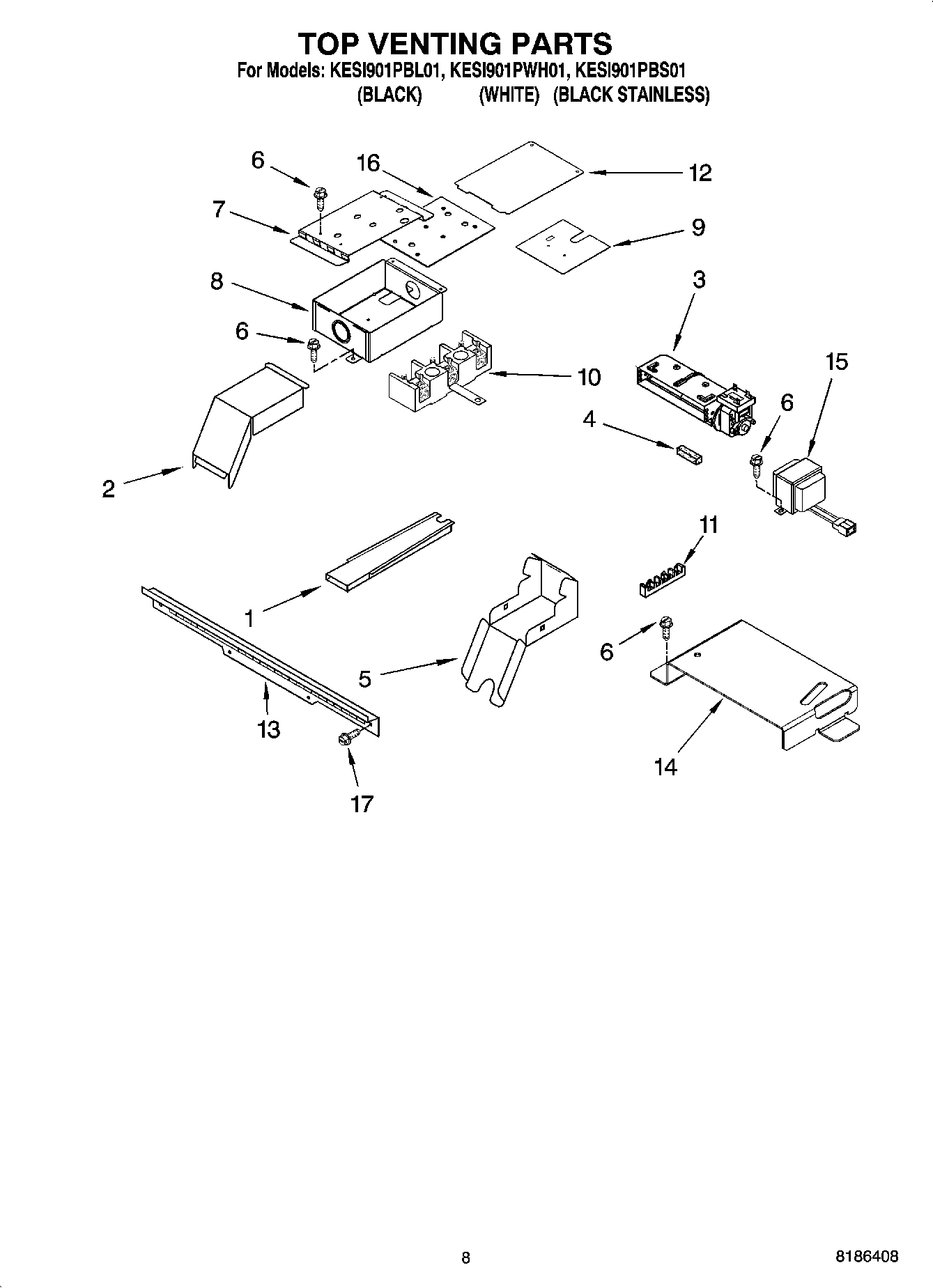

KESI901PBS01 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI86682A6
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	Wire (14 Ga. 200 c Brown)
	1
	WPL 591014
	WPL ARI86681A2
	WPL ARI86680A9
	Ha
	Harness, Wire Cooktop
	Harness, Wire (Switch, Elec)
	9757778 Whirlpool Oven Bushing
	261900 Whirlpool Microwave Spray
	WPL ARI86683A7
	242831 Whirlpool Oven Wire
	Conduit
	4450800 Whirlpool Oven Screw
	4448664 Whirlpool Oven Mounting Bracket
	350930 Whirlpool White Spray Paint
	Wire, 25“ Roll (White 14 GA.)
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	Harness, Wire
	Spacer, Harness
	Clip, Ground Wire
	WP4448950 Whirlpool Screw
	W11447673 Whirlpool Range Tip Anchor
	Wire, 25` Roll (Black 14 Ga.)
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
7	Bracket, Term.Box
8	W10115858 Whirlpool Box Terminal
9	9759721 Whirlpool Oven Insulator
10	WP9761958 Whirlpool Range Terminal Block
11	WP8203546 Whirlpool Terminal Block
12	Cover, Term Box
13	Vent, (Control Panel)
14	WP9757829 Whirlpool Mounting Bracket
15	Transformer
16	Insulation
17	WP4450038 Whirlpool Screw
