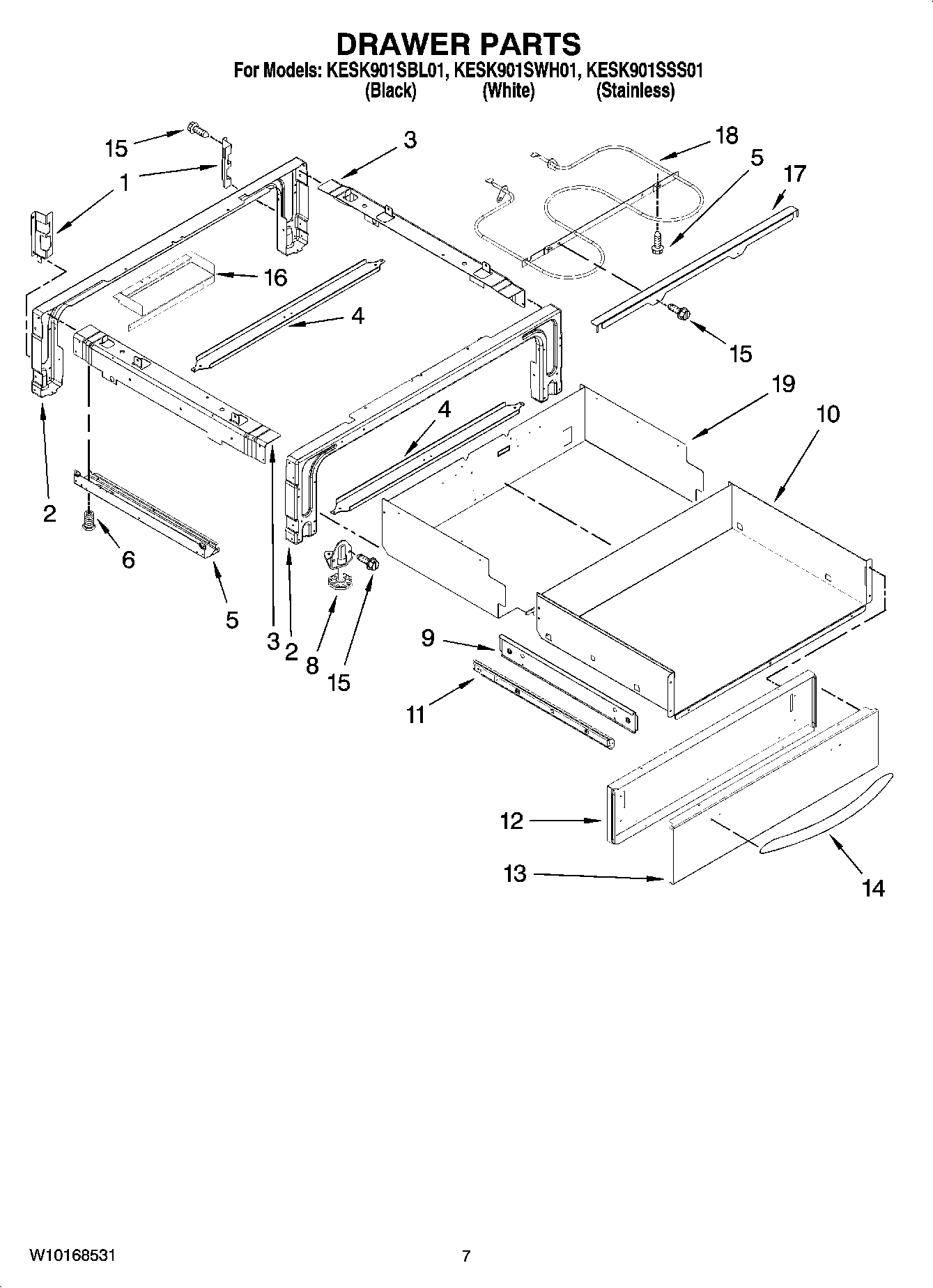

KESK901SBL01 04 – DRAWER PARTS

KESK901SBL01 04 – DRAWER PARTS

Written by

in

KESK901SBL01 04 – DRAWER PARTS

Products

PositionProduct
1Support (R.Hand)
1Support (L.Hand)
2Support, Front & Rear
3Brace, Drawer (Right)
3Brace, Drawer (Left)
4Brace, Base Front
5Side, Base (L.Side)
5Side, Base (R.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
8WP3196037 Whirlpool Leveling Foot
9Guide, Roller
10Drawer
11WPW10155632 Whirlpool Slide Drawer Assembly
11WPW10155633 Whirlpool Drawer Slide Rail
12Panel, Drawer
13Front, Drawer (White)
13Front, Drawer (Stainless)
13Front, Drawer (Black)
14Handle, Drawer (Black)
14Handle, Drawer (Stainless)
14Handle, Drawer (White)
15WP3196557 Whirlpool Screw
16Cover, Terminal
17Support, Element
189760775 Whirlpool Oven Warm Element
19Enclosure, Warming Drawer
