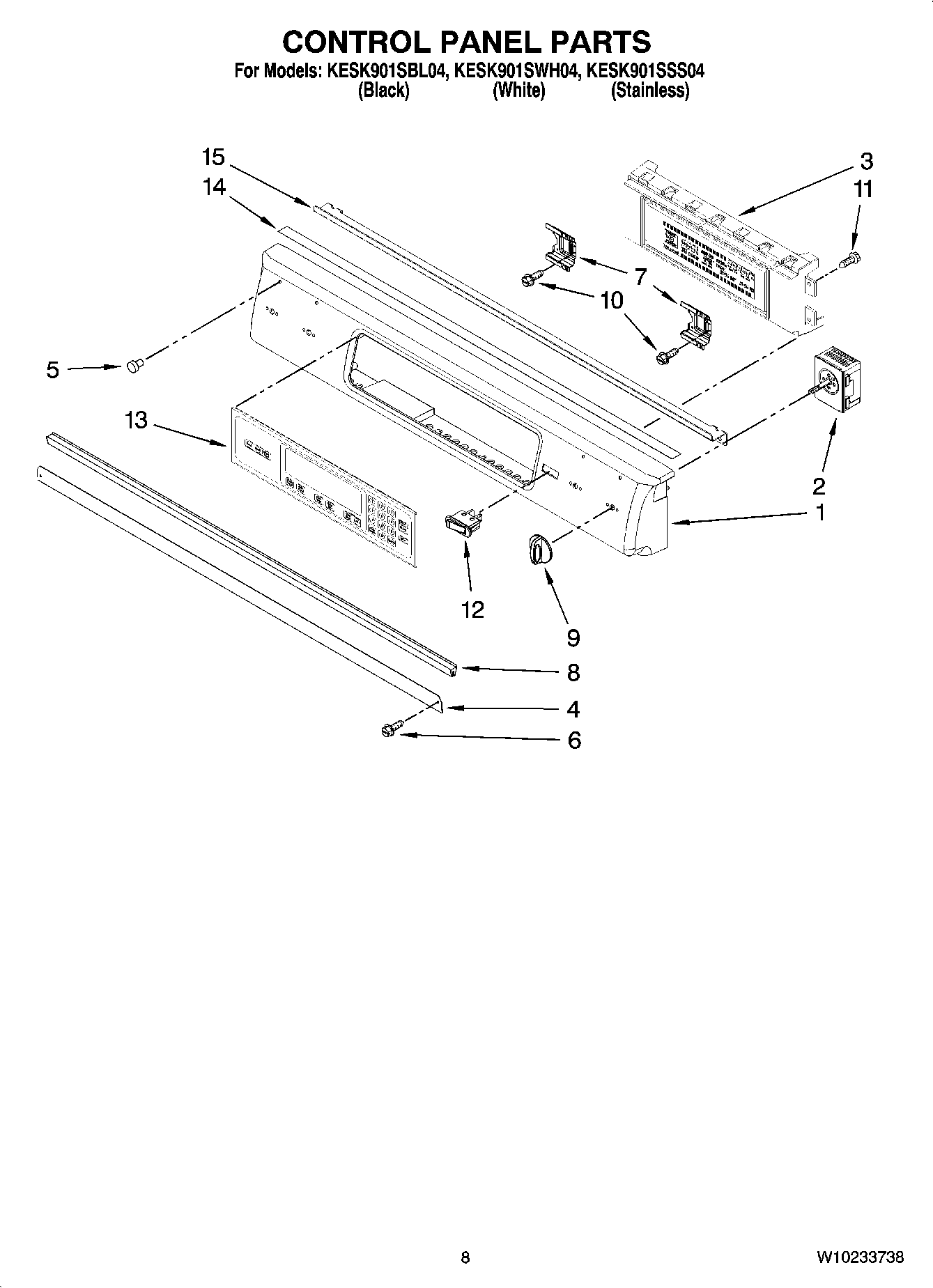

KESK901SBL04 05 – CONTROL PANEL PARTS

KESK901SBL04 05 – CONTROL PANEL PARTS

Written by

in

KESK901SBL04 05 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (Black)
1Control Panel (Stainless)
1Control Panel (White)
2WP4456027 Whirlpool Infinite Switch Right Rear
2WP3191050 Whirlpool Infinite Switch
2WP4454541 Whirlpool Infinite Switch
2WP3191049 Infinite Switch Left Rear Right Front
3WPW10206374-includeCORE Whirlpool WPW10206374 Washer Electronic Control Board + Core
4Shield, Console Vent
5WP3196068 Whirlpool Light Lens
6W10491985 Whirlpool Screw
7Bracket, Thermostat (2)
8W10116195 Whirlpool Vent Gasket
9Knob RF (White)
9W10156263 Whirlpool Knob
9W10156264 Whirlpool Knob Assembly
9W10193269 Whirlpool Knob
9W10193271 Whirlpool Knob Assembly
9Knob RF (Black)
10WP3196557 Whirlpool Screw
11Screw
12WPW10163899 Whirlpool Switch
12Switch, Simmer (White)
13Membrane, Switch
14W10110246 Whirlpool Gasket
15Bracket, Gasket
