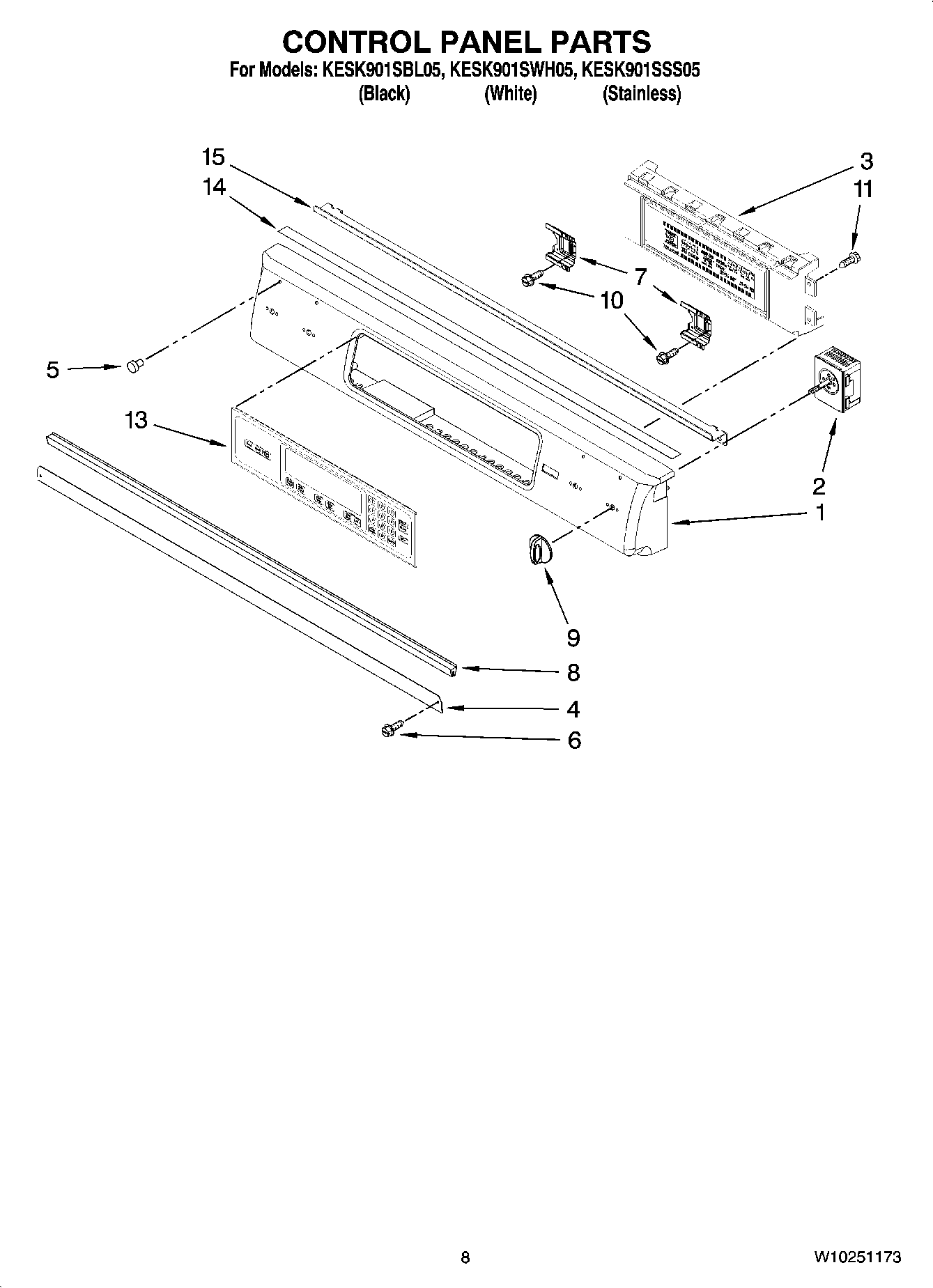

KESK901SBL05 05 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (Black)
1	Control Panel (Stainless)
1	Control Panel (White)
2	WP4456027 Whirlpool Infinite Switch Right Rear
2	WP3191050 Whirlpool Infinite Switch
2	WP4454541 Whirlpool Infinite Switch
2	WP3191049 Infinite Switch Left Rear Right Front
3	WPW10206374-includeCORE Whirlpool WPW10206374 Washer Electronic Control Board + Core
4	Shield, Console Vent
5	WP3196068 Whirlpool Light Lens
6	W10491985 Whirlpool Screw
7	Bracket, Thermostat (2)
8	W10116195 Whirlpool Vent Gasket
9	Knob RF (Black)
9	Knob RF (White)
9	W10193271 Whirlpool Knob Assembly
9	W10193269 Whirlpool Knob
9	W10156264 Whirlpool Knob Assembly
9	W10156263 Whirlpool Knob
10	WP3196557 Whirlpool Screw
11	Screw
13	Membrane, Switch
14	W10110246 Whirlpool Gasket
15	Bracket, Gasket
