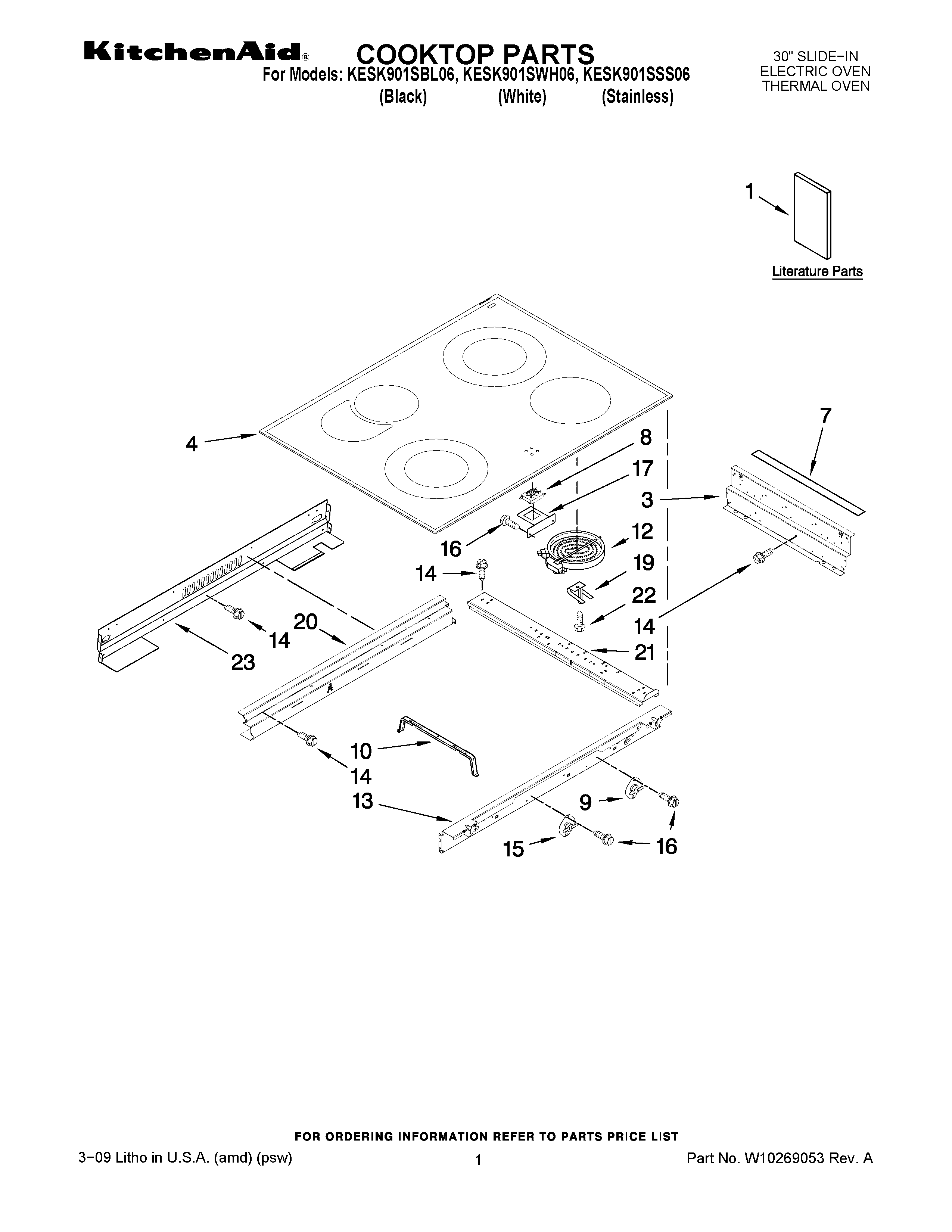

KESK901SBL06 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide
1Easy Set Guide
1Anti-Tip Instruct.
1INSTALLATION INSTRUCTIIONS
1Tech Sheet
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
3Frame, Cooktop Side
4W10285078 Whirlpool Cooktop
4Cooktop (White)
7Gasket (2)
8Light, Indicator (Hot Surface)
9WP9759944 Whirlpool Thermostat
10WP9756821 Whirlpool Support
12W10823698 Whirlpool Surface Element Right Rear
12W10823692 Whirlpool Dual Radiant Element
12W10823699 Whirlpool Right Front Surface Element
12W10823697 Whirlpool Surface Element
13Frame, Cooktop Front
14WP3196557 Whirlpool Screw
15Thermostat SPST (205)
16W10491985 Whirlpool Screw
17Bracket, Ind. Lamp
199759094 Whirlpool Spring
20Frame, Cooktop Rear
21Rail, Element (3)
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
