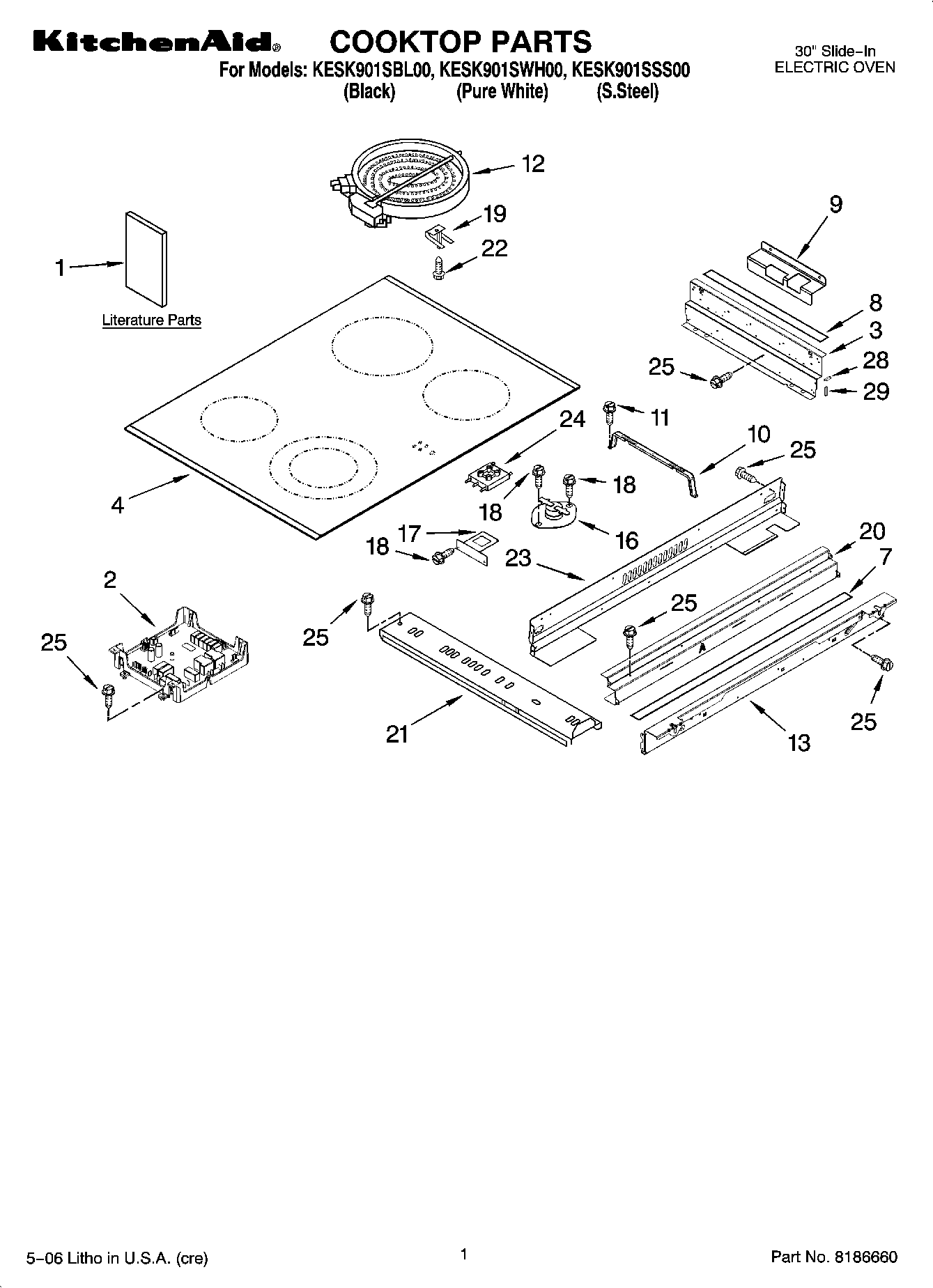

KESK901SSS00 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	Easy Set Guide
1	Safe Cooking Tips (French)
1	Anti-Tip Instruct.
1	Safe Cooking Tips
1	Tech Sheet
1	Installation Instructions
2	Central, Appliance
3	Frame, Cooktop Side
4	Cooktop (White)
4	W10285078 Whirlpool Cooktop
7	Gasket
8	Gasket (2)
9	Support (R.Hand)
9	Support (L.Hand)
10	WP9756821 Whirlpool Support
11	WP4449809 Whirlpool Screw
12	W10823699 Whirlpool Right Front Surface Element
12	W10823692 Whirlpool Dual Radiant Element
12	W10823697 Whirlpool Surface Element
12	W10823698 Whirlpool Surface Element Right Rear
13	Frame, Cooktop Front
16	WP9759944 Whirlpool Thermostat
17	Bracket, Ind. Lamp
18	W10491985 Whirlpool Screw
19	9759094 Whirlpool Spring
20	Frame, Cooktop Rear
21	Rail, Element (3)
22	WP486754 Whirlpool Compactor Screw
23	Cover, Cktp Rear
24	Light, Indicator (Hot Surface)
25	WP3196557 Whirlpool Screw
28	Grommet (19mm)
29	Grommet (38mm)
