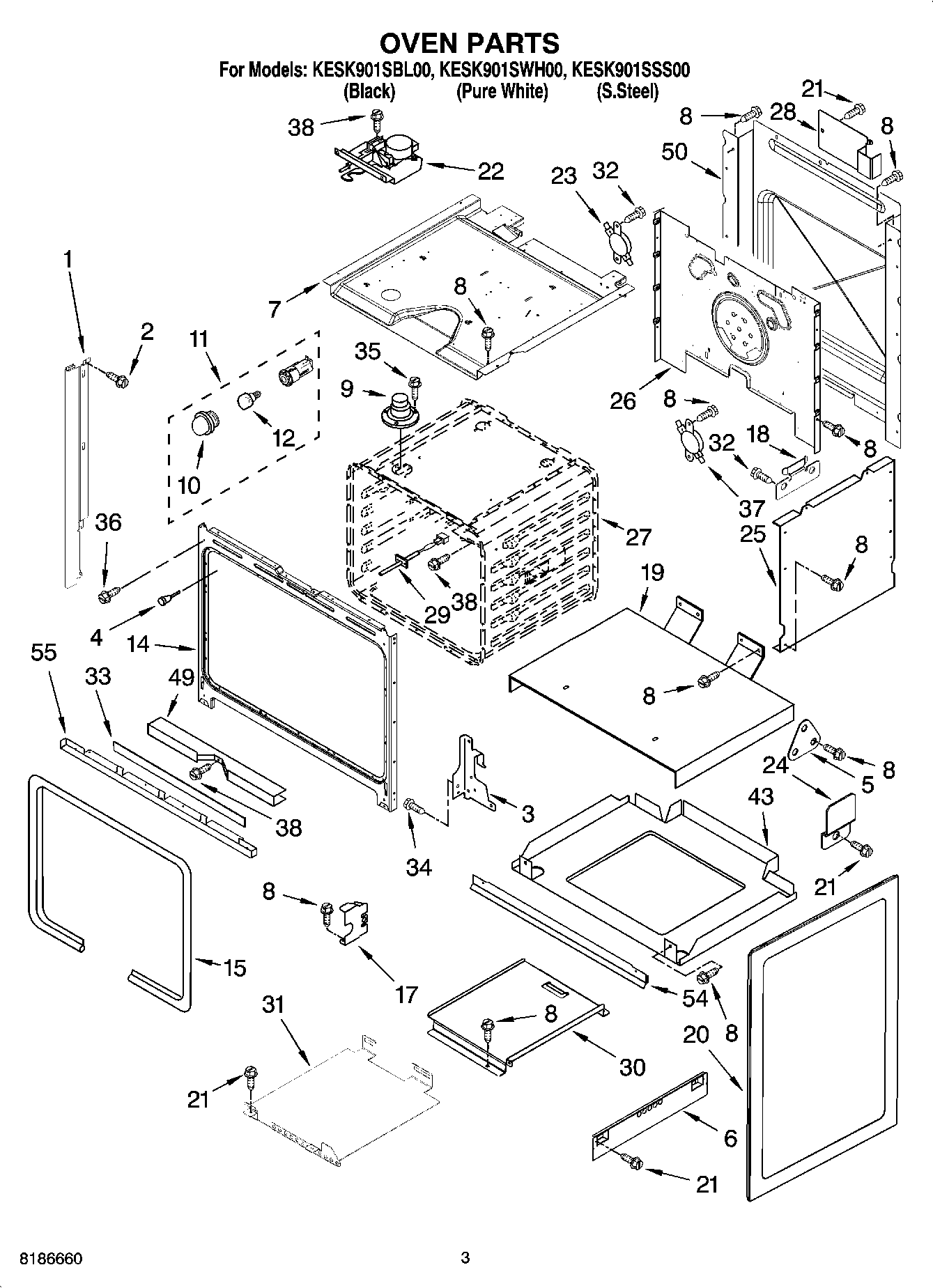

KESK901SSS00 03 – OVEN PARTS

Products

PositionProduct
1Trim, Side (Right Hand) (White)
1Trim, Side (Left Hand) (S.Steel)
1Trim, Side (Left Hand) (Black)
1Trim, Side (Left Hand) (White)
1Trim, Side (Right Hand) (Black)
1Trim, Side (Right Hand) (S.Steel)
2WP3400832 Whirlpool Screw
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
4W10105790 Whirlpool Bumper
5BRACKET,SIDE PANEL
6Brace, Side Panel
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19Support, Insulation
20BODY, SIDE BLACK
20Body, Side (White)
21WP3196557 Whirlpool Screw
22WP9760889 Whirlpool Door Latch
23Thermostat SPST (205)
24Clip, Side Panel
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28Cover, Rear Standoff
29WPW10131825 Whirlpool Oven Temperature Sensor
30Bracket, GOC
31W10083460 Whirlpool Slide Assembly
32W10491985 Whirlpool Screw
33Insulation, Bottom Vent
34WP4449743 Whirlpool Screw
35SCREW
36Screw
37WP9759242 Whirlpool Thermostat
38WP4449154 Whirlpool Screw
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WPL 9758583
54Vent, Bottom Upper (S. Steel)
54Ve
54Vent, Bottom Upper (Black)
55Vent, Bottom Lower (White)
55Vent, Bottom Lower (Black)
55WPL 9756470
55Trim, Btm Vent (S.Steel)
55WPL 9756817
55FOLLOWING PARTS NOT ILLUSTRATED INSULATION
