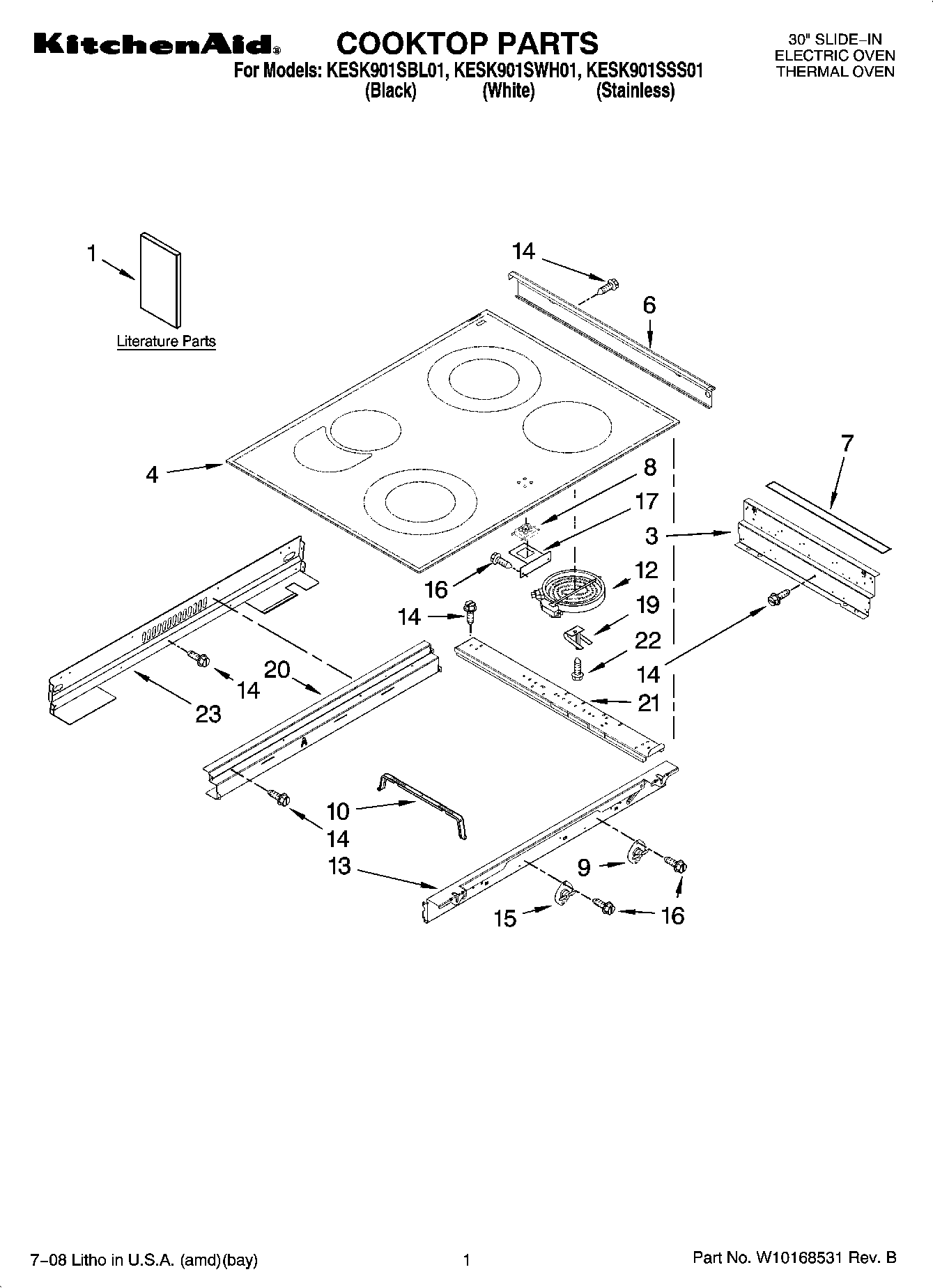

KESK901SSS01 01 – COOKTOP PARTSadmin2025-04-26T09:47:59+00:00KESK901SSS01 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care Guide |
| 1 | Easy Set Guide |
| 1 | INSTALLATION INSTRUCTIIONS |
| 1 | Anti-Tip Instruct. |
| 1 | Tech Sheet |
| 1 | Safer Cooking Tips (French) |
| 1 | SAFER COOKING TIPS (ENGLISH |
| 3 | Frame, Cooktop Side |
| 4 | Cooktop (White) |
| 4 | W10285078 Whirlpool Cooktop |
| 6 | Trim, Cooktop Left (Black) |
| 6 | Trim, Cooktop Right (White) |
| 6 | Trim, Cooktop Right (Black) |
| 6 | Trim, Cooktop Left (Stainless) |
| 6 | Trim, Cooktop Right (Stainless) |
| 6 | Trim, Cooktop Left (White) |
| 7 | Gasket (2) |
| 8 | Light, Indicator (Hot Surface) |
| 9 | WP9759944 Whirlpool Thermostat |
| 10 | WP9756821 Whirlpool Support |
| 12 | W10823698 Whirlpool Surface Element Right Rear |
| 12 | W10823692 Whirlpool Dual Radiant Element |
| 12 | W10823697 Whirlpool Surface Element |
| 12 | W10823699 Whirlpool Right Front Surface Element |
| 13 | Frame, Cooktop Front |
| 14 | WP3196557 Whirlpool Screw |
| 15 | Thermostat SPST (205) |
| 16 | W10491985 Whirlpool Screw |
| 17 | Bracket, Ind. Lamp |
| 19 | 9759094 Whirlpool Spring |
| 20 | Frame, Cooktop Rear |
| 21 | Rail, Element (3) |
| 22 | WP486754 Whirlpool Compactor Screw |
| 23 | Cover, Cktp Rear |
