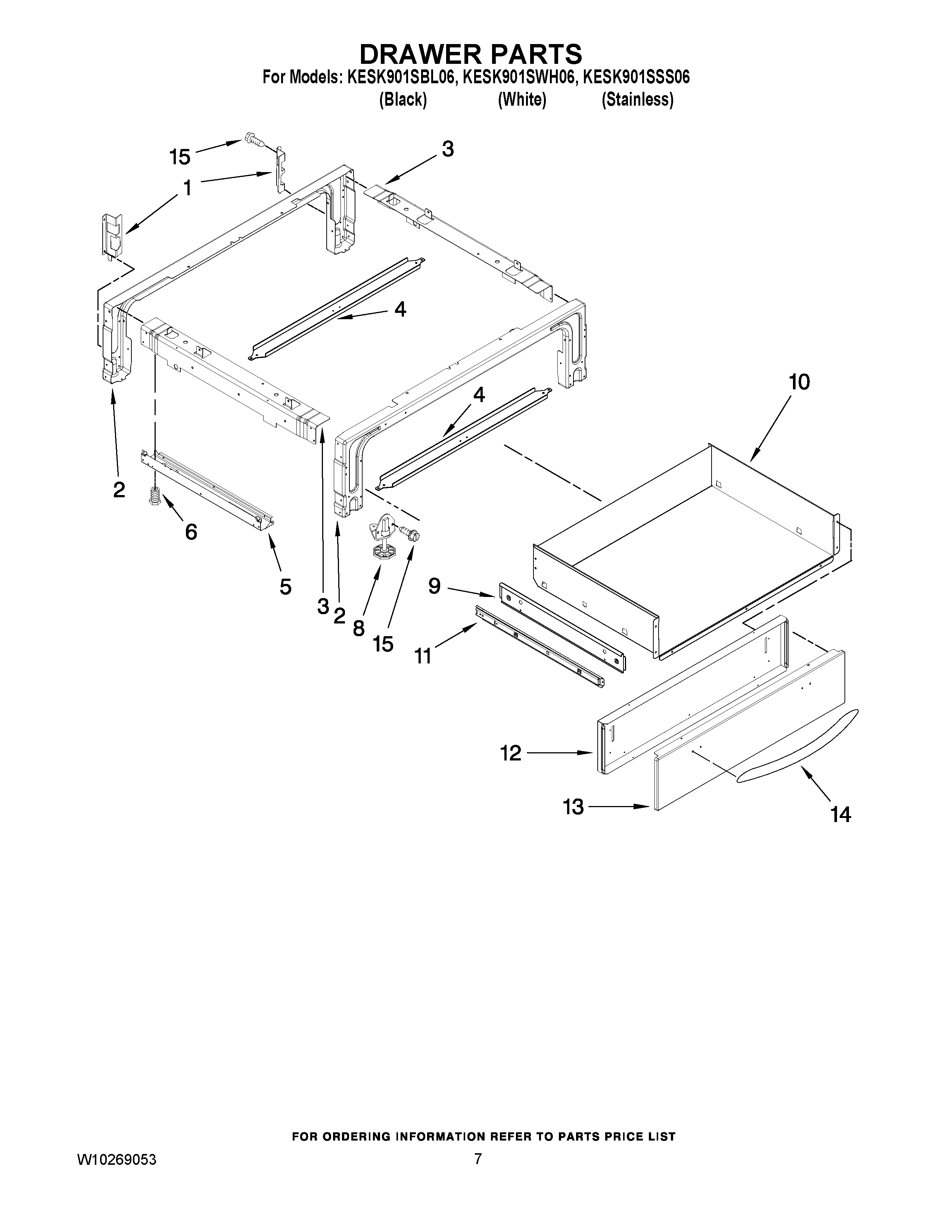

KESK901SSS06 04 – DRAWER PARTS

KESK901SSS06 04 – DRAWER PARTS

Written by

in

KESK901SSS06 04 – DRAWER PARTS

Products

PositionProduct
1Support (L.Hand)
1Support (R.Hand)
2Support, Front & Rear
3Brace, Drawer (Left)
3Brace, Drawer (Right)
4Brace, Base Front
5Side, Base (R.Side)
5Side, Base (L.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
8WP3196037 Whirlpool Leveling Foot
9Guide, Roller
10Drawer
11Drawer Slide (Right)
11Drawer Slide (Left)
12Panel, Drawer
13Front, Drawer (Stainless)
13Front, Drawer (White)
13Front, Drawer (Black)
14Handle, Drawer (Black)
14Handle, Drawer (Stainless)
14Handle, Drawer (White)
15WP3196557 Whirlpool Screw
