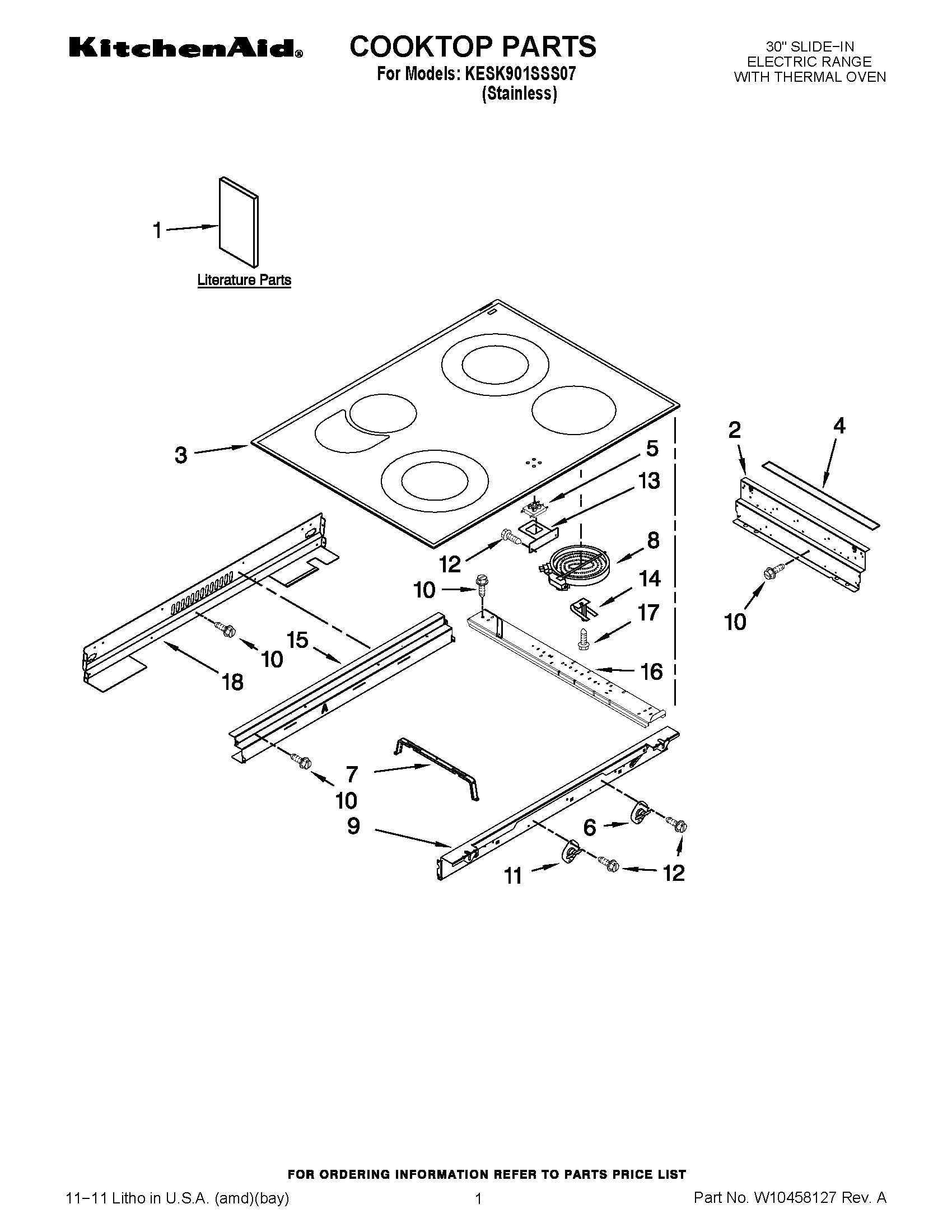

KESK901SSS07 01 – COOKTOP PARTS

KESK901SSS07 01 – COOKTOP PARTS

Written by

in

KESK901SSS07 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1Easy Set Guide
1INSTALLATION INSTRUCTIIONS
1USE & CARE GUIDE
1Anti-Tip Instruct.
2Frame, Cooktop Side
3W10285078 Whirlpool Cooktop
4Gasket (2)
5Light, Indicator (Hot Surface)
6WP9759944 Whirlpool Thermostat
7WP9756821 Whirlpool Support
8WPW10248258 Whirlpool Surface Element
8WP8273993 Whirlpool Surface Element
8ELMNT-SURF
8WP8523045 Whirlpool Range Left Rear / Right Front Surface Element 1500 W
9Frame, Cooktop Front
10WP3196557 Whirlpool Screw
11Thermostat SPST (205)
12W10491985 Whirlpool Screw
13Bracket, Ind. Lamp
149759094 Whirlpool Spring
15Frame, Cooktop Rear
16Rail, Element (3)
17WP486754 Whirlpool Compactor Screw
18Cover, Cktp Rear
