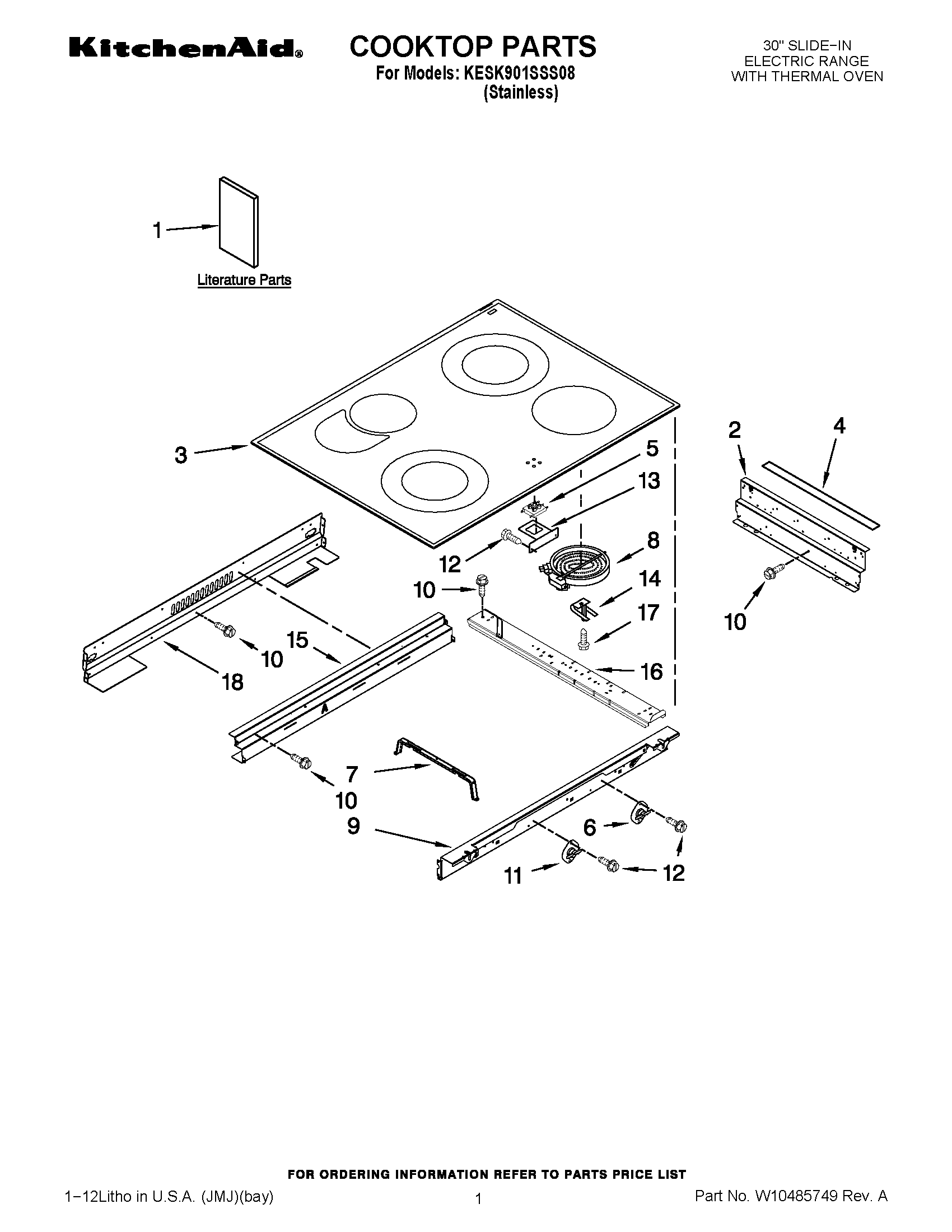

KESK901SSS08 01 – COOKTOP PARTS

KESK901SSS08 01 – COOKTOP PARTS

Written by

in

KESK901SSS08 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1Easy Set Guide
1USE & CARE GUIDE
1W11447673 Whirlpool Range Tip Anchor
1INSTALLATION INSTRUCTIIONS
2Frame, Cooktop Side
3W10285078 Whirlpool Cooktop
4Gasket (2)
5Light, Indicator (Hot Surface)
6WP9759944 Whirlpool Thermostat
7WP9756821 Whirlpool Support
8WPW10248258 Whirlpool Surface Element
8WP8273993 Whirlpool Surface Element
8ELMNT-SURF
8WP8523045 Whirlpool Range Left Rear / Right Front Surface Element 1500 W
9Frame, Cooktop Front
10WP3196557 Whirlpool Screw
11Thermostat SPST (205)
12W10491985 Whirlpool Screw
13Bracket, Ind. Lamp
149759094 Whirlpool Spring
15Frame, Cooktop Rear
16Rail, Element (3)
17WP486754 Whirlpool Compactor Screw
18Cover, Cktp Rear
